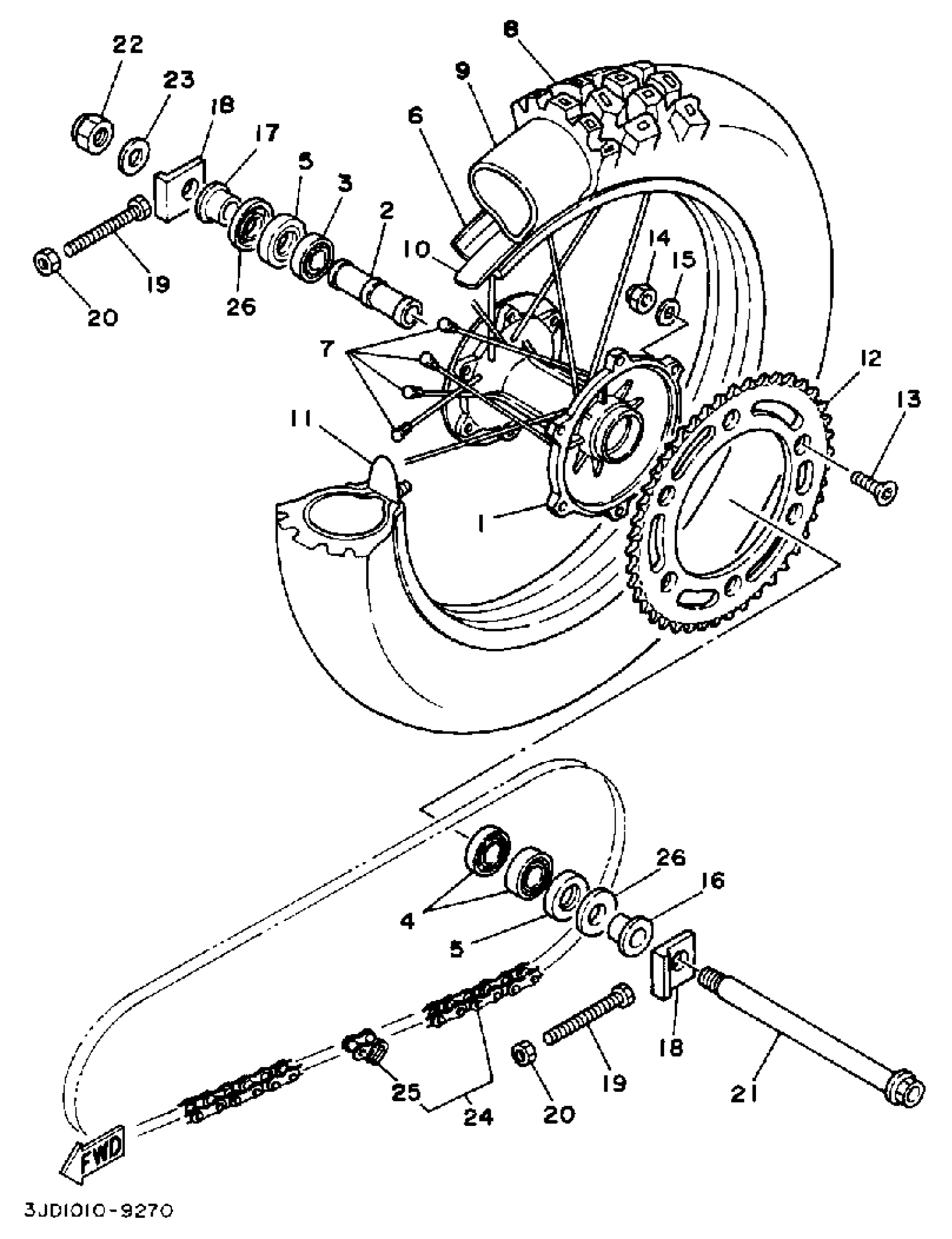

Yamaha YZ250WRW (YZ250WRW) 1989 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

2VN-25311-00-98

Unavailable

2

SPACER, BEARING

3JD-25317-01-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

RIM (2.15-19)

94421-19484-00

Unavailable

7

SPOKE SET, REAR

3JD-25304-00-00

Unavailable

8

110/90-19 D704D704 P) (110/90-19 62M)

94111-196U3-00

Unavailable

9

TUBE(3JE)

94211-19273-00

$59.99

10

BAND, RIM(25-19)

94311-19155-00

$16.99

11

SPACER, BEAD

3JE-25394-00-00

$37.99

12

SPROCKET, DRIVEN 44T

3R4-25444-01-XX

Unavailable

12

SPROCKET, DRIVEN (45T) (39W-25445-01-00)

3R4-25445-01-XX

Unavailable

12

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

12

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

12

SPROCKET, DRIVEN (49T) (2HH-25449-00-00)

3R4-25449-01-XX

Unavailable

12

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

12

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, U

95617-08100-00

Unavailable

15

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-202V9-00

Unavailable

18

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

19

BOLT

90101-08060-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

AXLE, WHEEL

3JD-25381-01-00

Unavailable

22

NUT, SELF-LOCKING

90185-18009-00

Unavailable

23

WASHER(64J)

92995-18600-00

Unavailable

24

JOINT, CHAIN

94681-68001-00

Unavailable

25

CHAIN

9Y581-92113-00

Unavailable

26

COVER, HUB DUST

4V4-25367-00-00

Unavailable
