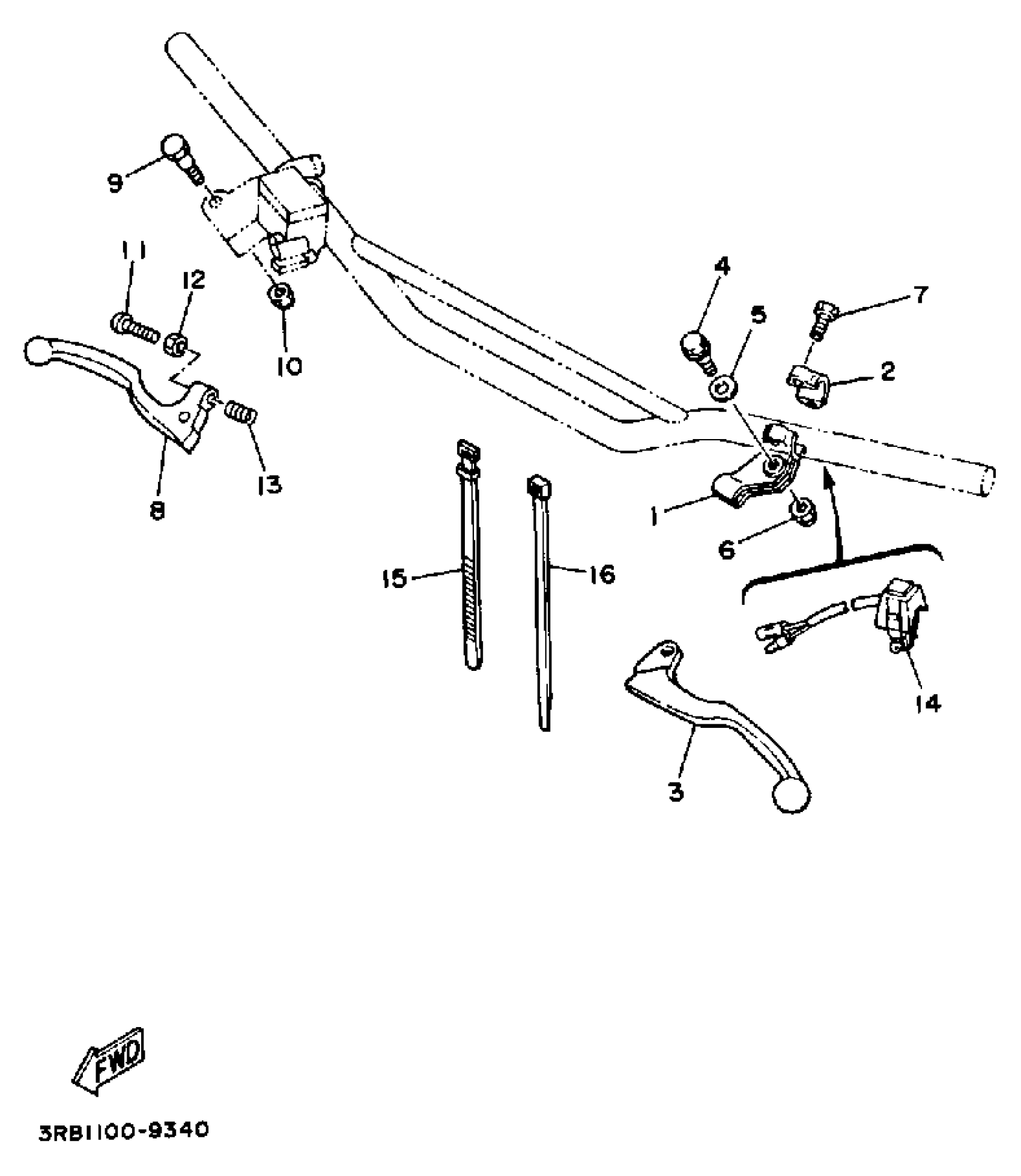

Yamaha YZ250WRW (YZ250WRW) 1989 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

H0LDER, LEVER 1

38V-82911-00-00

$38.99

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

BOLT(4TW)

97017-05016-00

$3.29

8

LEVER 2

3JD-83922-00-00

Unavailable

9

BOLT (4L0)

90109-06577-00

$5.60

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

14

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

$7.99

16

BAND

1UA-82591-00-00

Unavailable
