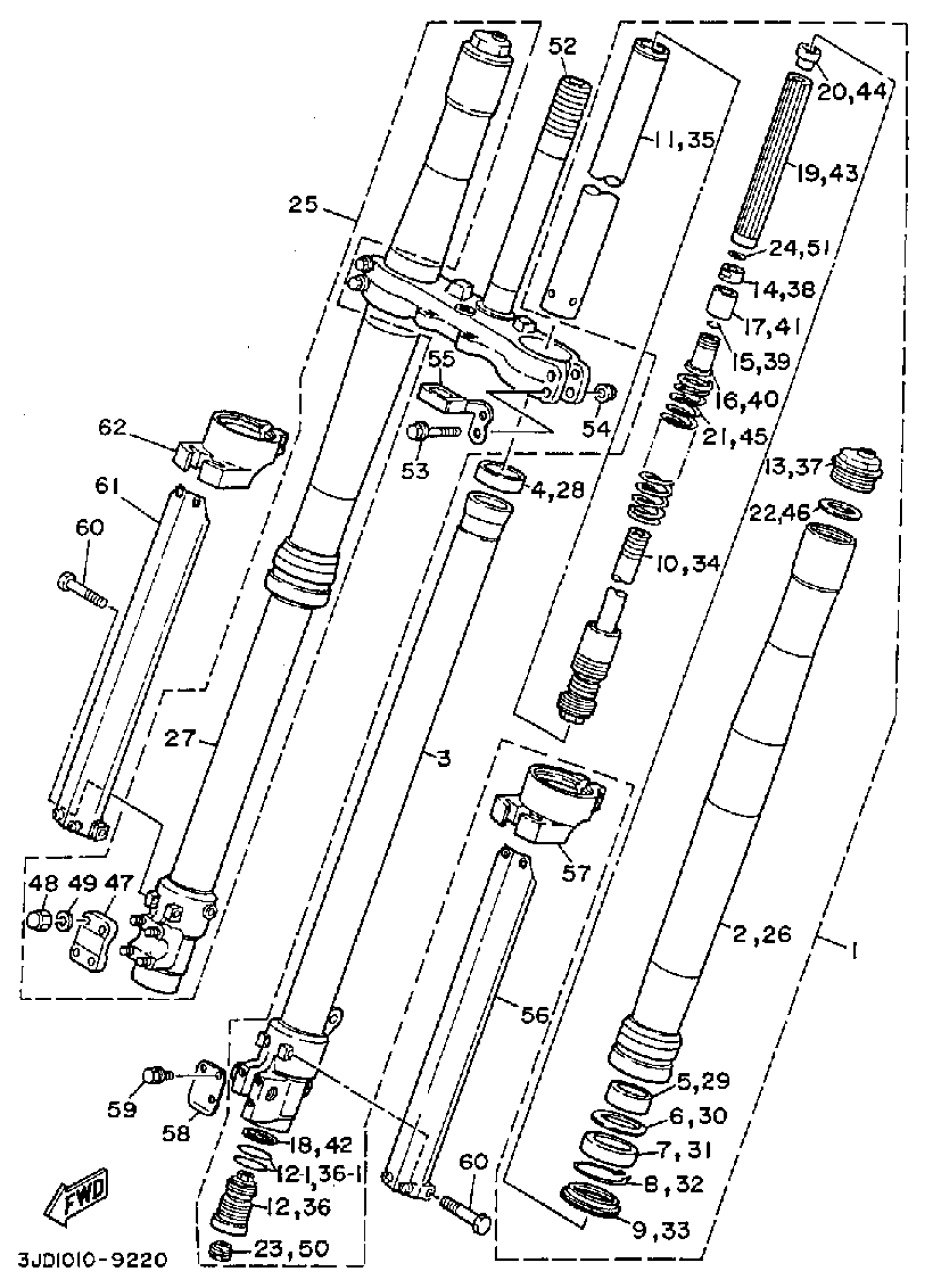

Yamaha YZ250WRW (YZ250WRW) 1989 FRONT FORK Diagram

#

Description
Price

1

.. O-RING

3JD-23147-M0-00

Unavailable

1

FRONT FORK ASSEMBLY L (L.H)

3JE-23102-L0-00

Unavailable

2

. TUBE, OUTER 2

3JD-23136-L0-00

Unavailable

3

. INNER TUBE COMP 2

3JD-23120-L0-00

Unavailable

4

METAL, SLIDE

4FM-23171-40-00

$23.99

5

METAL, SLIDE 1

4FM-23125-40-00

$33.99

6

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

7

OIL SEAL

3SP-23145-L0-00

$29.99

8

CLIP, OIL SEAL

26H-23156-00-00

$7.99

9

SEAL, DUST

3SP-23144-L1-00

$27.99

10

PISTON ROD ASY

3JE-2314A-M0-00

Unavailable

11

. CYLINDER, FRONT FORK

3JD-23170-L0-00

Unavailable

12

. VALVE COMP

3JE-2316A-L0-00

Unavailable

13

. BOLT, CAP

3JD-23111-L0-00

Unavailable

14

. NUT, SPECIAL

3SP-23393-L0-00

Unavailable

15

. RING, SNAP

3JD-23153-L0-00

Unavailable

16

. COLLAR

3JD-23113-L0-00

Unavailable

17

. SPACER, OIL LOCK

3JD-23166-L0-00

Unavailable

18

. GASKET

3JD-23158-L0-00

Unavailable

19

. SEAT, SPRING UPPER

3JD-23142-L0-00

Unavailable

20

. NUT

3JD-23357-L0-00

Unavailable

21

SPRNG,F.FRK (.365)

3JD-23141-20-00

Unavailable

21

. SPRNG, F FORK (390) (K50390) (HARD)

3JD-23141-40-00

Unavailable

21

SPRING, FRONT FORK (K=0.380)

3JD-23141-30-00

Unavailable

22

. WASHER, OIL SEAL

3JD-23146-L0-00

Unavailable

23

PLUG

3JD-2312G-L0-00

Unavailable

24

. O-RING

3JD-23147-L0-00

Unavailable

25

FRONT FORK ASSEMBLY R

3JE-23103-L0-00

Unavailable

26

. TUBE, OUTER 2

3JD-23136-L0-00

Unavailable

27

. INNER TUBE COMP 1

3JD-23110-L0-00

Unavailable

28

METAL, SLIDE

4FM-23171-40-00

$23.99

29

METAL, SLIDE 1

4FM-23125-40-00

$33.99

30

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

31

OIL SEAL

3SP-23145-L0-00

$29.99

32

CLIP, OIL SEAL

26H-23156-00-00

$7.99

33

SEAL, DUST

3SP-23144-L1-00

$27.99

34

PISTON ROD ASY

3JE-2314A-M0-00

Unavailable

35

. CYLINDER, FRONT FORK

3JD-23170-L0-00

Unavailable

36

. VALVE COMP

3JE-2316A-L0-00

Unavailable

37

. BOLT, CAP

3JD-23111-L0-00

Unavailable

38

. NUT, SPECIAL

3SP-23393-L0-00

Unavailable

39

. RING, SNAP

3JD-23153-L0-00

Unavailable

40

. COLLAR

3JD-23113-L0-00

Unavailable

41

. SPACER, OIL LOCK

3JD-23166-L0-00

Unavailable

42

. GASKET

3JD-23158-L0-00

Unavailable

43

. SEAT, SPRING UPPER

3JD-23142-L0-00

Unavailable

44

. NUT

3JD-23357-L0-00

Unavailable

45

SPRNG,F.FRK (.365)

3JD-23141-20-00

Unavailable

45

. SPRNG, F FORK (390) (K50390) (HARD)

3JD-23141-40-00

Unavailable

45

SPRING, FRONT FORK (K=0.380)

3JD-23141-30-00

Unavailable

46

. WASHER, OIL SEAL

3JD-23146-L0-00

Unavailable

47

HOLDER, AXLE

4V2-23167-L0-00

Unavailable

48

NUT

5Y3-23393-00-00

Unavailable

49

WASHER, SPRING

92995-06100-00

Unavailable

50

PLUG

3JD-2312G-L0-00

Unavailable

51

. O-RING

3JD-23147-L0-00

Unavailable

52

UNDER BRACKET COMP

3JD-23340-L0-00

Unavailable

53

BOLT, FLANGE

95817-08060-00

Unavailable

54

NUT, FLANGE

95704-08500-00

Unavailable

55

GUIDE, CABLE

3JD-23389-01-00

Unavailable

56

PROTECTOR 1

3JD-2314H-L0-00

Unavailable

57

PROTECTOR GUIDE 1 COMP., 1

3JD-2314F-L0-00

Unavailable

58

COVER, HOSE

3JD-2314E-L1-00

Unavailable

59

BOLT 1

3JD-23346-L0-00

Unavailable

60

BOLT(3HS)

97027-06050-00

Unavailable

61

PROTECTOR 2

3JD-2314J-L0-00

Unavailable

62

PROTECTOR GUIDE 2 COMP. 2

3JD-2314G-L0-00

Unavailable
