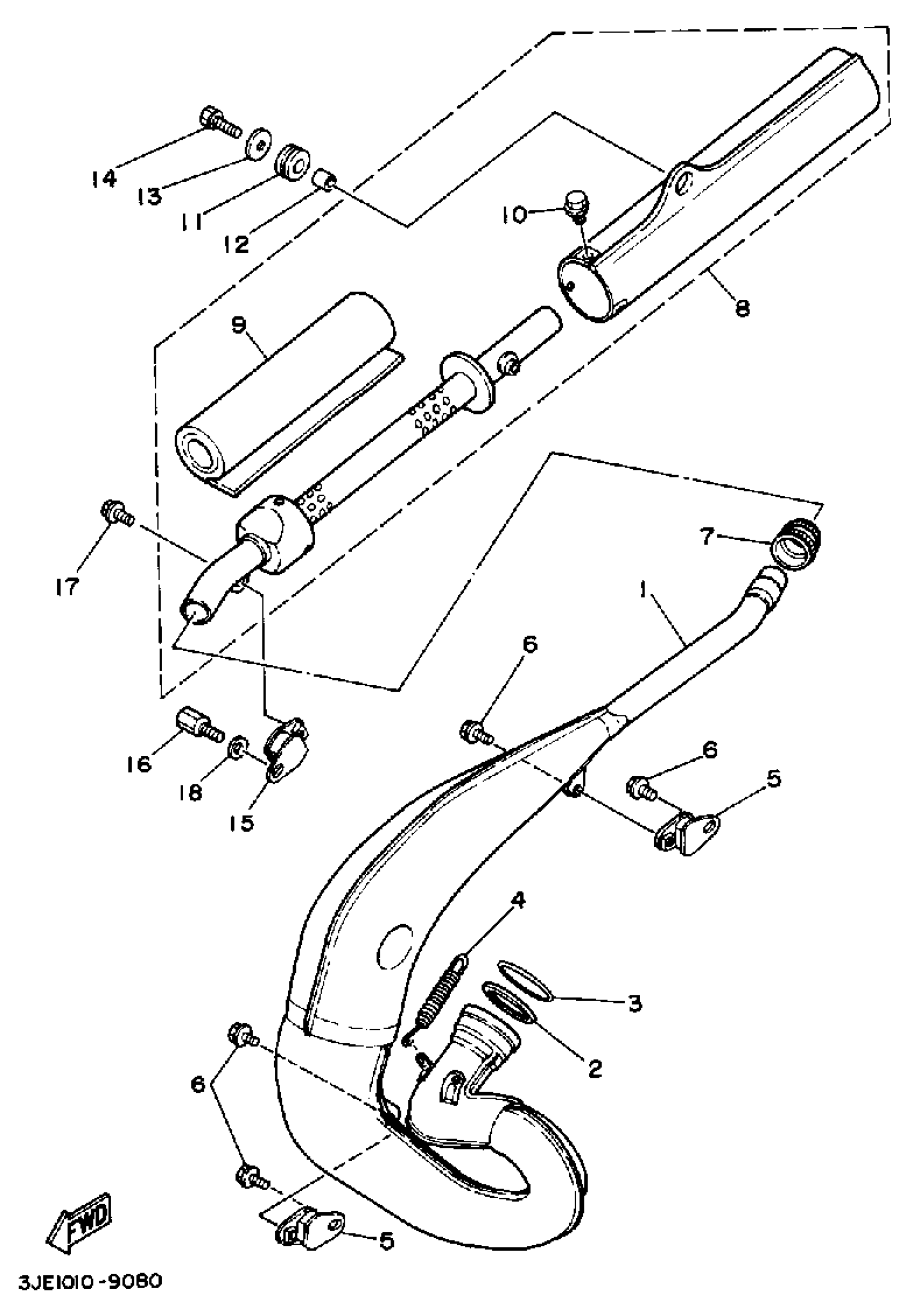

Yamaha YZ250WRW (YZ250WRW) 1989 EXHAUST Diagram

UNAVAILABLE IN PRICE BOOK

3JE-14010-00-00

Unavailable

GASKET, EXHAUST

3R4-14613-00-00

$31.99

O-RING(2HH)

93210-56743-00

$15.99

SPRING, TENSION (1W4)

90507-20030-00

$14.99

STAY, MUFFLER 1

565-14771-01-00

$18.49

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

SILENCER, EXHAUST

3JE-14753-00-00

Unavailable

. FIBER

3JE-1469A-00-00

Unavailable

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

COLLAR

90387-081A3-00

Unavailable

WASHER, PLATE (1A0)

90201-08612-00

$8.49

BOLT, HEXAGON (2X4)

90109-08512-00

$11.49

STAY, MUFFLER 1

565-14771-01-00

$18.49

BOLT (3R4)

90109-06551-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable
