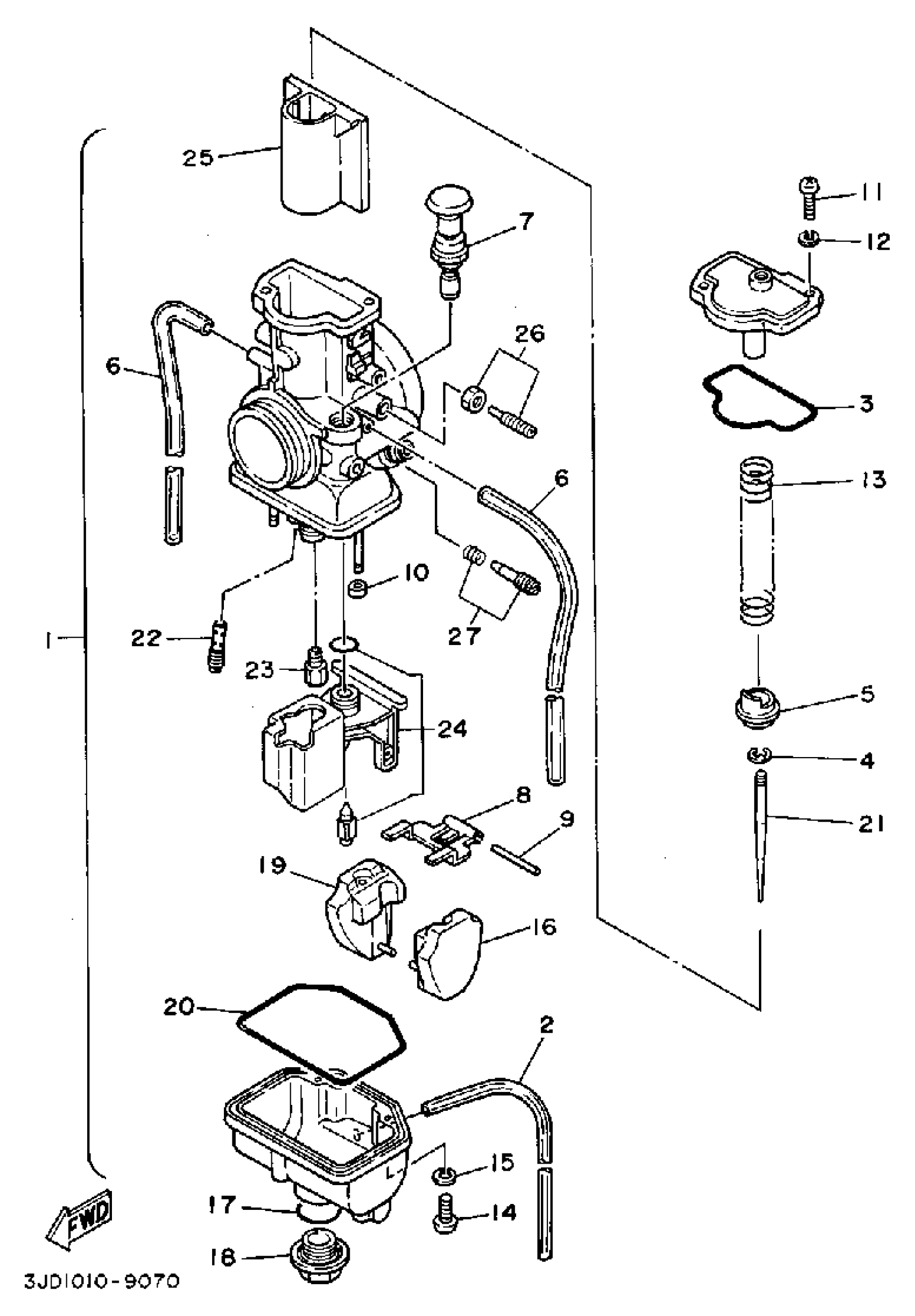

Yamaha YZ250WRW (YZ250WRW) 1989 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3JE-14101-00-00

Unavailable

2

PIPE 1

3XV-14348-20-00

$20.99

3

O-RING

3JD-14147-00-00

$11.99

4

CLIP

256-14919-00-00

$6.99

5

. RING

3JD-14194-00-00

Unavailable

6

PIPE, OVER FLOW

2J2-14196-00-00

$35.99

7

PLUNGER, STARTER

3JE-14171-00-00

$72.99

8

. ARM, FLOAT

363-14187-00-00

Unavailable

9

PIN, FLOAT

353-14186-00-00

$7.99

10

CAP

214-14118-00-00

Unavailable

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

. SPRING, THROTTLE VALVE

3JD-14131-00-00

Unavailable

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

WASHER, SPRING

92990-03100-00

$8.49

16

. FLOAT

3JD-14185-00-00

Unavailable

17

O-RING

3JE-14561-00-00

Unavailable

18

PLUG,SCREW

4DP-14115-00-00

Unavailable

19

. FLOAT

3JE-14185-00-00

Unavailable

20

O-RING

3JE-14147-00-00

Unavailable

21

. NEEDLE (J8-6DJ8-61)

275-14116-A7-00

Unavailable

21

. NEEDLE (J8-6DJ8-63)

275-14116-A8-00

Unavailable

21

. NEEDLE (J8-6DJ8-62)

275-14116-E0-00

Unavailable

21

. NEEDLE (J8-6DJ8-64)

275-14116-E1-00

Unavailable

21

. NEEDLE (J8-6DJ8-65)

275-14116-E2-00

Unavailable

22

JET, PILOT (# 50)

193-14142-50-00

Unavailable

22

. JET, PILOT #55 (# 55)

193-14142-55-00

Unavailable

22

. JET, PILOT #60

193-14142-60-00

Unavailable

22

. JET, PILOT (65)

193-14142-65-00

Unavailable

22

JET, PILOT (# 70)

193-14142-70-00

Unavailable

23

JET, MAIN #330

137-14143-66-A1

Unavailable

23

JET,MAIN #340

137-14143-68-00

Unavailable

23

JET,MAIN #350

137-14143-70-00

Unavailable

24

NEEDLE VALVE SET

3JD-14107-35-00

Unavailable

25

. VALVE, THROTTLE (CA 30)

3JD-14112-30-00

Unavailable

25

. VALVE, THROTTLE (CA 35)

3JD-14112-35-00

Unavailable

25

. VALVE, THROTTLE (CA 40)

3JD-14112-40-00

Unavailable

25

. VALVE, THROTTLE (CA 45)

3JD-14112-45-00

Unavailable

25

. VALVE, THROTTLE (CA 50)

3JD-14112-50-00

Unavailable

26

THROTTLE SCREW SET

3JD-14103-00-00

Unavailable

27

AIR SCREW SET

4GL-14104-00-00

Unavailable
