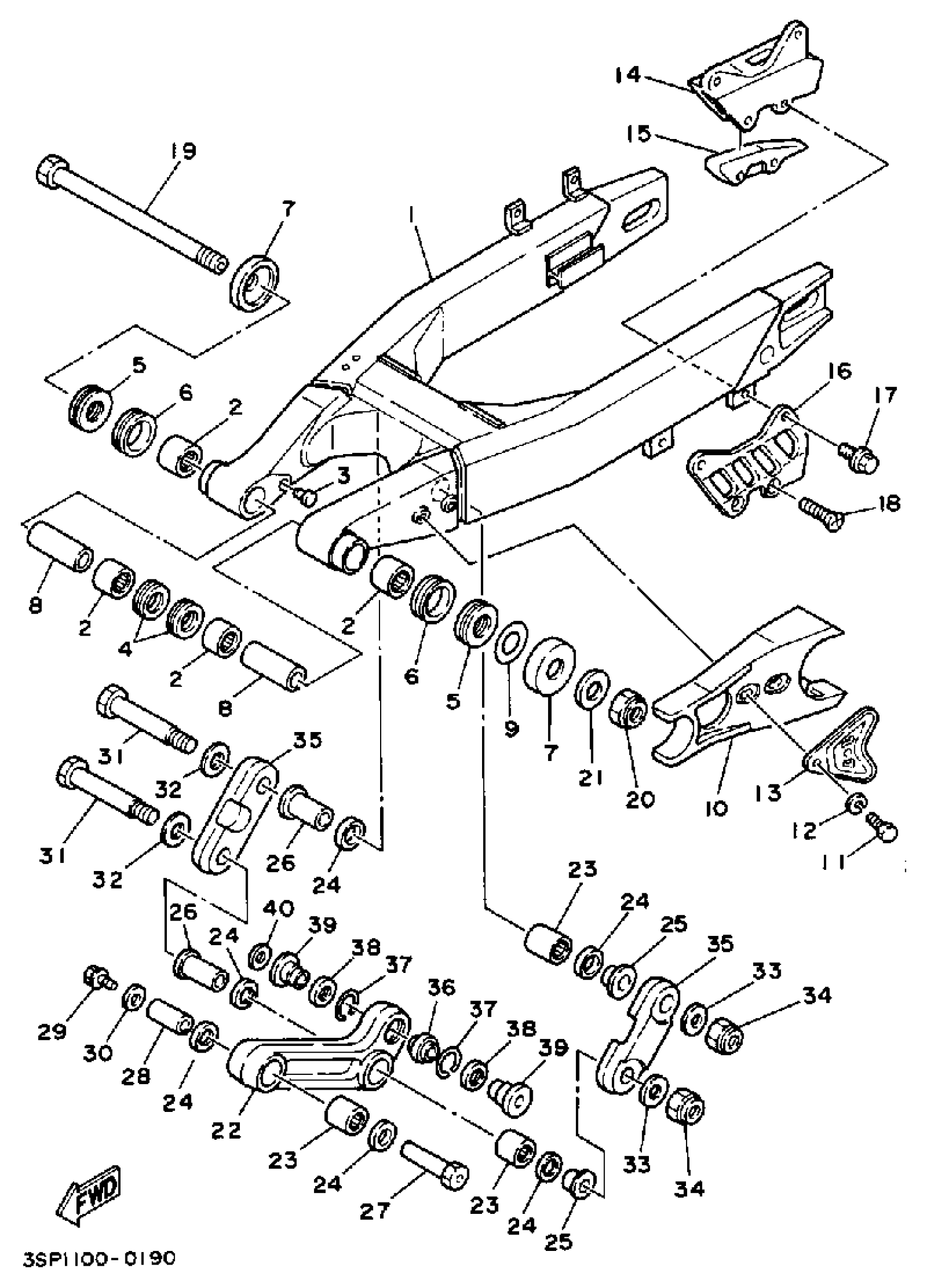

Yamaha YZ250WRA (YZ250WRA) 1990 SWING ARM Diagram
#
1
REAR ARM COMP
3SP-22110-00-00
Unavailable
2
BEARING, CYLINDRICAL
93317-22263-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
WASHER, PLATE
3JD-22156-00-00
Unavailable
14
SUPPORT, CHAIN
3JD-22199-00-00
Unavailable
15
PROTECTOR, CHAIN
3JD-22147-00-00
Unavailable
16
COVER, THRUST 1
3JD-22128-00-00
Unavailable
17
BOLT, FLANGE
95817-06020-00
Unavailable
18
SCREW, FLAT
98707-06035-00
Unavailable
19
SHAFT, PIVOT
1LX-22141-00-00
Unavailable
20
NUT, SELF-LOCKING
90185-16002-00
Unavailable
21
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
22
ARM, RELAY
3JD-2217A-00-00
Unavailable
23
BEARING, CYLINDRICAL(2HJ)
93315-22046-00
Unavailable
24
OIL SEAL
93109-20076-00
Unavailable
25
COLLAR(1LV)
90387-164N2-00
Unavailable
26
COLLAR
90387-164N3-00
Unavailable
27
NUT
90179-10544-00
Unavailable
28
COLLAR
90387-166X1-00
Unavailable
29
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
30
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
31
BOLT
90109-142F4-00
Unavailable
32
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
33
WASHER PLATE (3L6)
90201-14740-00
Unavailable
34
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
35
ROD, CONNECTING 1
3JD-2217F-00-00
Unavailable
36
BEARING(3XP)
93399-99935-00
Unavailable
37
CIRCLIP (23X)
93440-30113-00
Unavailable
38
OIL SEAL (23X)
93104-18077-00
Unavailable
39
COLLAR.
90387-102V0-00
Unavailable
40
WASHER PLATE (3L6)
90201-08759-00
Unavailable
