Description

Price

1

SHOCK ABSORBER ASSEMBLY, REAR

3SP-22210-00-00

Unavailable

2

DAMPER SUB ASY

3SR-22201-10-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

5

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

6

.. BUSH, REAR SHOCK ABSORBER

3JD-22216-00-00

Unavailable

7

.. RING, STOP

43M-22274-00-00

Unavailable

8

. SPRING (K=52)

3JD-22212-31-00

Unavailable

9

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

10

. GUIDE, SPRING 2

3JD-22224-00-00

Unavailable

11

SEAL, DUST

3JD-22475-00-00

$24.99

12

. COLLAR, DISTANCE

3XJ-22253-00-00

Unavailable

13

BOLT 1

3SP-22241-00-00

Unavailable

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BOLT

90109-107E9-00

Unavailable

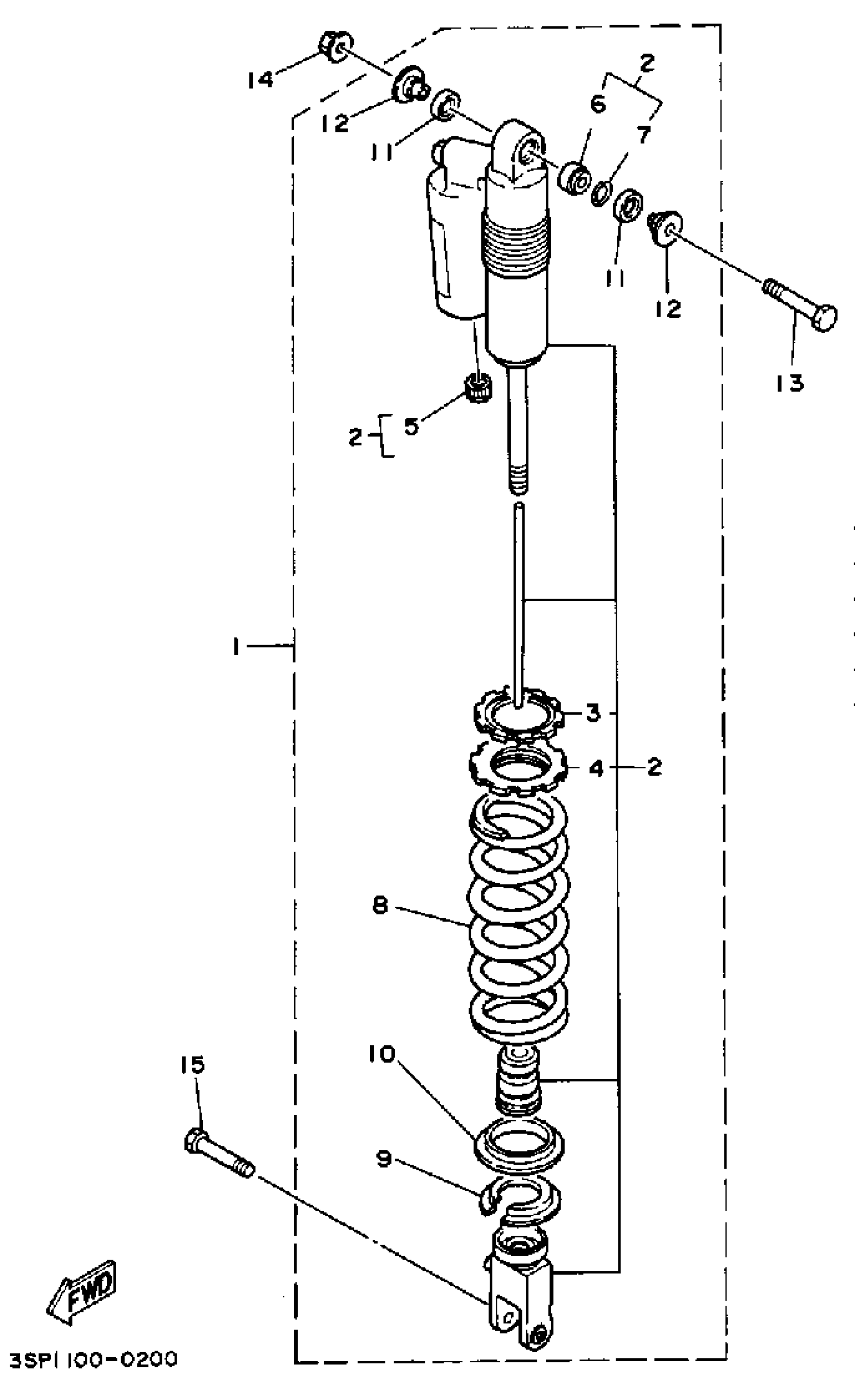

Yamaha YZ250WRA (YZ250WRA) 1990 REAR SHOCKS Diagram

SHOCK ABSORBER ASSEMBLY, REAR

DAMPER SUB ASY

GUIDE, SPRING 3

SEAT, SPRING UPPER

.. CAP, AIR VALVE

.. BUSH, REAR SHOCK ABSORBER

.. RING, STOP

. SPRING (K=52)

GUIDE, SPRING 1

. GUIDE, SPRING 2

SEAL, DUST

. COLLAR, DISTANCE

BOLT 1

NUT, SELF-LOCKING(JN5)

BOLT
