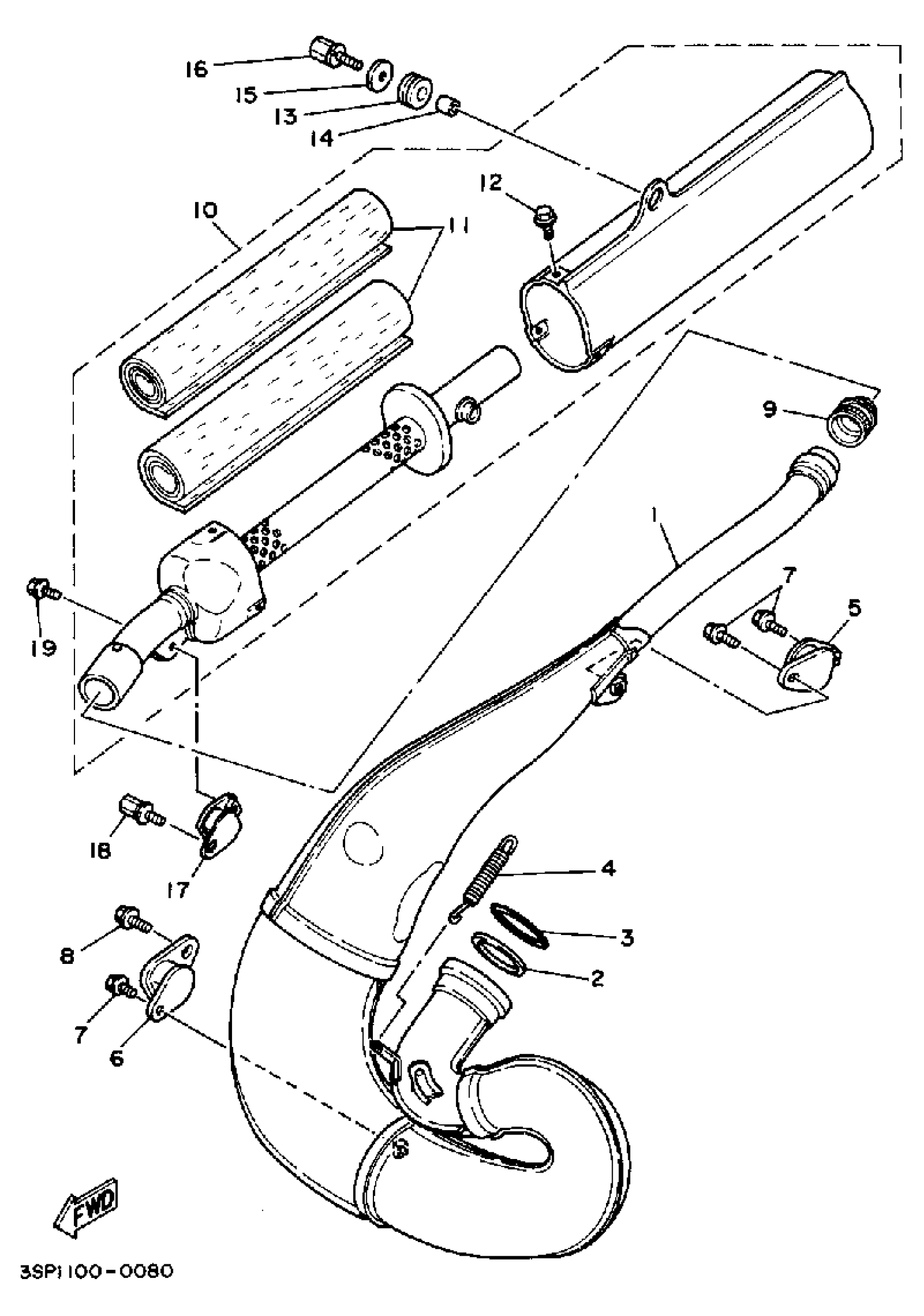

Yamaha YZ250WRA (YZ250WRA) 1990 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

3SP-14610-00-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$31.99

3

O-RING(2HH)

93210-56743-00

$15.99

4

SPRING, TENSION (1W4)

90507-20030-00

$14.99

5

STAY, MUFFLER 1

565-14771-01-00

$18.49

6

STAY, MUFFLER 2

483-14781-03-00

Unavailable

7

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

8

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

9

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

10

SILENCER, EXHAUST

3SP-14753-00-00

Unavailable

11

. FIBER

3SP-1469A-00-00

Unavailable

12

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

13

GROMMET(3RB)

90480-18525-00

$4.82

14

COLLAR

90387-084E3-00

Unavailable

15

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

16

BOLT, HEXAGON (2X4)

90109-08512-00

Unavailable

17

STAY, MUFFLER 1

565-14771-01-00

$18.49

18

BOLT (3R4)

90109-06551-00

Unavailable

19

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41
