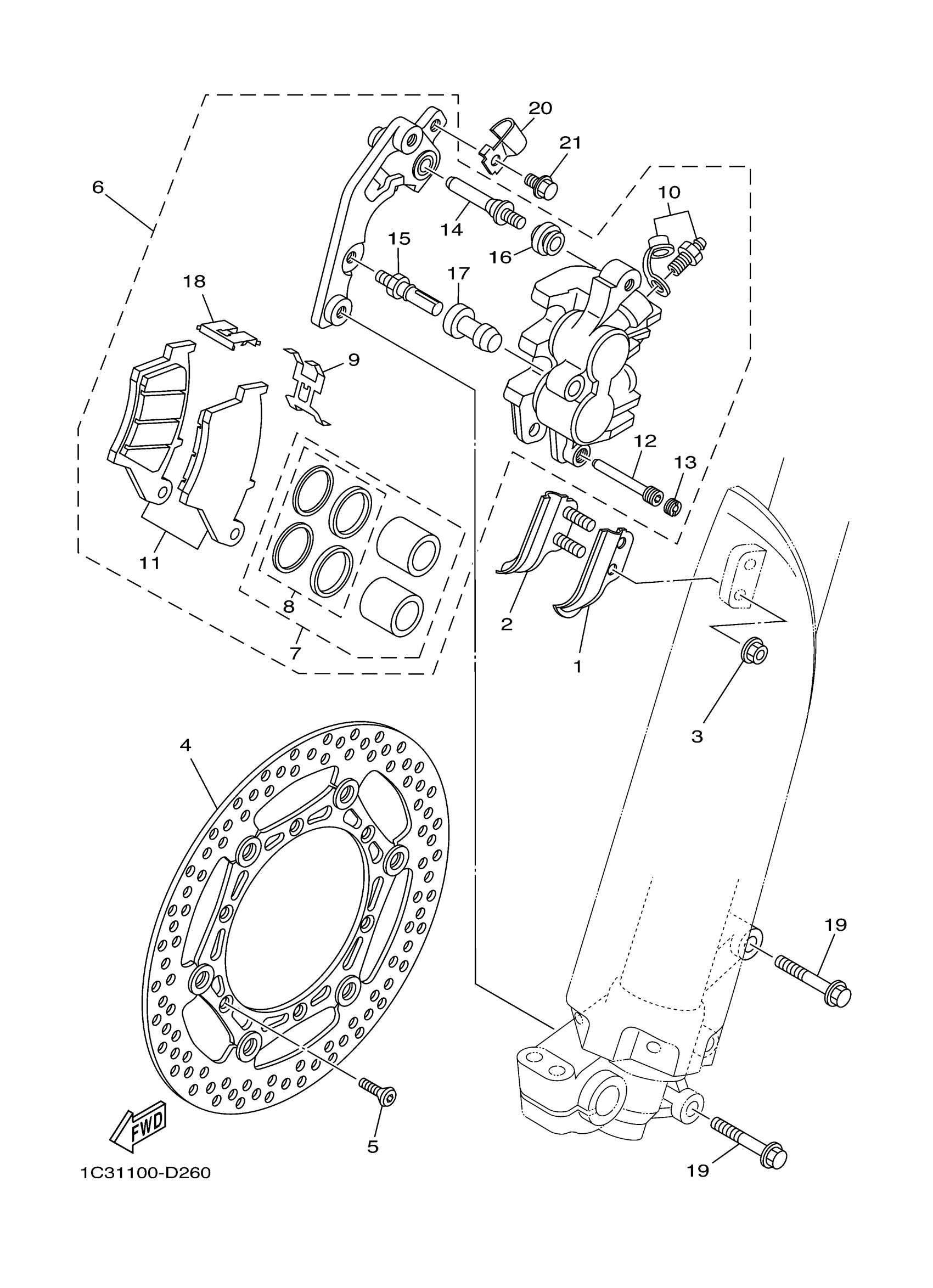

Yamaha YZ250W1 (YZ250) 1P89 2007 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

CLAMP

1C3-23466-50-00

$7.99

2

CLAMP

1C3-23467-50-00

$16.49

3

NUT, FLANGE

95702-06500-00

$2.39

4

DISC BRAKE ASSY

5MV-2581T-00-00

$201.99

5

SCREW, COUNTERSUNK

90151-06080-00

$2.18

6

CALIPER ASSY (LEFT)

1C3-2580T-00-00

$450.99

7

PISTON ASSY, CALIPER

5UN-W0057-00-00

$66.99

8

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

9

SUPPORT, PAD

5DH-25919-00-00

$20.99

10

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

11

BRAKE PAD KIT

5MV-W0045-01-00

$39.99

12

PIN, PAD

5DH-25933-00-00

$22.99

13

PLUG

5DH-25916-00-00

$9.99

14

BOLT

3SP-25926-51-00

$13.49

15

BOLT

3SP-25914-51-00

$4.58

16

BOOT, CALIPER

3JD-25917-00-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

RETAINER, CALIPER

5DH-25849-00-00

Unavailable

19

BOLT, FLANGE

90105-08137-00

Unavailable

20

HOLDER, BRAKE HOSE 1

1C3-25875-50-00

Unavailable

21

BOLT, FLANGE

90105-06105-00

Unavailable
