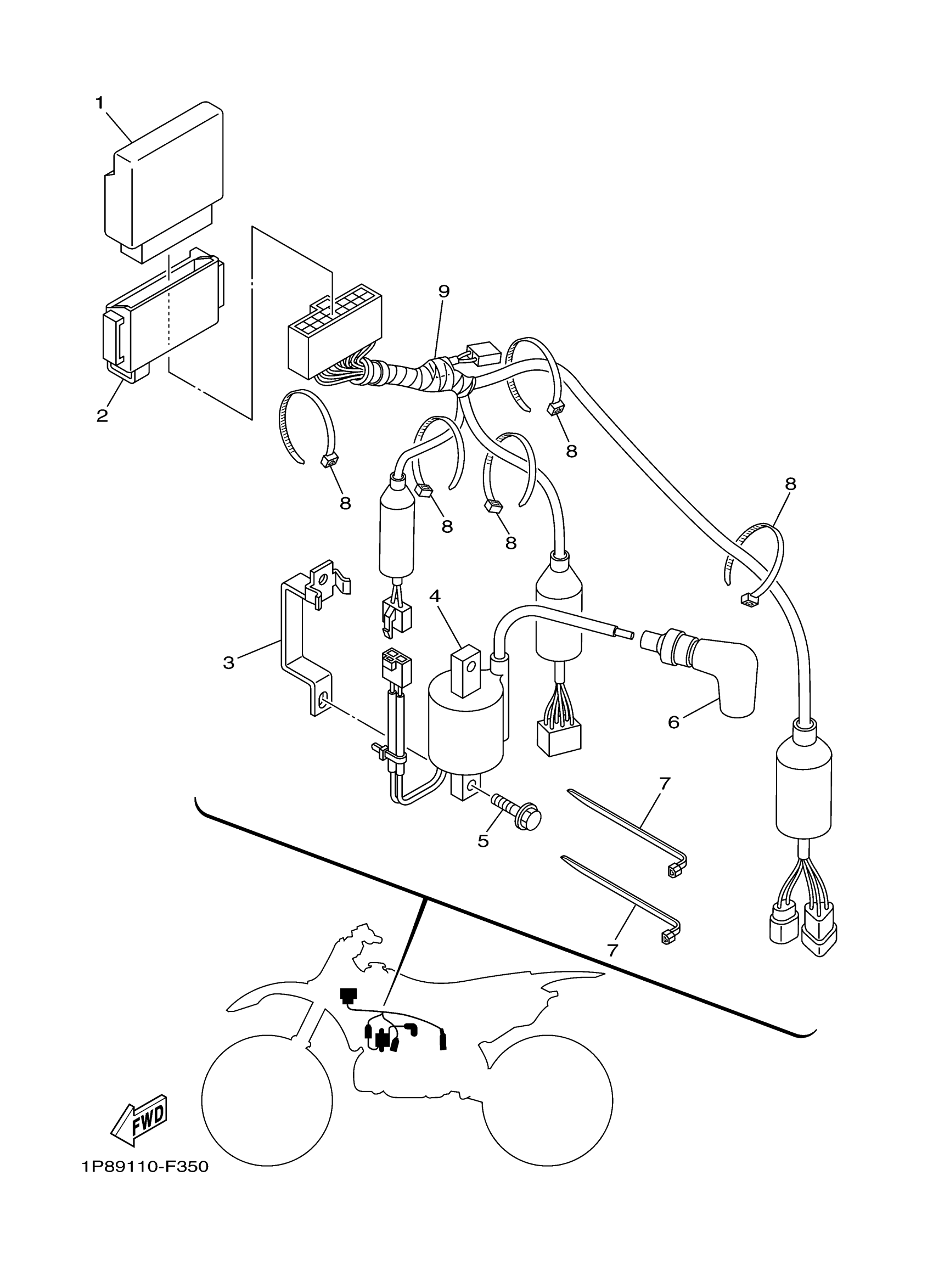

Yamaha YZ250W1 (YZ250) 1P89 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

1P8-85540-03-00

Unavailable

2

BAND

1P8-85546-00-00

$16.45

3

CORE, SIDE

1P8-8231U-10-00

$15.84

4

IGNITION COIL ASSY

1P8-82310-03-00

$95.41

5

BOLT, FLANGE

90105-06060-00

$3.45

6

PLUG CAP ASSY

8DG-82370-00-00

$42.47

7

CLAMP(4FM)

90464-15195-00

$2.58

8

CLAMP(MF1)

90464-15152-00

$4.07

9

WIRE, SUB LEAD

1P8-82509-10-00

Unavailable
