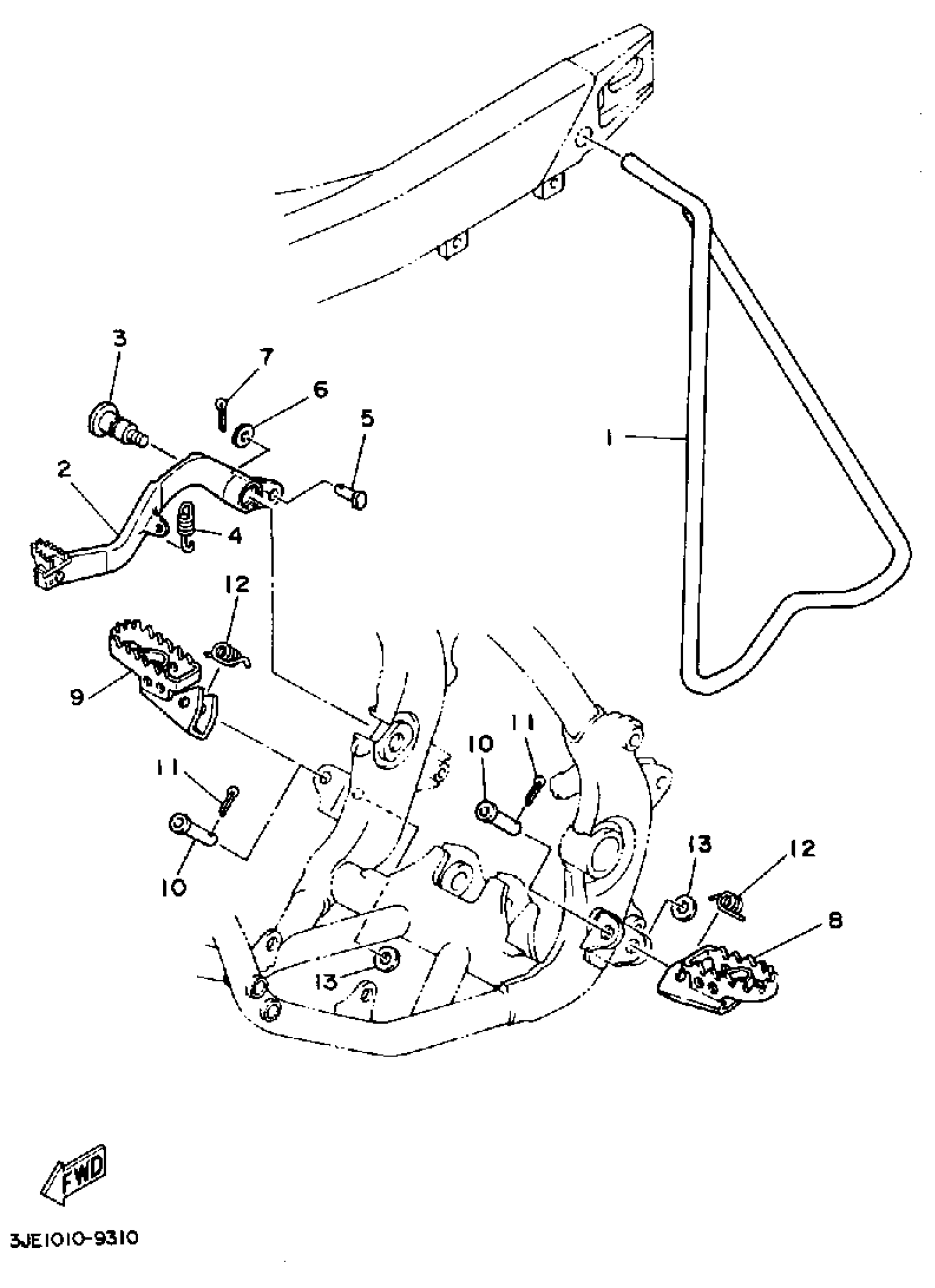

Yamaha YZ250W (YZ250W) 1989 STAND-FOOTREST Diagram

#

Description
Price

1

STAND,SIDE

4LB-27311-00-00

Unavailable

2

PEDAL, BRAKE

3JE-27200-00-00

Unavailable

3

BOLT

4AA-27217-00-00

Unavailable

4

SPRING, TENSION

90506-14410-00

Unavailable

5

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

PIN, COTTER

91490-25020-00

$3.19

8

FOOTREST 1

3LD-27411-10-00

Unavailable

9

FOOTREST 2

3LD-27421-10-00

$48.99

10

PIN, CLEVIS(2HJ)

90240-10117-00

$14.99

11

PIN, COTTER

91490-25020-00

$3.19

12

SPRING, TORSION(3JD)

90508-28777-00

$7.49

13

WASHER, PLAIN(735)

90201-10119-00

Unavailable
