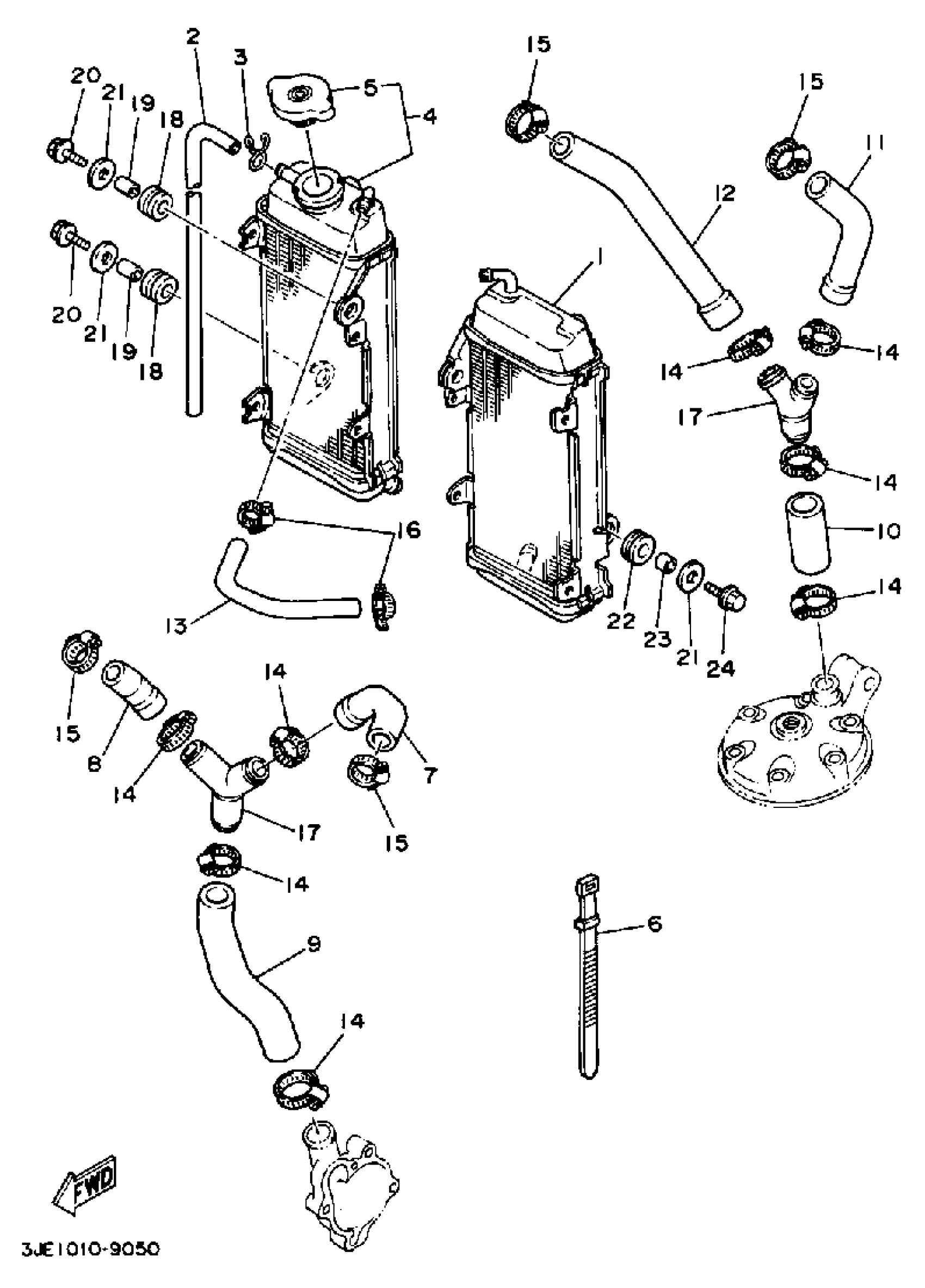

Yamaha YZ250W (YZ250W) 1989 RADIATOR-HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

2VM-12460-00-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSEMBLY 2

1LU-1240A-00-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

BAND, SWITCH CORD

437-83936-11-00

$4.63

7

PIPE 1

3JE-12481-00-00

Unavailable

8

PIPE 2

2VM-12482-00-00

Unavailable

9

PIPE 3

2VM-12483-00-00

Unavailable

10

PIPE 3

3AK-12483-00-00

Unavailable

11

PIPE 6

2VM-12476-00-00

Unavailable

12

PIPE 7

2VM-12477-00-00

Unavailable

13

PIPE 8

4JW-1248A-00-00

Unavailable

14

HOSE CLAMP ASSY

90450-28001-00

$14.99

15

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

16

HOSE CLAMP ASSEMBLY

90450-15041-00

Unavailable

17

JOINT 1

24X-12469-00-00

Unavailable

18

GROMMET(663)

90480-15064-00

Unavailable

19

COLLAR(2UJ)

90387-061V1-00

Unavailable

20

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

21

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

22

GROMMET (4L0)

90480-18276-00

Unavailable

23

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

24

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
