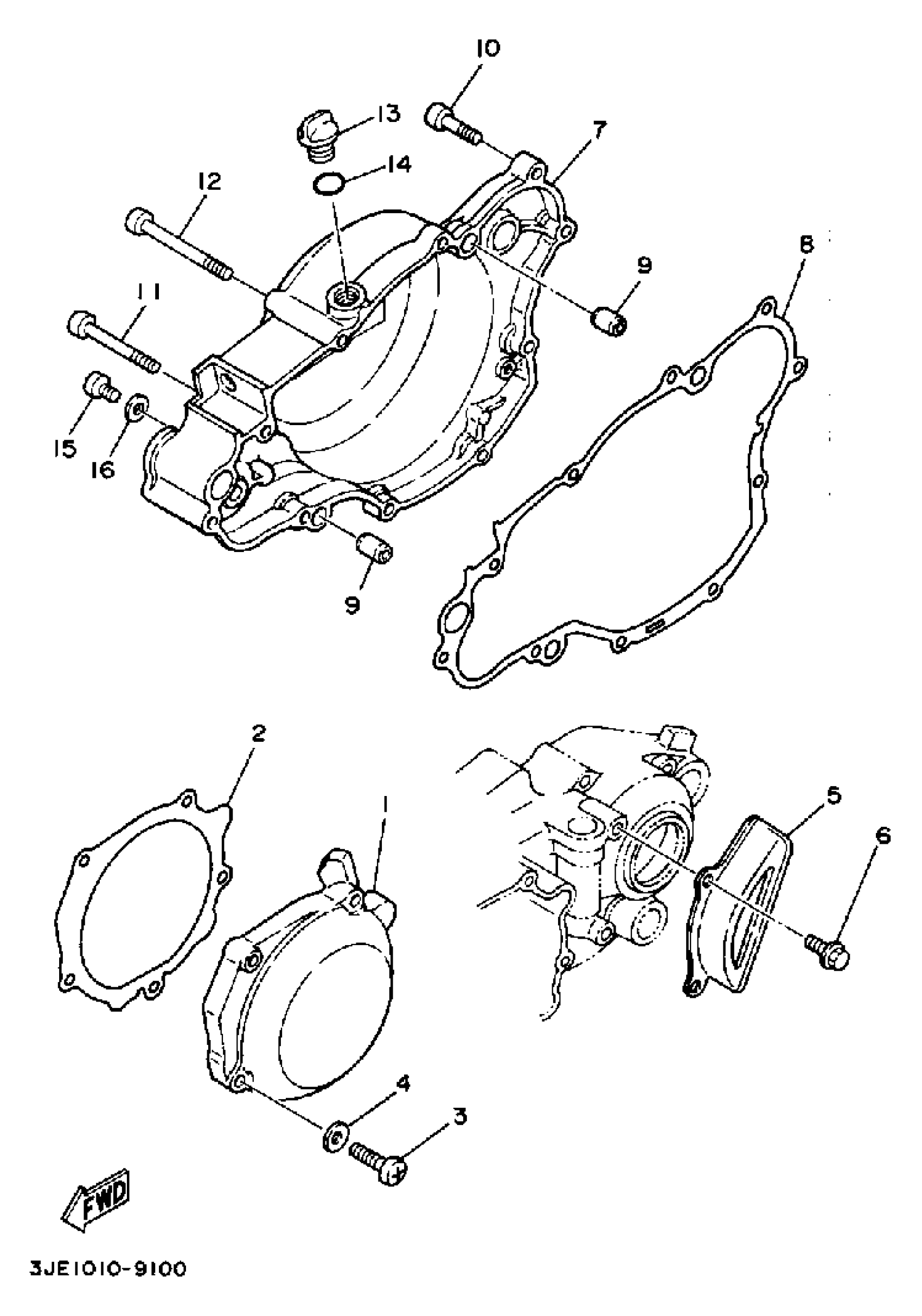

Yamaha YZ250W (YZ250W) 1989 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2VM-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

2VM-15451-11-00

$17.82

3

SCREW, PAN

98517-06030-00

$2.88

4

WASHER(6TA)

92907-06600-00

$0.73

5

COVER, CRANKCASE 2

2VM-15421-02-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

7

COVER,CRKCASE 3

2VM-Y1543-02-00

Unavailable

8

GASKET, CRANKCASE COVER 3

2VM-15462-11-00

Unavailable

9

PIN, DOWEL

99530-12016-00

$3.85

10

BOLT,SOCKET

91317-06025-00

$1.91

11

BOLT,SOCKET

91317-06055-00

$3.32

12

BOLT, SOCKET

91317-06070-00

$3.23

13

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

14

O-RING (26H)

93210-14579-00

$5.05

15

SCREW, PAN

98517-06008-00

$6.22

16

GASKET 838153840000

90430-06016-00

Unavailable
