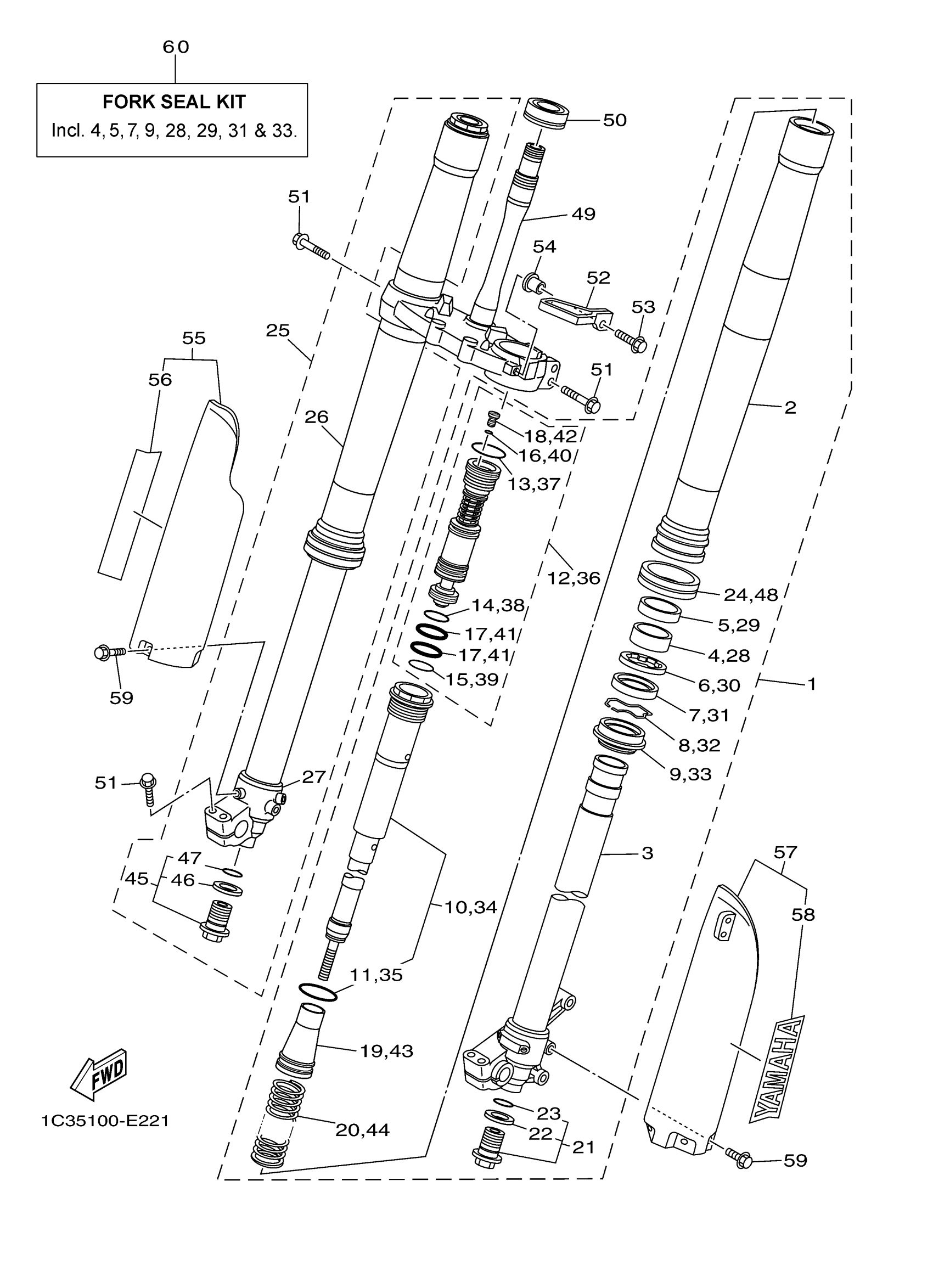

Yamaha YZ250V (YZ250) 1P85 2006 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

1P8-23102-50-00

Unavailable

2

. TUBE, OUTER (RIGHT)

1C3-23136-M0-00

Unavailable

3

. INNER TUBE COMP 2

1C3-23120-M0-00

Unavailable

4

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

5

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

6

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

7

OIL SEAL

1C3-23145-L0-00

$32.99

8

RING, SNAP

5XE-23153-L0-00

$7.99

9

SEAL, DUST

5XE-23144-L0-00

$22.99

10

. CYLINDER COMP, FRONT FORK

1C3-23170-N0-00

Unavailable

11

O-RING

1C3-23147-L1-00

$3.48

12

. VALVE COMP

1C3-2316A-N0-00

Unavailable

13

O-RING

1C3-23188-L1-00

$2.50

14

O-RING

1C3-23188-N0-00

$7.99

15

O-RING

1C3-23188-P0-00

$6.99

16

O-RING

1C3-23188-R1-00

Unavailable

17

O-RING

1W4-23114-L0-00

Unavailable

18

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

19

SEAT, SPRING UPPER

1C3-23142-L0-00

Unavailable

20

.. SPRING, FRONT FORK (K=42N/MM)

1P8-23141-M0-00

Unavailable

21

BOLT, CAP

1C3-23111-L1-00

Unavailable

22

GASKET

2HH-23158-L0-00

Unavailable

23

GASKET

276-23114-01-00

Unavailable

24

PROTECTER GUIDE COMP., 1

1C3-2314F-M0-00

Unavailable

25

FRONT FORK ASSY (R.H)

1P8-23103-50-00

Unavailable

26

. TUBE, OUTER (RIGHT)

1C3-23136-M0-00

Unavailable

27

INNER TUBE COMP.1

1C3-23110-M0-00

Unavailable

28

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

29

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

30

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

31

OIL SEAL

1C3-23145-L0-00

$32.99

32

RING, SNAP

5XE-23153-L0-00

$7.99

33

SEAL, DUST

5XE-23144-L0-00

$22.99

34

. CYLINDER COMP, FRONT FORK

1C3-23170-N0-00

Unavailable

35

O-RING

1C3-23147-L1-00

$3.48

36

. VALVE COMP

1C3-2316A-N0-00

Unavailable

37

O-RING

1C3-23188-L1-00

$2.50

38

O-RING

1C3-23188-N0-00

$7.99

39

O-RING

1C3-23188-P0-00

$6.99

40

O-RING

1C3-23188-R1-00

Unavailable

41

O-RING

1W4-23114-L0-00

Unavailable

42

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

43

SEAT, SPRING UPPER

1C3-23142-L0-00

Unavailable

44

.. SPRING, FRONT FORK (K=42N/MM)

1P8-23141-M0-00

Unavailable

45

BOLT, CAP

1C3-23111-L1-00

Unavailable

46

GASKET

2HH-23158-L0-00

Unavailable

47

GASKET

276-23114-01-00

Unavailable

48

PROTECTER GUIDE COMP., 1

1C3-2314F-M0-00

Unavailable

49

UNDER BRACKET COMP.

1P8-23340-M0-00

Unavailable

50

BEARING(4SR)

93332-00081-00

Unavailable

51

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

52

GUIDE, CABLE

5XE-23389-00-00

Unavailable

53

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

54

COLLAR

90387-06104-00

Unavailable

55

PROTECTER COMP., 2

1C3-2314J-10-00

Unavailable

56

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

57

Protecter Comp. 1

1C3-2314H-11-00

Unavailable

58

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

59

BOLT 2

3SP-23356-L0-00

Unavailable

60

FORK SEAL KIT (TWO FORKS)

1C3-W003B-00-00

Unavailable
