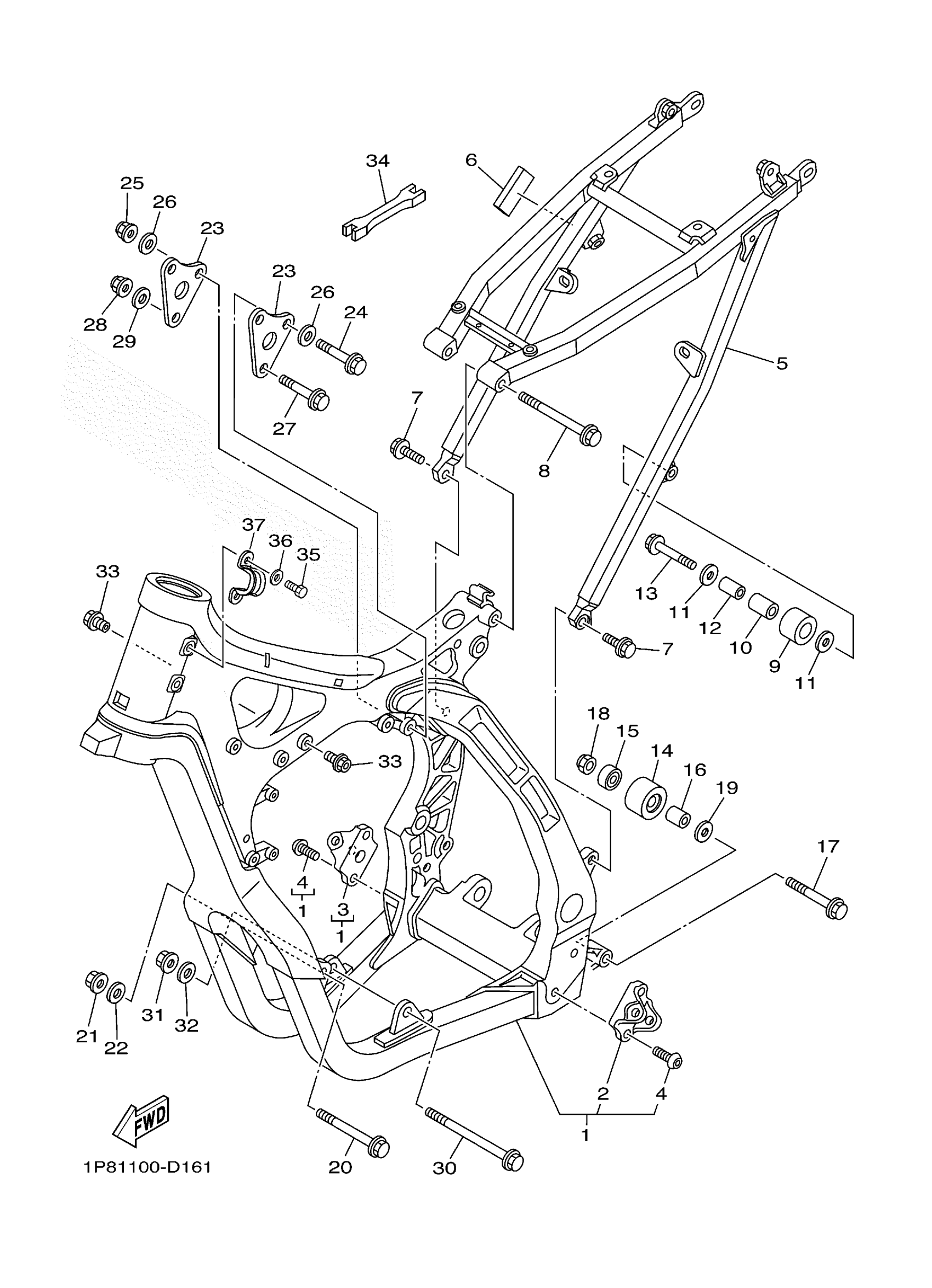

Yamaha YZ250V (YZ250) 1P85 2006 FRAME Diagram
#
Description
Price
1
FRONT FRAME COMP.
1P8-21101-50-00
Unavailable
5
REAR FRAME COMP.
1C3-21190-90-00
Unavailable
16
COLLAR(1NL)
90387-086N4-00
Unavailable
17
BOLT, FLANGE(3EB)
95024-08055-00
Unavailable
18
NUT, U
95617-08100-00
Unavailable
19
WASHER, PLATE
90201-08043-00
Unavailable
20
BOLT, WASHER BASED(3RB)
90105-10733-00
Unavailable
21
NUT(4KG)
90179-10658-00
Unavailable
22
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
23
BRACKET, REAR UPPER 1
5NX-21425-00-00
Unavailable
24
BOLT, FLANGE
90105-08059-00
Unavailable
25
NUT(4KM)
90179-08674-00
Unavailable
26
WASHER, PLATE (12X)
90201-087F0-00
Unavailable
27
BOLT, FLANGE
90105-10074-00
Unavailable
28
NUT(4KG)
90179-10658-00
Unavailable
29
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
30
BOLT, FLANGE
90105-10079-00
Unavailable
31
NUT(4KG)
90179-10658-00
Unavailable
32
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
33
NUT
1C3-21244-20-00
Unavailable
34
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
35
BOLT(4GV)
97017-05012-00
Unavailable
36
WASHER, PLAIN (646)
92990-05600-00
Unavailable
37
CLAMP, WIRE HARNESS 2
1C3-21336-00-00
Unavailable
