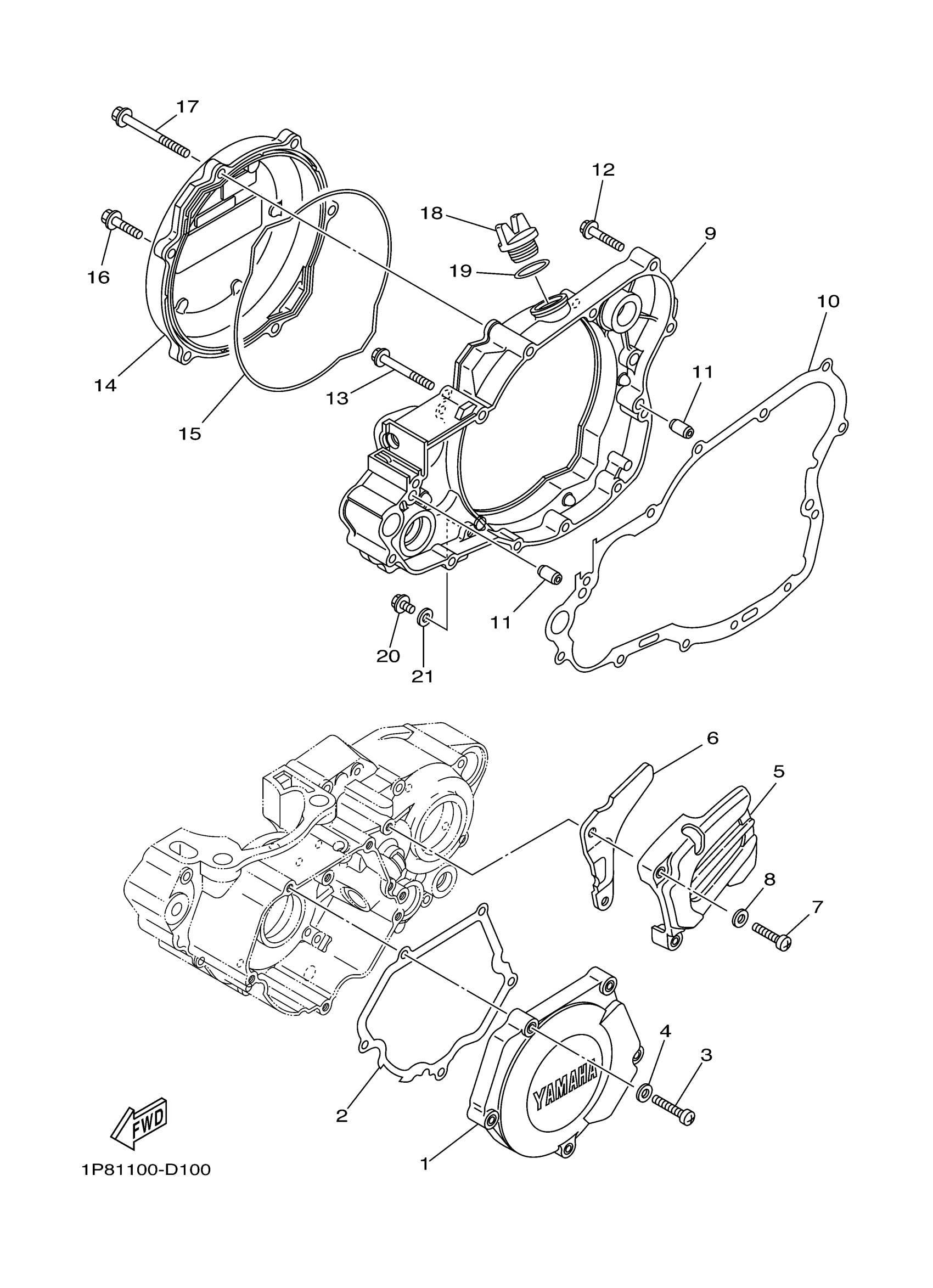

Yamaha YZ250V (YZ250) 1P85 2006 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

5CU-15411-10-00

$98.99

GASKET, CRANKCASE COVER 1

5CU-15451-00-00

Unavailable

SCREW, PAN

98517-06030-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

COVER, CRANKCASE 2

1P8-15421-10-00

$67.99

GUIDE, CHAIN

5HC-17466-00-00

$33.99

SCREW, PAN

98517-06030-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

COVER, CRANKCASE 3

5NX-15431-01-00

$300.99

GASKET, CRANKCASE COVER 3

5CU-15462-00-00

$18.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06050-00

$2.55

COVER, 1

5MW-15415-10-00

$192.99

GASKET, 2

5CU-15463-01-00

$13.49

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

BOLT, SMALL FLANGE

95027-06065-00

Unavailable

PLUG, OIL

3Y1-15363-10-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable
