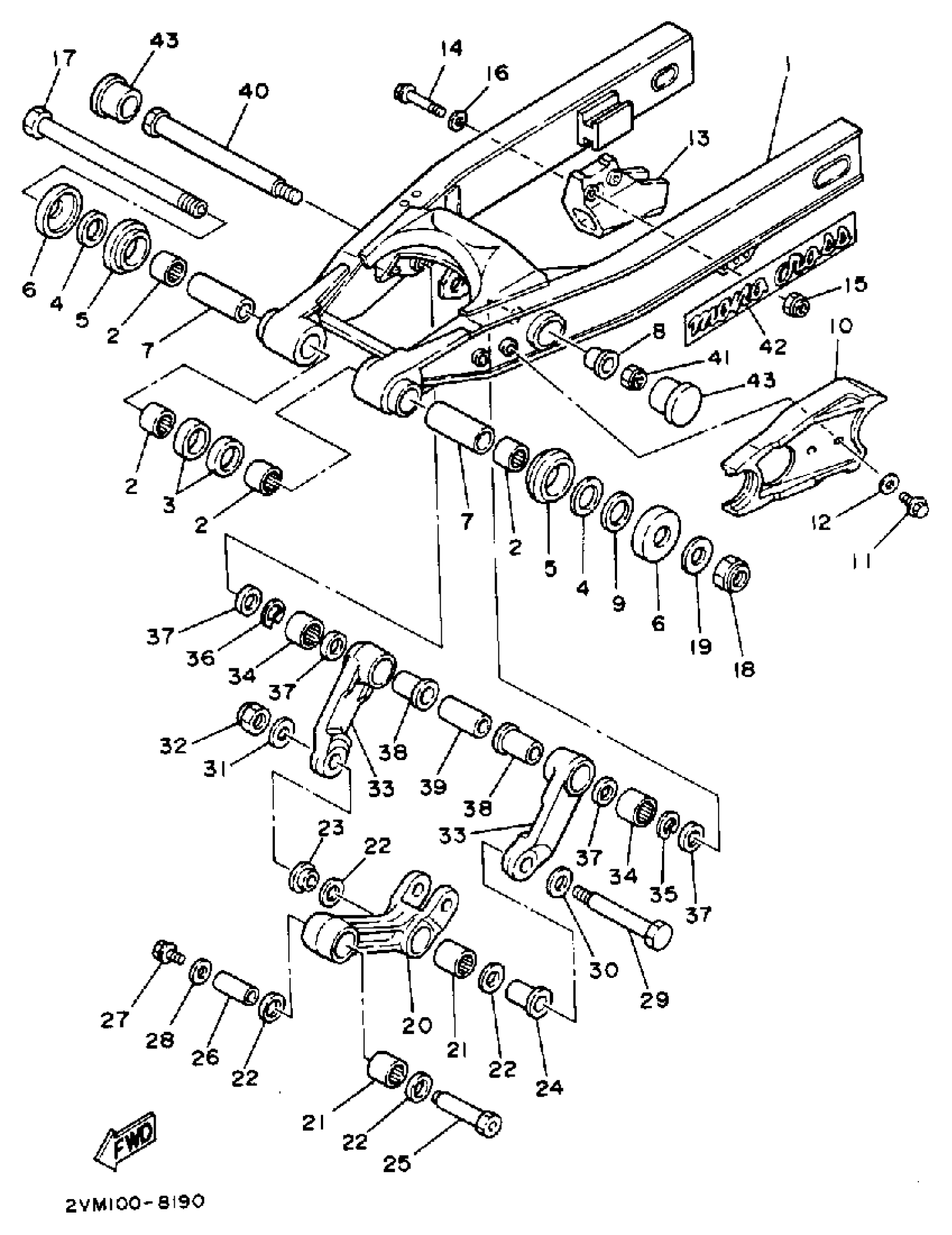

Yamaha YZ250U (YZ250) 1988 SWING ARM Diagram

#

Description
Price

1

REAR ARM

(2VM-22110-00-00)

Unavailable

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

2

BEARING, CYLINDRICAL

93317-22263-00

Unavailable

3

OIL SEAL (23X)

93106-22019-00

$11.49

4

BEARING, THRUST (3R7)

93342-22208-00

$33.99

5

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

6

COVER, THRUST2

3R4-22129-00-00

$32.99

7

BUSH, SOLID(1LV)

90380-16158-00

$31.99

8

BUSH, SOLID

90381-16060-00

Unavailable

9

SHIM,REAR ARM

240-22127-00-00

$6.99

10

SEAL, GUARD

1LX-22151-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, PLATE

90201-06380-00

$0.60

13

SUPPORT, CHAIN

39W-22199-01-00

$38.99

14

BOLT, FLANGE

95814-08045-00

$4.29

15

NUT, SELF-LOCKING

90185-08169-00

Unavailable

16

WASHER, PLAIN

92990-08200-00

Unavailable

17

SHAFT, PIVOT

5X4-22141-01-00

Unavailable

18

NUT, SELF-LOCKING

90185-16002-00

Unavailable

19

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

20

ARM, RELAY

2VM-2217A-00-00

Unavailable

21

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

22

OIL SEAL

93109-20076-00

Unavailable

23

COLLAR(1LV)

90387-164N2-00

Unavailable

24

COLLAR

90387-164N3-00

Unavailable

25

NUT

90179-10544-00

Unavailable

26

COLLAR

90387-166X1-00

Unavailable

27

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

28

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

29

BOLT

90109-142F4-00

Unavailable

30

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

31

WASHER PLATE (3L6)

90201-14740-00

Unavailable

32

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

33

ROD, CONNECTING 1

2VM-2217F-00-00

Unavailable

34

BEARING, CYLINDRICAL(3MH)

93315-32057-00

Unavailable

35

CIRCLIP, INNER

93450-28063-00

Unavailable

36

CIRCLIP, INNER

93450-28063-00

Unavailable

37

OIL SEAL

93109-20076-00

Unavailable

38

COLLAR

90387-164N3-00

Unavailable

39

COLLAR

90387-167R4-00

Unavailable

40

BOLT

90109-145E5-00

Unavailable

41

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

42

EMBLEM, REAR ARM

2HH-2218A-00-00

Unavailable

43

COVER

1HX-2135F-10-00

Unavailable
