Description

Price

1

GUIDE, WIRE

3R4-23389-00-00

$29.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

BEARING(4EW)

93332-00078-00

$64.99

4

COVER, BALL RACE 2

2HG-23416-00-00

Unavailable

5

NUT

90170-24373-00

Unavailable

6

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

7

CROWN, HANDLE

2HG-23435-00-98

Unavailable

8

NUT(2HG)

90179-28543-00

Unavailable

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

10

BOLT, FLANGE

95817-08035-00

$9.49

11

BOLT, FLANGE

95817-08040-00

$7.49

12

PLATE, NUMBER

3XJ-23485-01-00

$50.99

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

15

EMBLEM

2VN-23395-00-00

Unavailable

16

CAP

34K-2319U-00-00

Unavailable

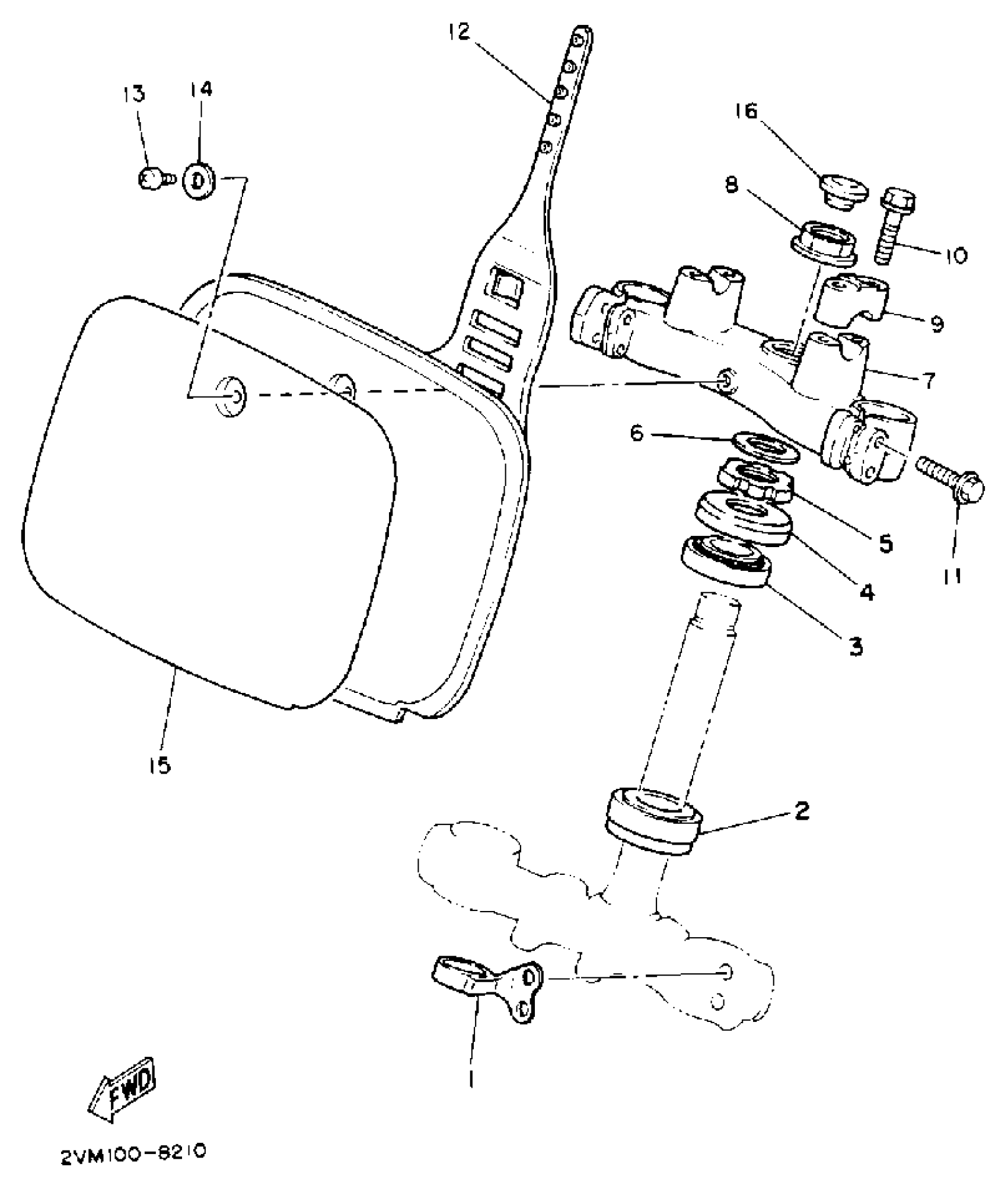

Yamaha YZ250U (YZ250) 1988 STEERING Diagram

GUIDE, WIRE

BEARING(4EW)

BEARING(4EW)

COVER, BALL RACE 2

NUT

WASHER, PLATE(2VM)

CROWN, HANDLE

NUT(2HG)

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT, FLANGE

PLATE, NUMBER

SCREW, PAN HEAD(62J)

WASHER, PLATE (583 REAR FENDER

EMBLEM

CAP
