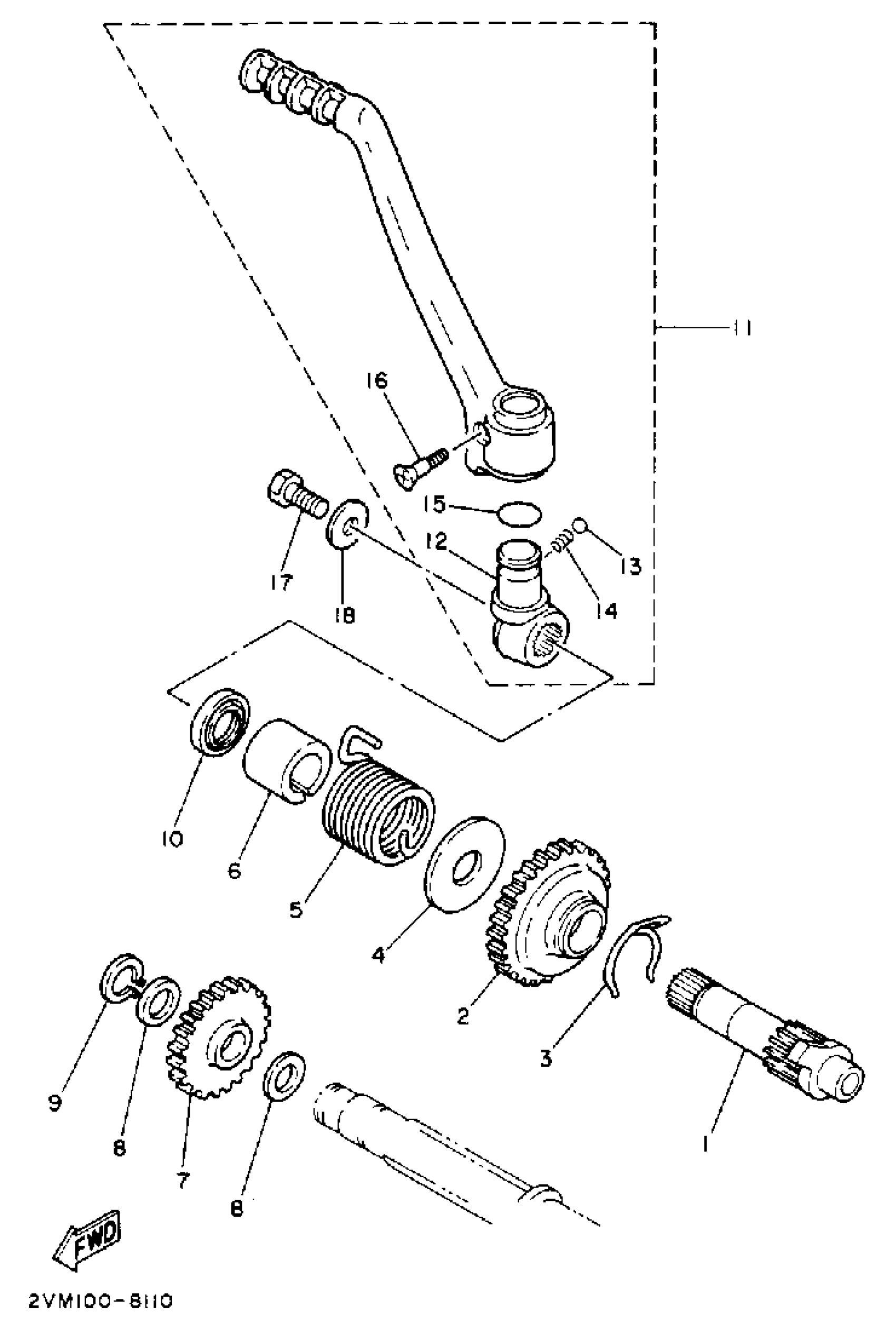

Yamaha YZ250U (YZ250) 1988 STARTER Diagram

KICK AXLE ASY

4JW-15660-00-00

Unavailable

GEAR, KICK

3R4-15641-00-00

Unavailable

CLIP 315156870000

90468-26048-00

$8.49

WASHER, PLATE

90201-20358-00

Unavailable

SPRING, TORSION(2VM)

90508-30743-00

$18.99

GUIDE, SPRING

2VM-15664-00-00

Unavailable

GEAR, KICK IDLE (23T)

38V-15651-00-00

Unavailable

WASHER, PLATE (525)

90201-17545-00

$8.49

CIRCLIP(1EY)

99009-17400-00

$4.73

OIL SEAL,SD-TYPE

93102-20309-00

$10.49

KICK CRANK ASSY

4JW-15620-00-00

$240.99

BOSS,KICK CRANK

23X-15621-02-00

Unavailable

BALL

93501-04011-00

$8.49

SPRING, COMPRESSION (23X)

90501-13720-00

$8.49

O-RING

93210-19216-00

$5.60

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

BOLT, BUTTON

92017-08020-00

Unavailable

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable
