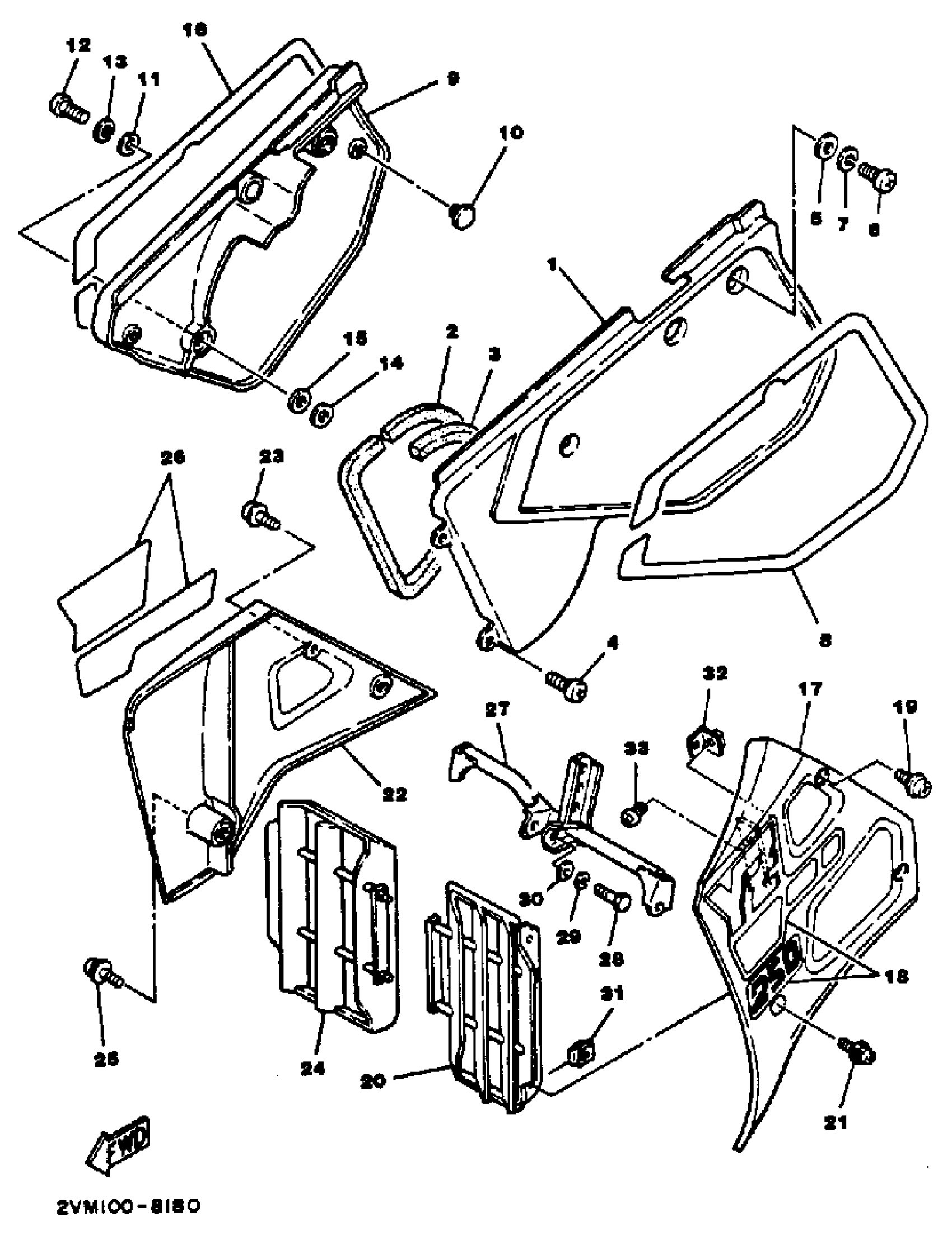

Yamaha YZ250U (YZ250) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2VM-21711-00-98

Unavailable

2

SEAL

39W-14452-00-00

Unavailable

3

SEAL

39X-14452-00-00

Unavailable

4

SCREW, WITH WASHER (517).

90159-06013-00

$9.49

5

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

6

SCREW, PAN

98507-06014-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

GRAPHIC SET 1

2VM-2173L-00-00

Unavailable

9

COVER, SIDE 2

2VM-21721-00-00

Unavailable

10

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

11

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE (4F4)

90201-063A5-00

$9.49

15

WASHER, PLAIN

92990-08200-00

Unavailable

16

GRAPHIC SET 2

2VM-2174L-00-00

Unavailable

17

COVER, SIDE 3

2VM-21731-00-00

Unavailable

18

GRAPHIC SET

2VM-24240-00-00

Unavailable

19

SCREW, WITH WASHER (517).

90159-06013-00

$9.49

20

PANEL 1

24Y-2172A-01-00

Unavailable

21

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

22

COVER, SIDE 4

2VM-21741-00-00

Unavailable

23

SCREW, WITH WASHER (517).

90159-06013-00

$9.49

24

PANEL 1

24Y-2172A-01-00

Unavailable

25

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

26

GRAPHIC SET

2VM-24250-00-00

Unavailable

27

GUARD, RADIATOR

2VM-2174F-00-00

Unavailable

28

BOLT, HEXAGON

97013-08050-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

Unavailable

31

NUT

22W-21791-00-00

Unavailable

32

BRACKET

2VM-2172K-00-00

Unavailable

33

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable
