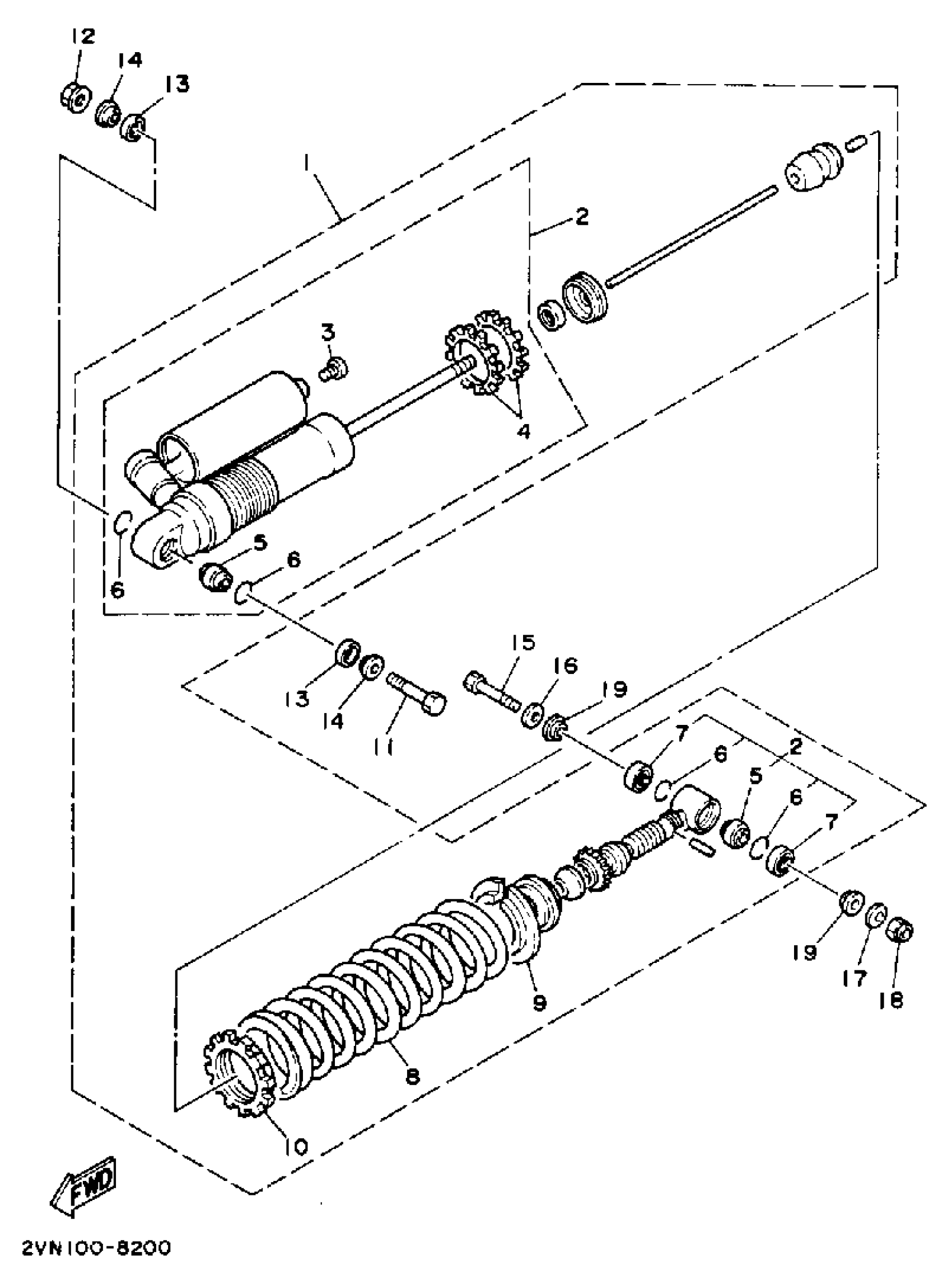

Yamaha YZ250U (YZ250) 1988 REAR SHOCKS Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REARASS''Y, REAR

2VM-22210-00-6W

Unavailable

2

. DAMPER SUB ASSEMBLY

2VM-22201-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

.. RING, HOLD

1LX-22225-00-00

Unavailable

5

BEARING(4GG)

93399-999T3-00

$62.99

6

CIRCLIP (23X)

93440-30113-00

$1.70

7

OIL SEAL (23X)

93104-18077-00

$11.49

8

. SPRING (550) (BLACK-BLUE)

1LV-22212-00-6W

Unavailable

8

SPRING (K=5.25)

1LV-22212-10-6W

Unavailable

8

SPRING

4BF-22212-00-P0

Unavailable

9

. GUIDE, SPRING 1

2VN-22214-00-00

Unavailable

10

. SEAT, SPRING LOWER

1LX-22223-00-00

Unavailable

11

BOLT

90109-10704-00

Unavailable

12

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

13

COVER

23X-22211-00-00

$11.99

14

COLLAR (23X)

90387-127G8-00

Unavailable

15

BOLT

90109-102E6-00

Unavailable

16

WASHER, PLATE

90201-12027-00

Unavailable

17

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

18

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

19

COLLAR (23X)

90387-126H8-00

Unavailable
