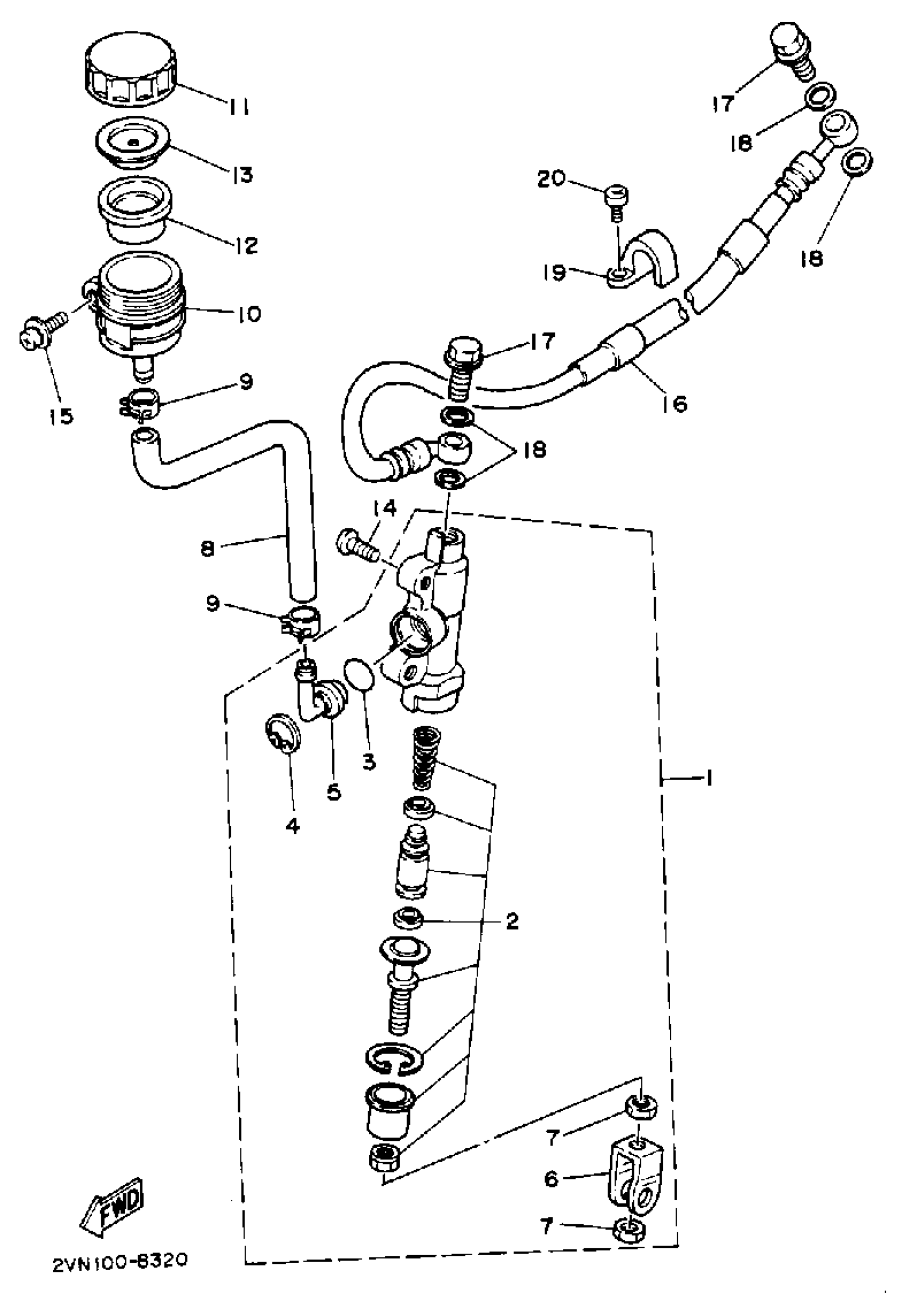

Yamaha YZ250U (YZ250) 1988 REAR MASTER CYLINDER Diagram

MSTR CYLINDER ASSEMBLY

2VN-25850-50-00

Unavailable

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

O-RING (22U)

93210-15566-00

$7.49

CIRCLIP

2VN-25866-00-00

$6.99

JOINT

2VN-2582A-50-00

$20.99

. JOINT

2VN-27222-00-00

Unavailable

NUT(6L2)

95333-08600-00

$2.49

HOSE, RESERVOIR

2VN-25895-00-00

Unavailable

CLIP (7K7)

90467-11044-00

$8.49

TANK, RESERVOIR

2VN-25894-00-00

$20.99

CAP, RESERVOIR

3XP-25852-50-00

$22.99

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

BOLT, BUTTON

92014-06016-00

$8.49

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

HOSE,BRAKE 1

99999-03038-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable
