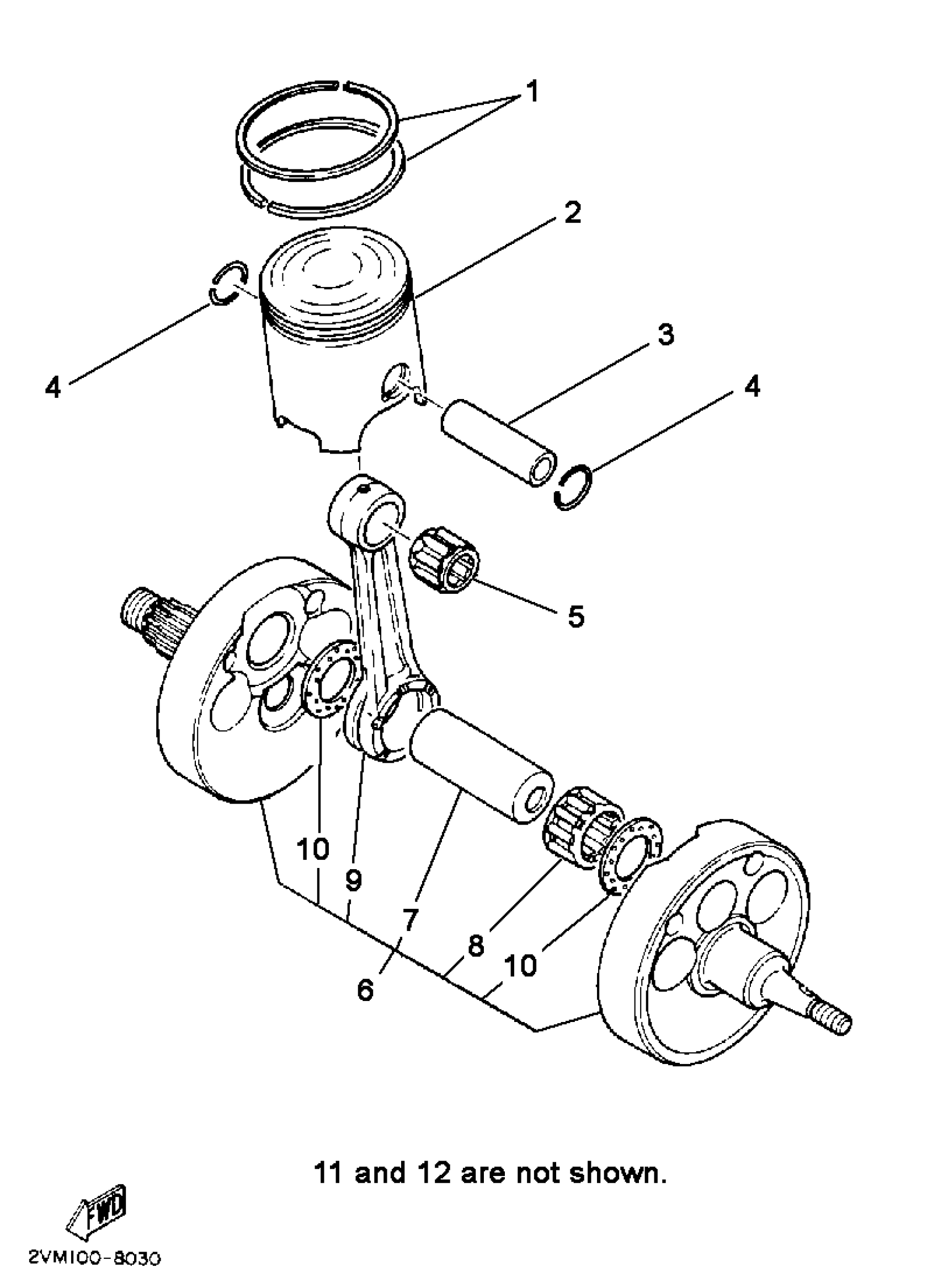

Yamaha YZ250U (YZ250) 1988 PISTON AND CON ROD ASSEMBLY Diagram

#

Description
Price

1

PISTON (STD)

3JE-11631-01-93

Unavailable

1

PISTON (0.75MM O/S)

3JE-11637-01-00

Unavailable

1

PISTON (0.25MM O/S)

3JE-11635-01-00

Unavailable

1

PISTON (0.50MM O/S)

3JE-11636-01-00

Unavailable

2

PISTON RING SET (STD)

56A-11601-00-00

Unavailable

2

PISTON RING SET (0.25MM O/S)

56A-11601-10-00

Unavailable

2

PISTON RING SET (0.50MM O/S)

56A-11601-20-00

Unavailable

2

PISTON RING SET (0.75MM O/S)

56A-11601-30-00

Unavailable

3

PIN, PISTON

2VM-11633-01-00

Unavailable

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

. CONNECTING ROD ASSEMBLY

24Y-11650-01-00

Unavailable

7

PIN, CRANK

2X4-11681-00-00

$81.99

8

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

9

. ROD, CONNECTING

24Y-11651-01-00

Unavailable

10

WASHER 275116850000

90209-25085-00

Unavailable

11

PISTON ASSEMBLY (0.25MM O/S) (3JE-11630-10-00)

3JE-11630-11-00

Unavailable

11

PISTON ASSEMBLY (0.50MM O/S) (3JE-11630-20-00)

3JE-11630-21-00

Unavailable

12

PISTON ASSY (STD)

3JE-11630-01-00

Unavailable

12

PISTON KIT (3 0/S)

3JE-11630-31-00

Unavailable
