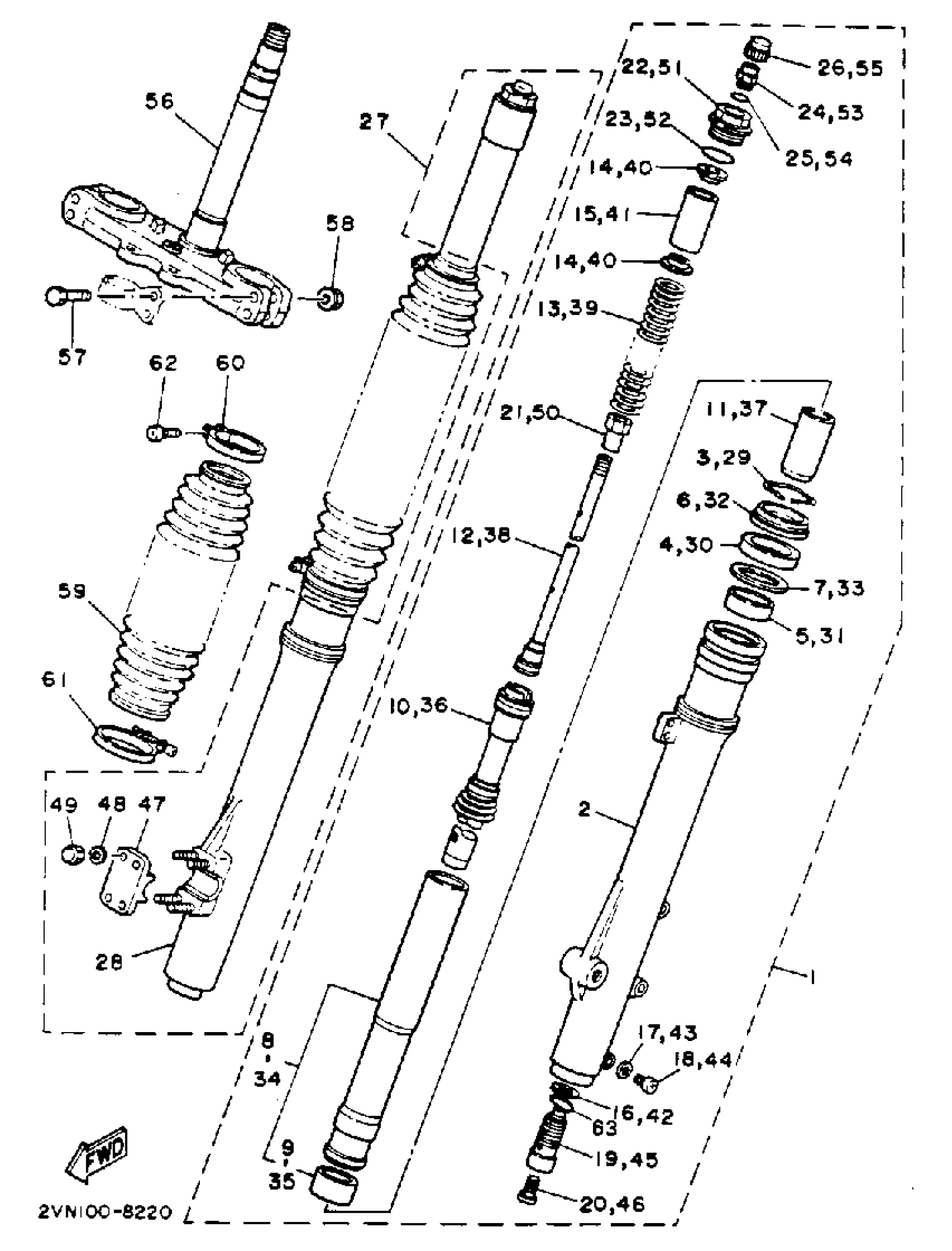

Yamaha YZ250U (YZ250) 1988 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

2VM-23102-L0-00

Unavailable

2

. TUBE, OUTER 1

2VM-23126-L0-00

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

3XJ-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

2VM-23144-L0-00

$25.99

7

WASHER

4V4-23146-L0-00

$6.99

8

. INNER TUBE COMP1

2VM-23110-L0-00

Unavailable

9

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

10

. CYLINDERCOMP, FRTFORK

2VM-23170-L0-00

Unavailable

11

. SPINDLE, TAPER

2VM-23173-L0-00

Unavailable

12

. PISTON ROD ASSEMBLY

2VN-2314A-L0-00

Unavailable

13

. SPRING, FFRK (375)

2VM-23141-L0-00

Unavailable

13

. SPRING, FFRK (400 (HARD))

2VM-23141-M0-00

Unavailable

13

. SPRING, FFRK (350 (SOFT))

2VN-23141-L0-00

Unavailable

14

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

15

. SPACER

2VM-23118-L0-00

Unavailable

15

. SPACER

2VN-23118-L0-00

Unavailable

16

GASKET

2HH-23158-L0-00

Unavailable

17

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

19

. VALVE, COMP

2VM-2316A-L0-00

Unavailable

20

PLUG

55Y-2312G-M0-00

Unavailable

21

. NUT

90170-10372-00

Unavailable

22

BOLT, CAP

2VM-23111-L0-00

Unavailable

23

O-RING

4V4-23188-L1-00

Unavailable

24

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

25

O-RING

3J2-23147-00-00

Unavailable

26

COVER, VALVE

2VN-23185-L0-00

Unavailable

27

FRONT FORK ASSEMBLY R

2VM-23103-L0-00

Unavailable

28

. TUBE, OUTER 2

2VM-23136-L0-00

Unavailable

29

RING, SNAP

4V4-23153-L0-00

$9.99

30

OIL SEAL

3XJ-23145-L0-00

$32.99

31

METAL, SLIDE 1

5EB-23125-00-00

$32.99

32

SEAL, DUST

2VM-23144-L0-00

$25.99

33

WASHER

4V4-23146-L0-00

$6.99

34

. INNER TUBE COMP1

2VM-23110-L0-00

Unavailable

35

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

36

. CYLINDERCOMP, FRTFORK

2VM-23170-L0-00

Unavailable

37

. SPINDLE, TAPER

2VM-23173-L0-00

Unavailable

38

. PISTON ROD ASSEMBLY

2VN-2314A-L0-00

Unavailable

39

. SPRING, FFRK (375)

2VM-23141-L0-00

Unavailable

39

. SPRING, FFRK (400 (HARD))

2VM-23141-M0-00

Unavailable

39

. SPRING, FFRK (350 (SOFT))

2VN-23141-L0-00

Unavailable

40

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

41

. SPACER

2VM-23118-L0-00

Unavailable

41

. SPACER

2VN-23118-L0-00

Unavailable

42

GASKET

2HH-23158-L0-00

Unavailable

43

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

44

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

45

. VALVE, COMP

2VM-2316A-L0-00

Unavailable

46

PLUG

55Y-2312G-M0-00

Unavailable

47

HOLDER, AXLE

1LX-23167-L0-00

Unavailable

48

WASHER, SPRING

92995-06100-00

Unavailable

49

NUT

5Y3-23393-00-00

Unavailable

50

. NUT

90170-10372-00

Unavailable

51

BOLT, CAP

2VM-23111-L0-00

Unavailable

52

O-RING

4V4-23188-L1-00

Unavailable

53

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

54

O-RING

3J2-23147-00-00

Unavailable

55

COVER, VALVE

2VN-23185-L0-00

Unavailable

56

UNDER BRACKET COMP

2VM-23340-L0-00

Unavailable

57

BOLT, WASHER BASED

90105-08463-00

Unavailable

58

NUT, FLANGE

95704-08500-00

Unavailable

59

BOOT, FRONT FORK

43M-23191-L0-00

Unavailable

60

BAND

43M-23192-L0-00

Unavailable

61

BAND

3LD-23489-00-00

Unavailable

62

SCREW, PAN HEAD

98507-04018-00

Unavailable

63

O-RING

2VM-00000-00-00

Unavailable
