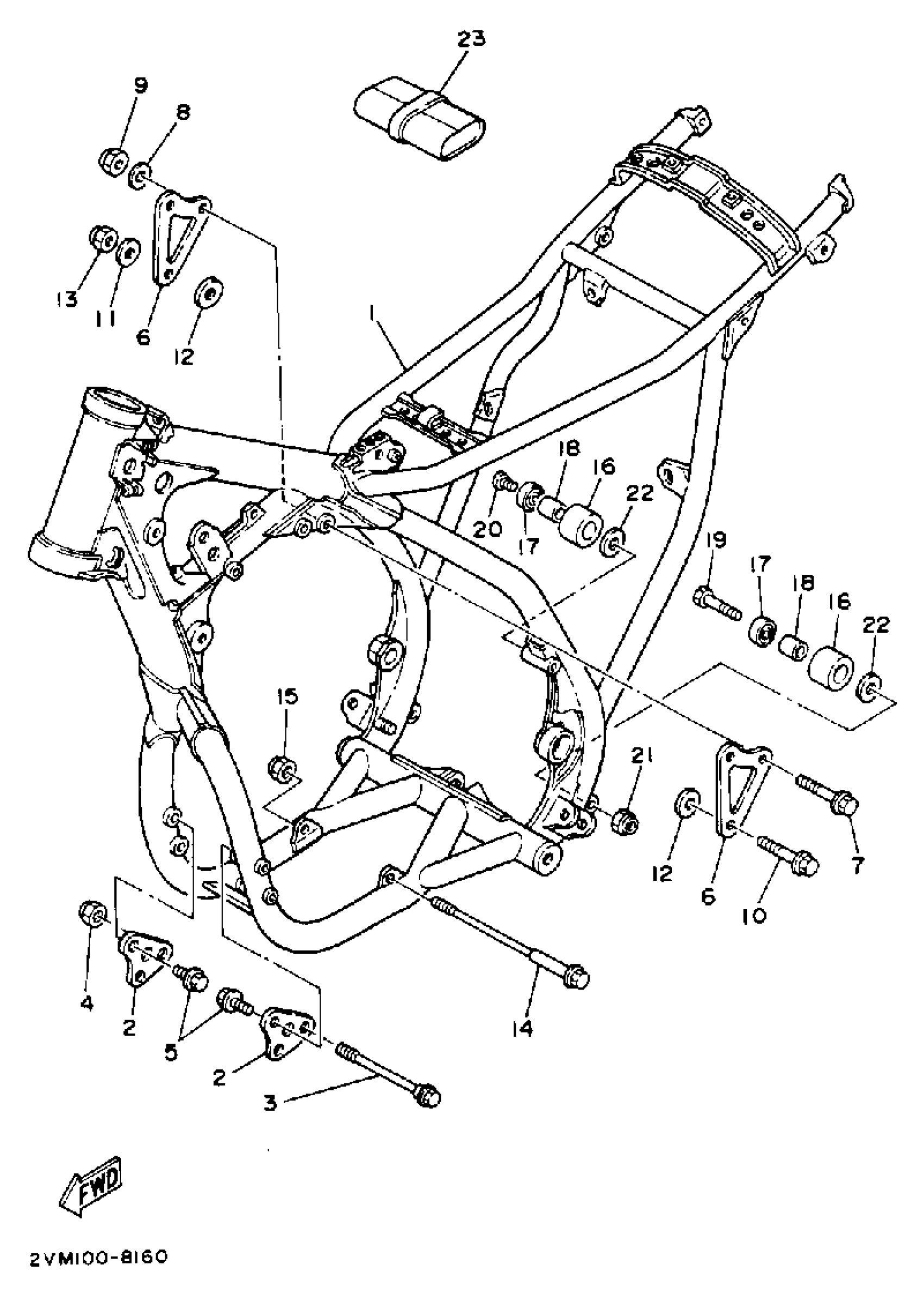

Yamaha YZ250U (YZ250) 1988 FRAME Diagram

#

Description
Price

1

FRAME

2VM-21110-00-UJ

Unavailable

2

BRACKET, FRONT UPPER 1

24Y-21415-00-00

Unavailable

3

BOLT, WASHER BASED

90105-08498-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

BOLT, FLANGE

95817-08040-00

$7.49

6

BRACKET, REAR UPPER 1

2VM-21425-00-00

Unavailable

7

BOLT, FLANGE

95817-08055-00

$4.21

8

WASHER 6464313202

90202-08022-00

$4.14

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

WASHER, PLATE(47X)

90201-101J1-00

$8.49

13

NUT, SELF-LOCKING

90185-10170-00

$9.49

14

BOLT, WASHER BASED(3RB)

90105-10733-00

$4.51

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

16

TENSIONER

2HH-22178-00-00

Unavailable

17

BEARING (3X3)

93300-60804-00

Unavailable

18

COLLAR(1NL)

90387-086N4-00

Unavailable

19

BOLT, FLANGE (3JPE)

95024-08045-00

Unavailable

20

BOLT, BUTTON

92017-08060-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

$8.49

22

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

23

TOOL KIT (1LU-28100-00)

1LX-28100-00-00

Unavailable
