Description

Price

1

CRANKCASE 1

2VM-15111-06-00

Unavailable

2

BOLT,SOCKET

91317-06050-00

$3.88

3

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

4

SCREW, FLAT

98707-06012-00

$8.49

5

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

6

HOSE (L1500)

90445-084J0-00

$18.99

7

CRANKCASE 2

2VM-15121-03-00

Unavailable

8

PIN, DOWEL

99530-12016-00

$4.89

9

COLLAR

90387-160H4-00

Unavailable

10

PLATE, COVER

4L0-17471-00-00

$20.99

11

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

12

HOLDER

4V4-15118-00-00

$29.99

13

BOLT, FLANGE

95812-06010-00

$2.98

14

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

15

GASKET (3JD1)

90430-12207-00

$7.99

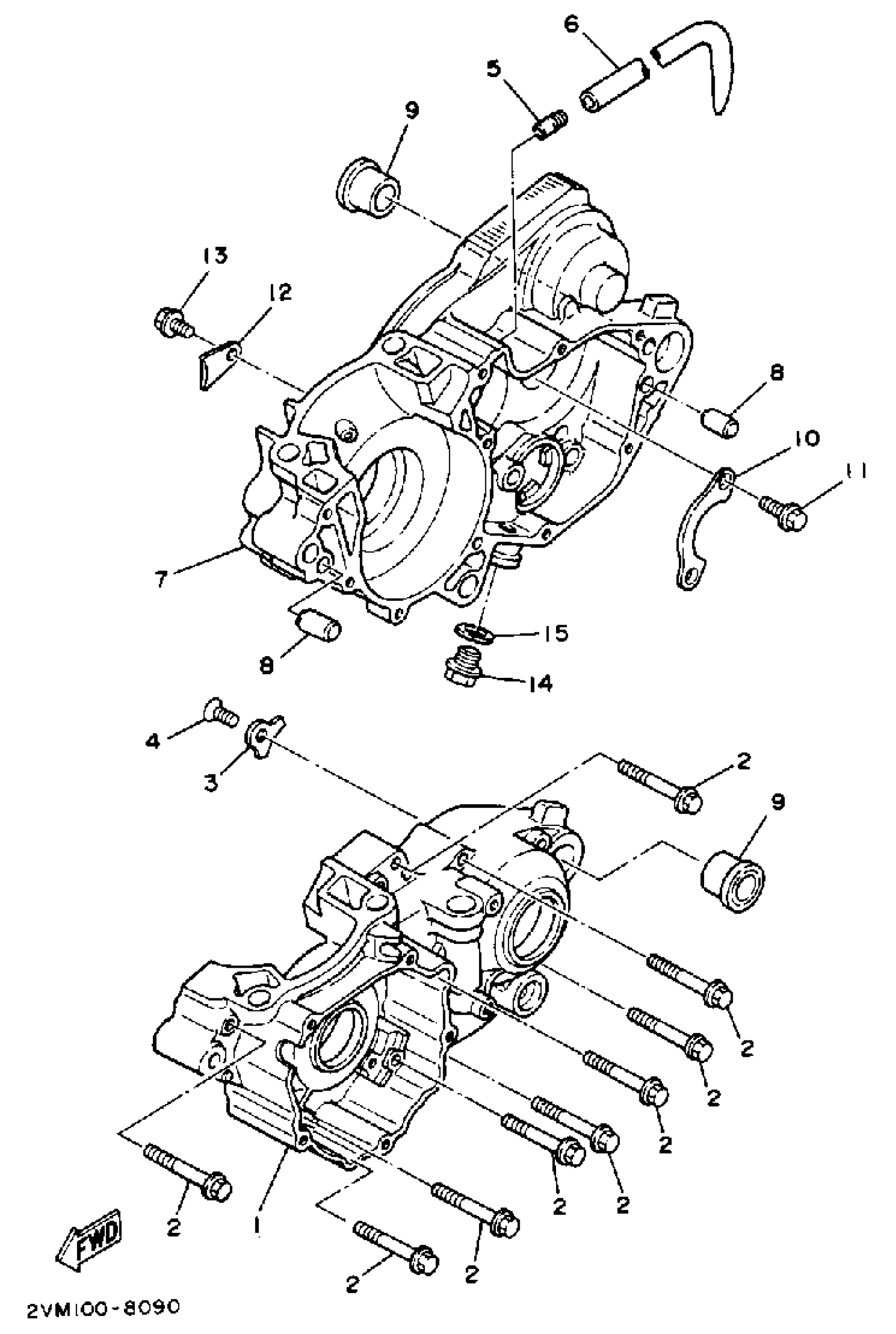

Yamaha YZ250U (YZ250) 1988 CRANKCASE Diagram

CRANKCASE 1

BOLT,SOCKET

PLATE, BEARING COVER

SCREW, FLAT

CONNECTOR, SUCTION PIPE

HOSE (L1500)

CRANKCASE 2

PIN, DOWEL

COLLAR

PLATE, COVER

SCREW, PAN HEAD(62J)

HOLDER

BOLT, FLANGE

PLUG, STRAIGHT SCREW (22F)

GASKET (3JD1)
