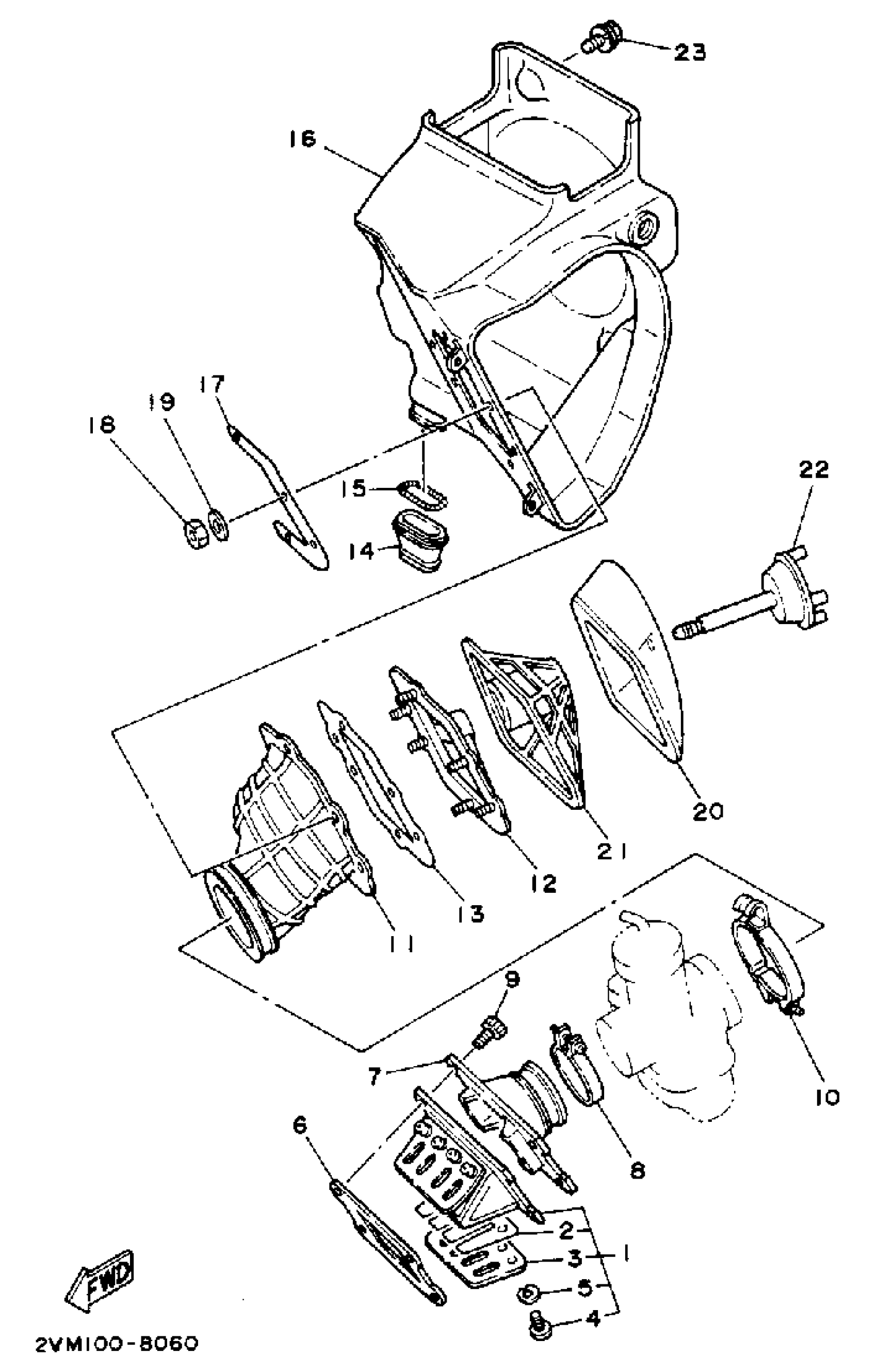

Yamaha YZ250U (YZ250) 1988 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

56A-13610-01-00

Unavailable

2

REED,VALVE

8AB-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

56A-13616-00-00

Unavailable

4

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

39X-13621-11-00

Unavailable

7

JOINT, CARBURETOR

2VM-13565-00-00

Unavailable

8

CLAMP, HOSE

90460-51109-00

Unavailable

9

. BOLT, FLANGE

95027-06020-00

Unavailable

10

CLAMP, HOSE

90460-68231-00

Unavailable

11

JOINT, AIR CLNR 1

2VM-14453-00-00

Unavailable

12

HOLDER, GUIDE

55Y-14459-01-00

Unavailable

13

SEAL

39W-14462-00-00

Unavailable

14

SEAL

39K-14457-00-00

Unavailable

15

SPRING, COMPRESSION

90504-03033-00

Unavailable

16

AIR CLEANER CASE

2VM-W1441-00-00

Unavailable

17

PLATE

2VM-14477-00-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

ELEMENT, AIR CLNR

2VM-14451-00-00

Unavailable

21

GUIDE, ELEMENT

2VM-14458-00-00

Unavailable

22

PLATE, ELEMENT FTNG

2VM-14468-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable
