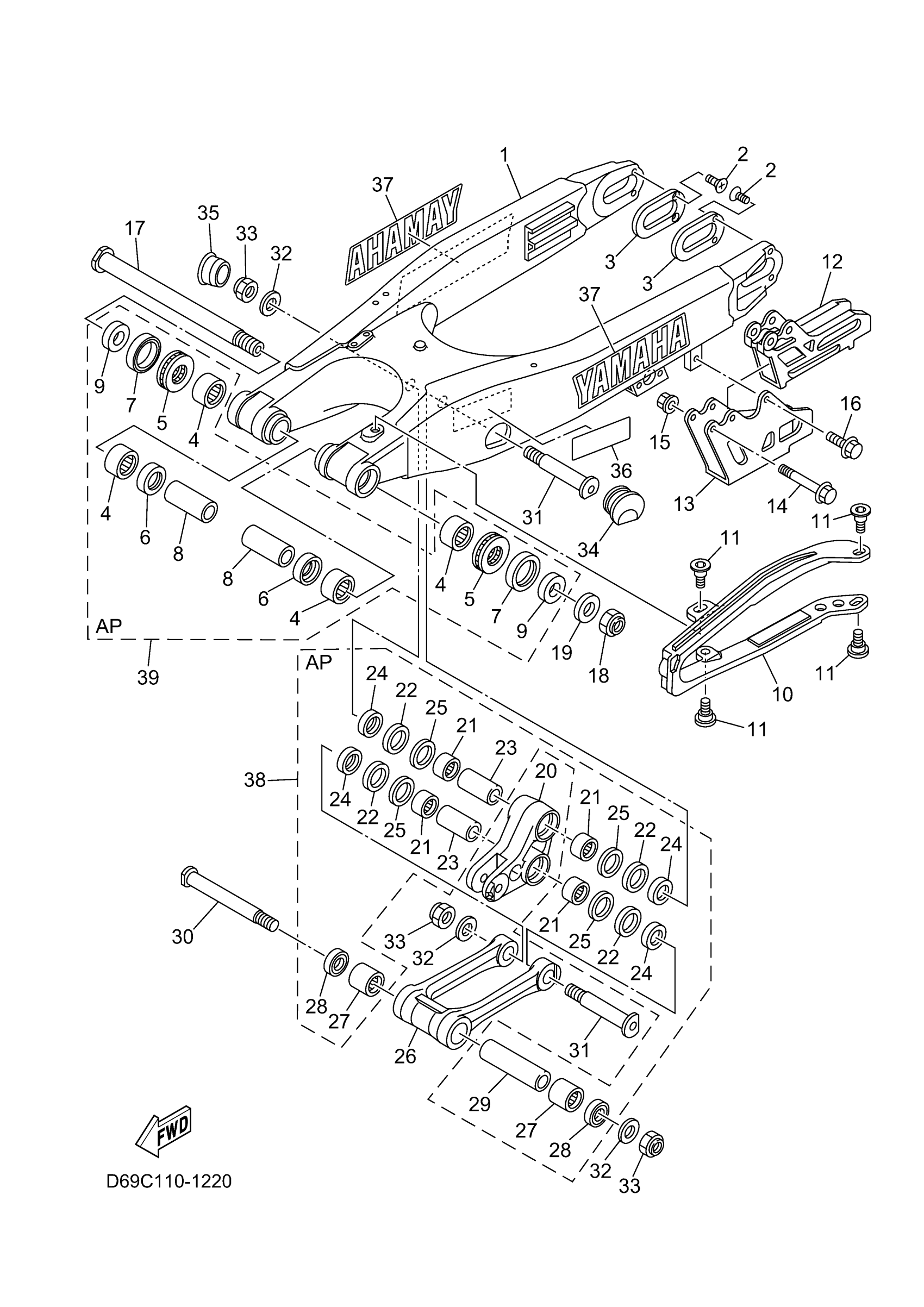

Yamaha YZ250TSE (YZ250 70TH ANNIVERSARY) D69C 2026 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

1C3-22110-A0-00

$935.99

2

SCREW, COUNTERSUNK

90151-04004-00

$2.34

3

PATCH

1DX-22355-00-00

$16.49

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

5

BEARING

93342-22217-00

$41.99

6

OIL SEAL

93106-22002-00

$12.49

7

OIL SEAL (36F)

93109-28043-00

$11.49

8

COLLAR

90387-18004-00

$30.99

9

COLLAR

90387-18012-00

$28.99

10

SEAL, GUARD

2S2-22151-70-00

$59.99

11

SCREW, 1

1C3-22969-90-00

$6.99

12

SUPPORT, CHAIN

2S2-22199-70-00

$69.99

13

COVER, THRUST 1

2S2-22128-70-00

$32.99

14

BOLT, FLANGE DEEPRECESS

95E32-06050-00

$0.43

15

NUT

90179-06028-00

$4.82

16

BOLT, FLANGE DEEP RECESS

95E32-06010-00

Unavailable

17

SHAFT, PIVOT

1C3-22141-10-00

Unavailable

18

NUT, SELF-LOCKING

90185-16002-00

Unavailable

19

WASHER, PLATE

90201-16018-00

Unavailable

20

ARM, RELAY

1C3-2217A-00-00

Unavailable

21

BEARING

93315-32166-00

Unavailable

22

OIL SEAL

93109-25001-00

Unavailable

23

COLLAR

90387-16025-00

Unavailable

24

WASHER

90209-16011-00

Unavailable

25

WASHER, PLATE

90201-21014-00

Unavailable

26

ROD, CONNECTING 1

1C3-2217F-50-00

Unavailable

27

BEARING

93315-32166-00

Unavailable

28

OIL SEAL

93109-21001-00

Unavailable

29

COLLAR

90387-14016-00

Unavailable

30

SHAFT 1

1C3-22121-00-00

Unavailable

31

SHAFT 2

1C3-22122-00-00

Unavailable

32

WASHER, PLATE

90201-14020-00

Unavailable

33

NUT, SELF-LOCKING

90185-14010-00

Unavailable

34

COVER

1C3-2135F-00-00

Unavailable

35

COVER 2

1C3-2139R-00-00

Unavailable

36

LABEL, TIRE

3RV-21668-A1-00

Unavailable

37

EMBLEM, YAMAHA

D03-2153E-00-00

Unavailable

38

SHOCK LINKAGE BEARING KIT

B1B-W002E-00-00

Unavailable

39

SWING ARM PIVOT BEARING KIT

1HC-W002C-00-00

Unavailable
