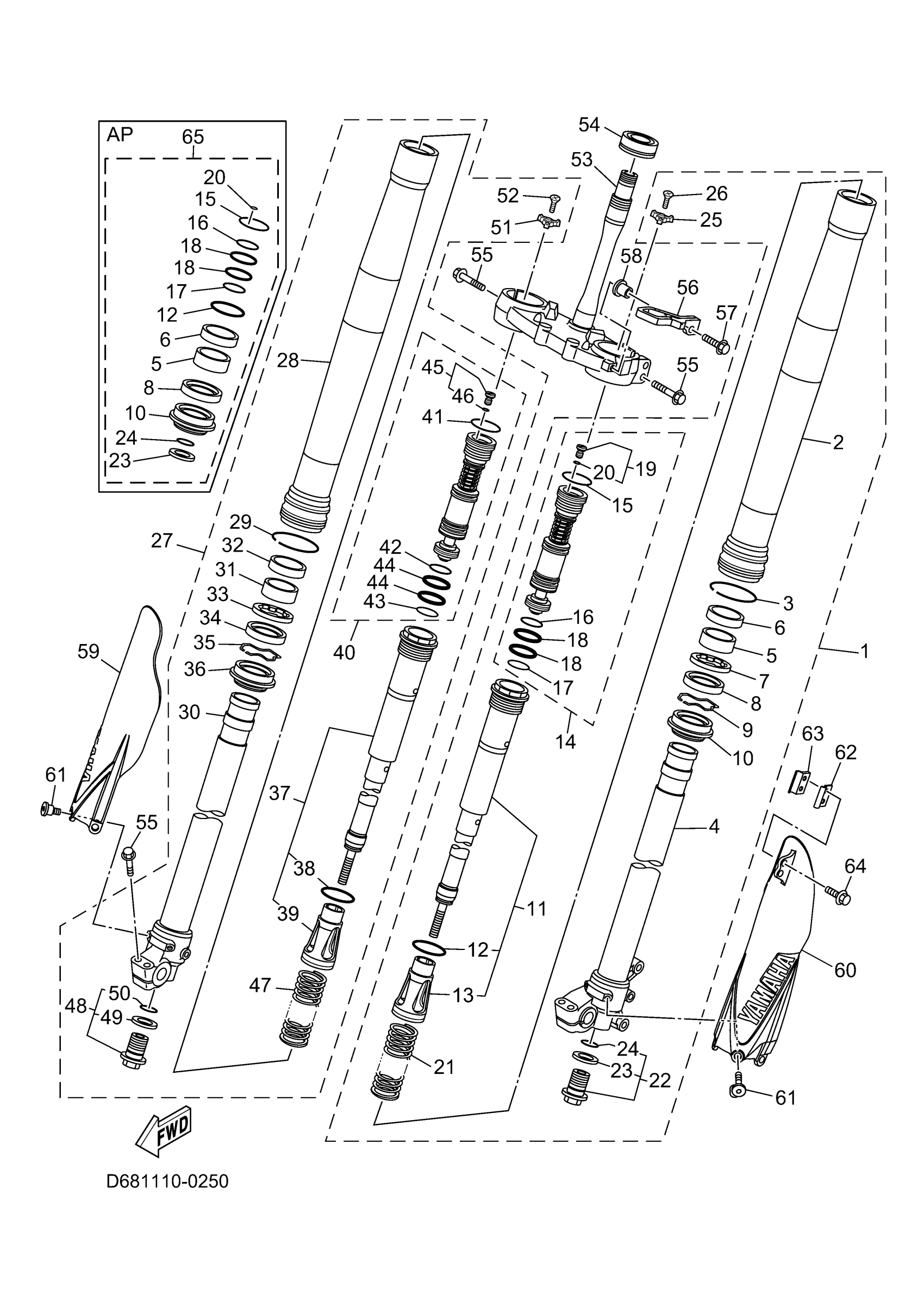

Yamaha YZ250TSE (YZ250 70TH ANNIVERSARY) D69C 2026 FRONT FORK Diagram
#
2
TUBE, OUTER
1SS-23136-00-00
Unavailable
11
CYLINDER COMP., FR
BCR-23170-00-00
Unavailable
16
O-RING
1C3-23188-N0-00
Unavailable
17
O-RING
1C3-23188-P0-00
Unavailable
18
O-RING
1AE-23147-01-00
Unavailable
19
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
20
O-RING
1C3-23188-R1-00
Unavailable
21
SPRING, FRONT FORK
B3J-23141-40-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-02-00
Unavailable
25
CAP
BHR-2319W-00-00
Unavailable
26
SCREW
1MC-23119-10-00
Unavailable
27
FRONT FORK ASSY (R
D69-23103-00-00
Unavailable
28
TUBE, OUTER
1SS-23136-00-00
Unavailable
30
INNER TUBE COMP.1
BCR-23110-00-00
Unavailable
37
CYLINDER COMP., FR
BCR-23170-00-00
Unavailable
42
O-RING
1C3-23188-N0-00
Unavailable
43
O-RING
1C3-23188-P0-00
Unavailable
44
O-RING
1AE-23147-01-00
Unavailable
45
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
46
O-RING
1C3-23188-R1-00
Unavailable
47
SPRING, FRONT FORK
B3J-23141-40-00
Unavailable
48
BOLT, CAP
5XC-23111-01-00
Unavailable
49
GASKET
2HH-23158-L0-00
Unavailable
50
GASKET
276-23114-02-00
Unavailable
51
CAP
BHR-2319W-00-00
Unavailable
52
SCREW
1MC-23119-10-00
Unavailable
53
UNDER BRACKET COMP.
1SS-23340-10-00
Unavailable
54
BEARING(4SR)
93332-00081-00
Unavailable
55
BOLT, FLANGE DEEP RECESS
95E34-08035-00
Unavailable
56
GUIDE, CABLE
BF1-23389-00-00
Unavailable
57
BOLT, FLANGE DEEP RECESS
95E32-06016-00
Unavailable
58
COLLAR
90387-06104-00
Unavailable
59
PROTECTOR 2
17D-2315J-50-00
Unavailable
60
PROTECTOR 1
17D-2315H-50-00
Unavailable
61
BOLT
90109-06232-00
Unavailable
62
CLAMP
17D-23466-00-00
Unavailable
63
CLAMP
17D-23467-00-00
Unavailable
64
BOLT, FLANGE
90105-06170-00
Unavailable
65
FORK SEAL KIT (ONE FORK)
BCR-W003B-00-00
Unavailable
