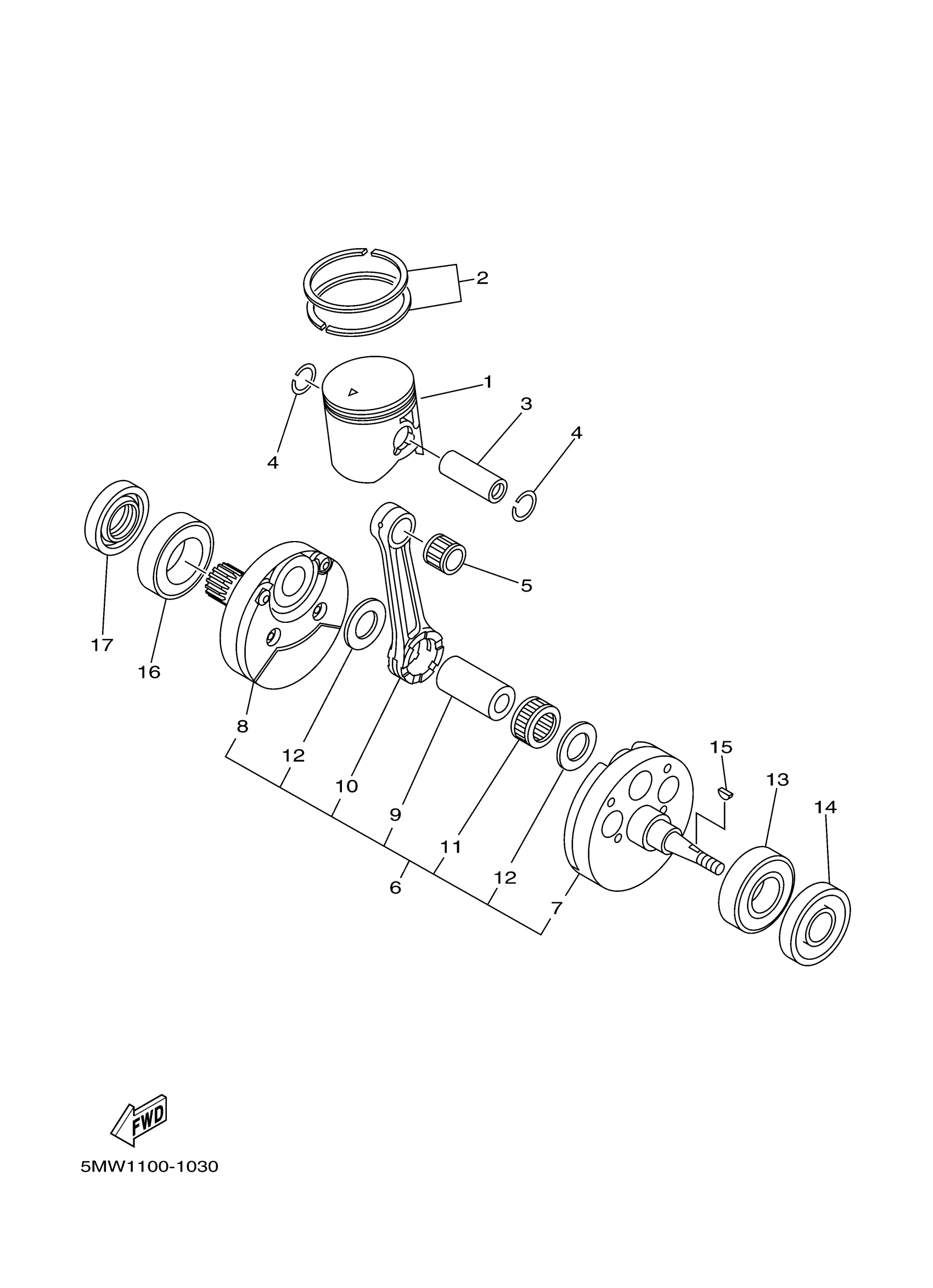

Yamaha YZ250TSE (YZ250 70TH ANNIVERSARY) D69C 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

PISTON (STD)

1P8-11631-00-A0

$118.99

1

PISTON (STD)

1P8-11631-00-B0

$118.99

1

PISTON (STD)

1P8-11631-00-C0

$118.99

1

PISTON (STD)

1P8-11631-00-D0

$118.99

2

PISTON RING SET (STD)

5CU-11603-11-00

$49.99

3

PIN, PISTON

5UP-11633-00-00

$35.99

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

6

CRANKSHAFT ASSY

5UP-11400-10-00

$660.99

7

CRANKSHAFT

5UP-11410-10-00

Unavailable

8

CRANKSHAFT

5MW-11420-10-00

Unavailable

9

PIN, CRANK 1

5CU-11681-00-00

$66.99

10

ROD, CONNECTING

5MW-11651-00-00

$170.99

11

BEARING

93310-52406-00

$106.99

12

WASHER(4DP)

90209-24327-00

$44.99

13

BEARING

93306-37808-00

Unavailable

14

OIL SEAL

93102-20485-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BEARING

93306-37808-00

Unavailable

17

OIL SEAL

93102-28004-00

Unavailable
