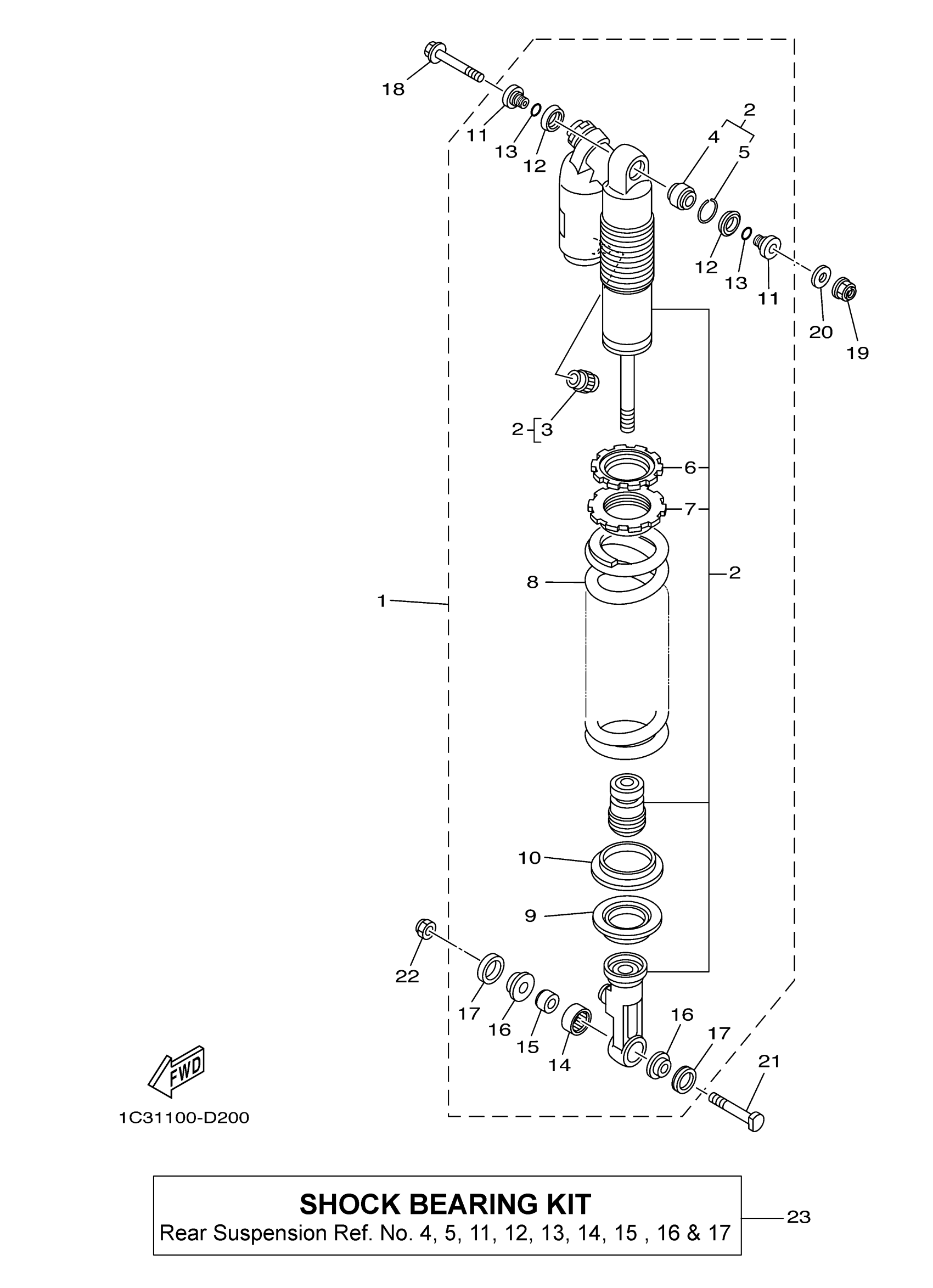

Yamaha YZ250T1 (YZ250) 1P81 2005 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

1P8-22210-00-00

Unavailable

2

. DAMPER SUB ASSY

1P8-22201-00-00

Unavailable

3

CAP, AIR VALVE

509-23184-L0-00

$6.99

4

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

5

CIRCLIP

5DH-23183-00-00

$5.49

6

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

7

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

8

. SPRING (K=48N/MM)

5UN-22212-30-00

Unavailable

9

GUIDE, SPRING 1

5XE-22214-00-00

Unavailable

10

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

11

. COLLAR, DISTANCE

1C3-22253-00-00

Unavailable

12

SEAL, DUST

3JE-22475-00-00

$13.49

13

SEAL, RING

4EW-22474-00-00

$6.99

14

BEARING

5UN-22176-00-00

$32.99

15

BUSH

5MV-22184-00-00

$25.99

16

COLLAR, DISTANCE

5MV-22253-00-00

Unavailable

17

SEAL, DUST

5NY-22475-00-00

Unavailable

18

BOLT 2

5XE-22242-01-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

21

BOLT 1

5NY-22241-00-00

Unavailable

22

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

23

SHOCK BEARING KIT

5TJ-W002G-00-00

Unavailable
