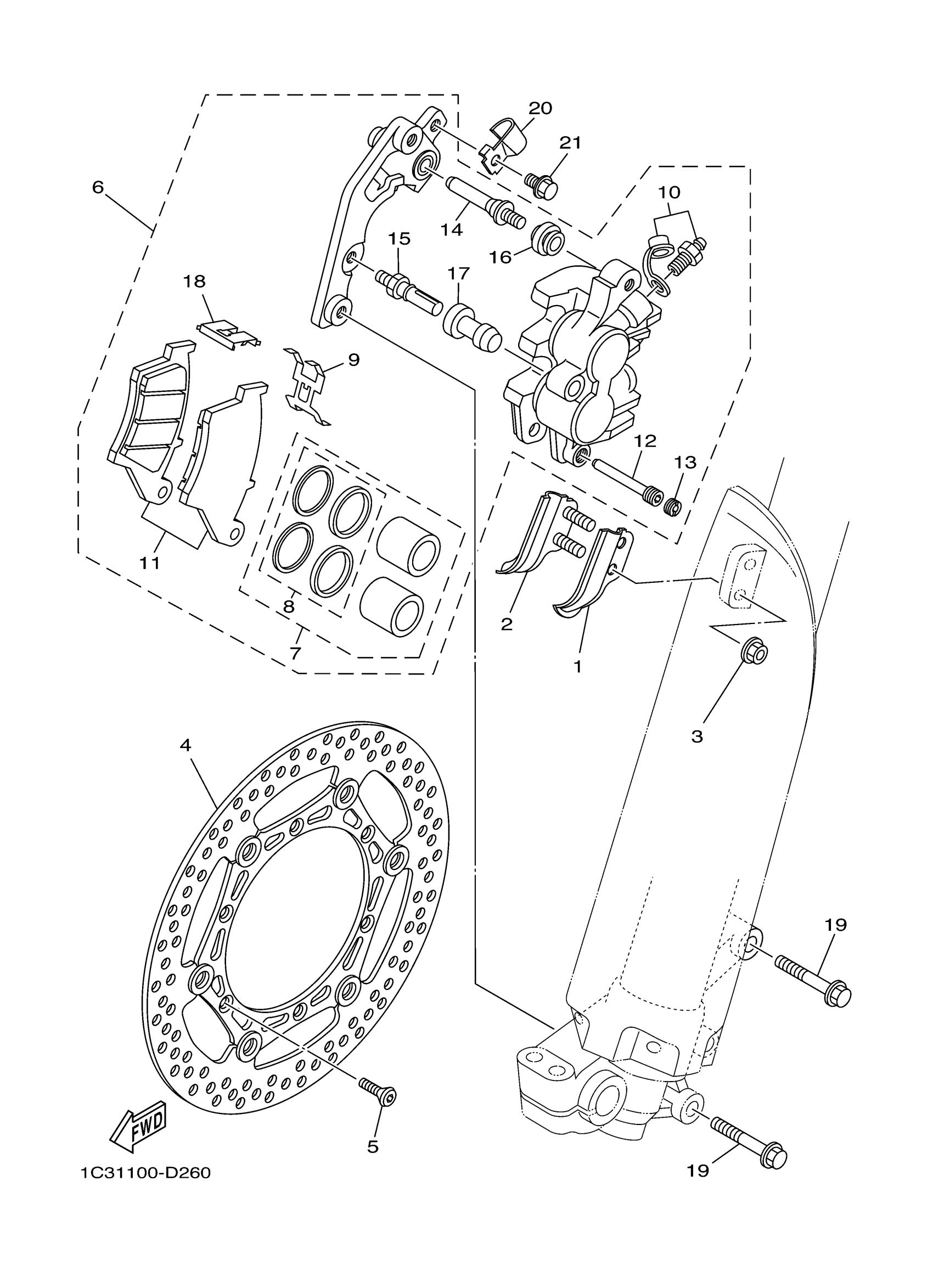

Yamaha YZ250T1 (YZ250) 1P81 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

CLAMP

1C3-23466-50-00

$6.48

2

CLAMP

1C3-23467-50-00

$12.76

3

NUT, FLANGE(4MV)

95707-06500-00

$0.73

4

DISC BRAKE ASSY

5MV-2581T-00-00

$197.65

5

SCREW, COUNTERSUNK

90151-06080-00

$1.21

6

CALIPER ASSY (LEFT)

1C3-2580T-00-00

$440.97

7

PISTON ASSY, CALIPER

5UN-W0057-00-00

$60.58

8

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

9

SUPPORT, PAD

5DH-25919-00-00

$16.55

10

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

11

BRAKE PAD KIT

5MV-W0045-01-00

$35.12

12

PIN, PAD

5DH-25933-00-00

$16.24

13

PLUG

5DH-25916-00-00

$6.94

14

BOLT

3SP-25926-51-00

$10.74

15

BOLT

3SP-25914-51-00

$3.67

16

BOOT, CALIPER

3JD-25917-00-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

RETAINER, CALIPER

5DH-25849-00-00

Unavailable

19

BOLT, FLANGE

95817-08035-00

Unavailable

20

HOLDER, BRAKE HOSE 1

1C3-25875-50-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
