Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5XE-21610-00-00

$61.99

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

BOLT, FLANGE

90105-06090-00

$8.49

8

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

9

BOLT, FLANGE

90105-06091-00

$5.60

10

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

11

GUARD, FLAP

5UN-21642-10-00

$16.49

12

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

17

EMBLEM 1

5XF-2163G-00-00

Unavailable

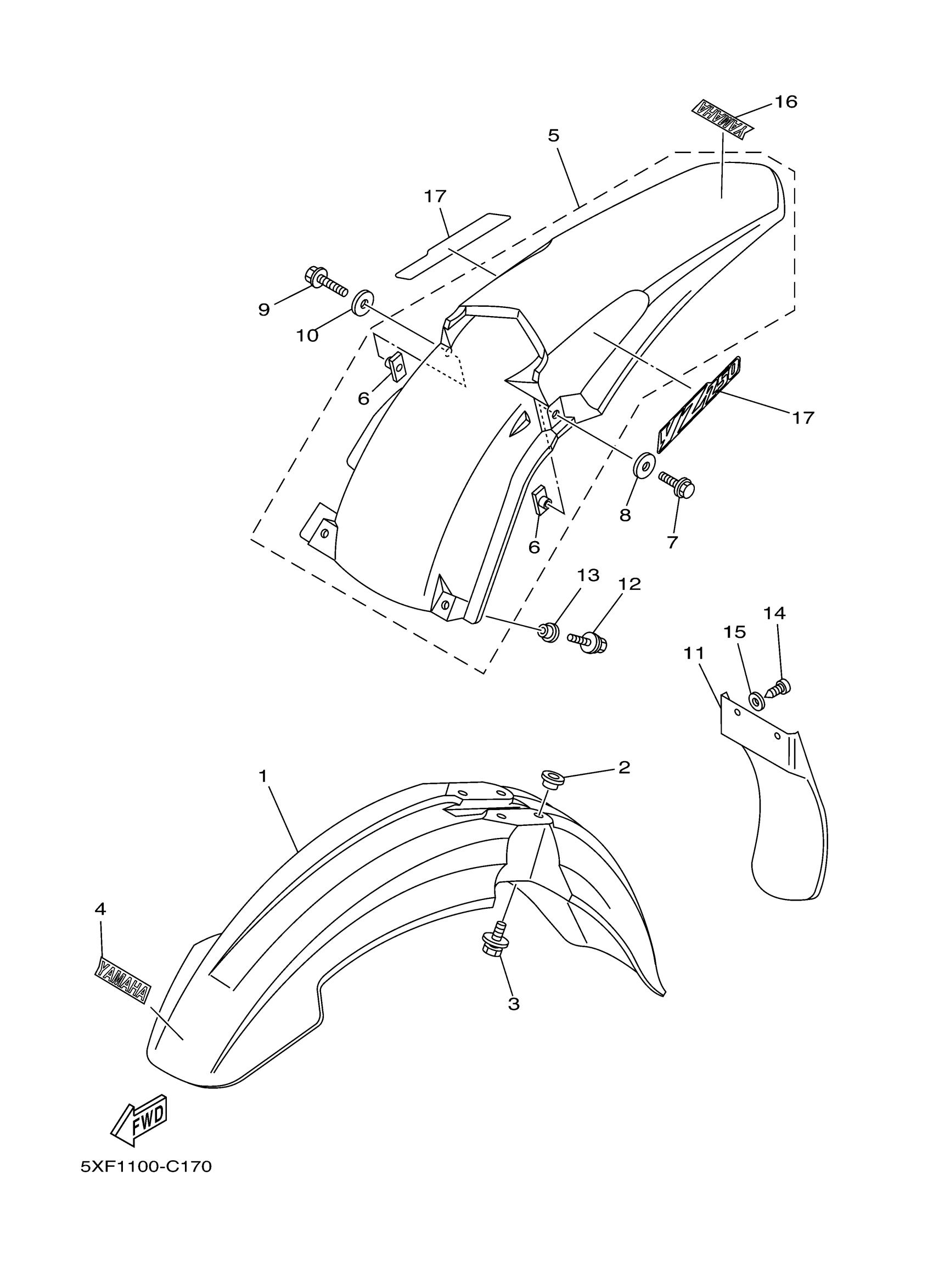

Yamaha YZ250T1 (YZ250) 1P81 2005 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, FLANGE

WASHER, PLATE (4L0)

BOLT, FLANGE

WASHER, PLATE(36Y)

GUARD, FLAP

BOLT, WITH WASHER(4JX)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
