Description

Price

1

EXHAUST PIPE ASSY 1

1P8-14610-00-00

$495.99

2

SEAL, EXHAUST

5MW-14642-00-00

$18.49

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

5

GROMMET(4EW)

90480-16561-00

$16.99

6

COLLAR(52E)

90387-063G3-00

$8.49

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

STAY, MUFFLER 2

5XF-14781-01-00

Unavailable

9

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

10

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

11

BOLT, SMALL FLANGE

95027-06025-00

$4.16

12

COLLAR

90387-08030-00

$10.49

13

BOLT, FLANGE(4MY)

95027-08035-00

$8.49

14

WASHER, PLATE (12X)

90201-087F0-00

$5.60

15

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

16

SILENCER, EXHAUST

5NX-14753-20-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

18

. FIBER

5HC-1469A-10-00

Unavailable

19

GROMMET(4EW)

90480-16561-00

$16.99

20

COLLAR(52E)

90387-063G3-00

$8.49

21

GROMMET(36Y)

90480-16404-00

Unavailable

22

COLLAR

90387-06039-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06025-00

$4.16

24

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

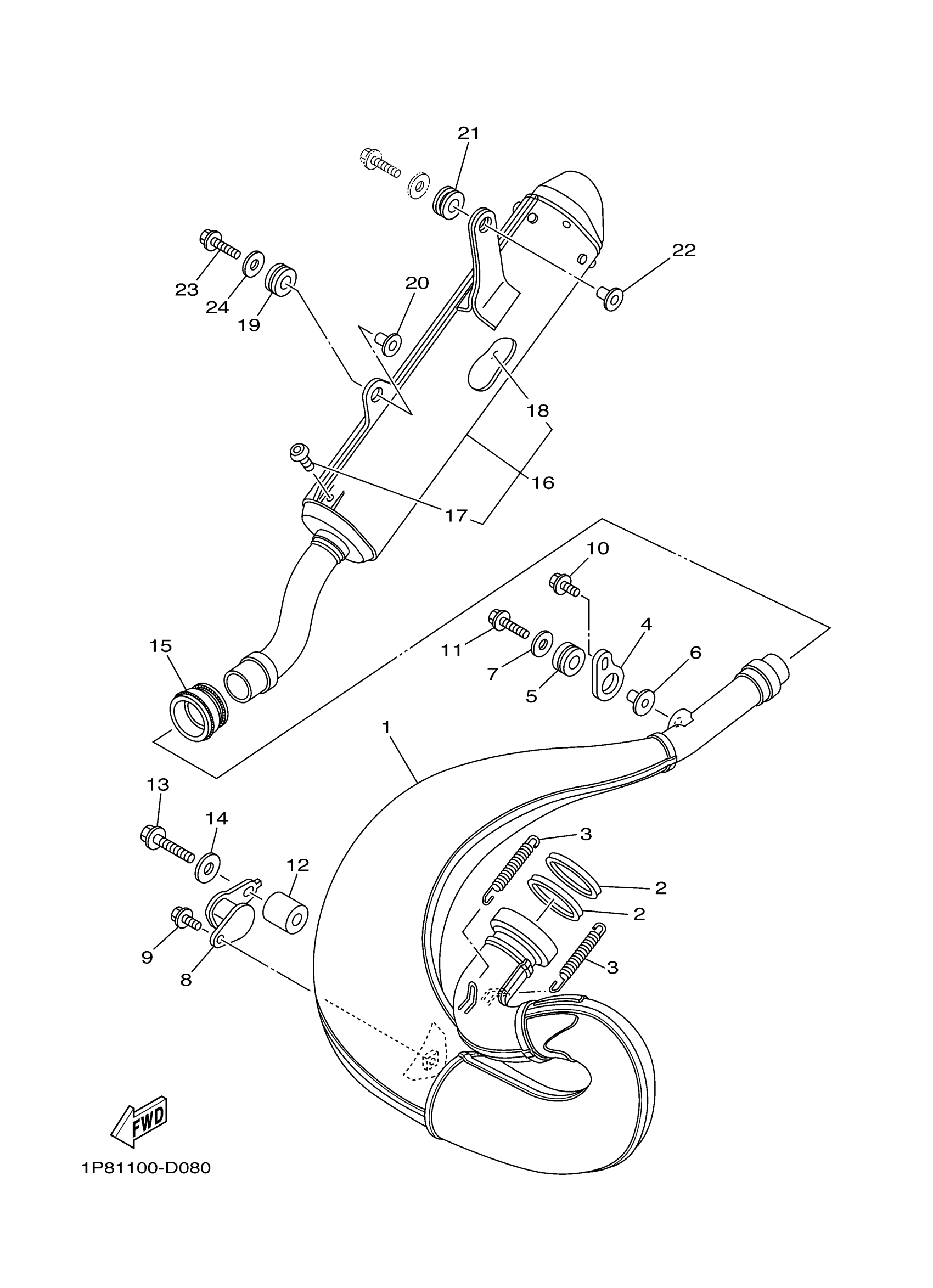

Yamaha YZ250T1 (YZ250) 1P81 2005 EXHAUST Diagram

EXHAUST PIPE ASSY 1

SEAL, EXHAUST

SPRING, TENSION(3FV)

STAY, MUFFLER 1

GROMMET(4EW)

COLLAR(52E)

WASHER, PLATE(36Y)

STAY, MUFFLER 2

BOLT, WITH WASHER(3RB)

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

COLLAR

BOLT, FLANGE(4MY)

WASHER, PLATE (12X)

JOINT, EXHAUST 1

SILENCER, EXHAUST

BOLT, BUTTON HEAD

. FIBER

GROMMET(4EW)

COLLAR(52E)

GROMMET(36Y)

COLLAR

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)
