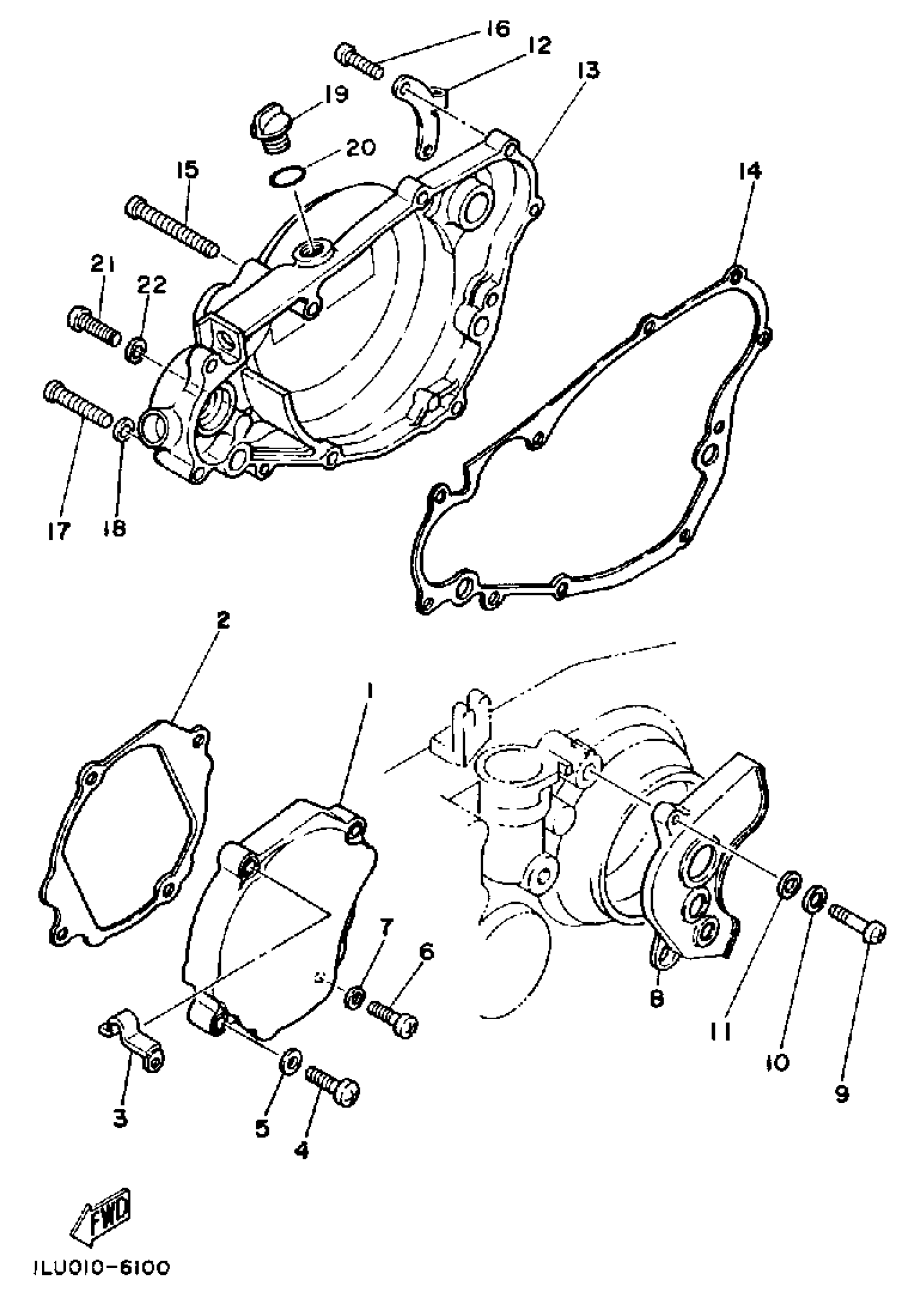

Yamaha YZ250T (YZ250T) 1987 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE (L)

39X-15411-00-00

Unavailable

2

GASKET,CRCS COVER

5X5-15451-01-00

Unavailable

3

CLAMP

90465-06247-00

Unavailable

4

SCREW, PAN

98517-06030-00

$2.88

5

WASHER(6TA)

92907-06600-00

$1.49

6

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

7

WASHER(6TA)

92907-06600-00

$1.49

8

COVER, CRANKCASE 2

23X-15421-00-00

$39.51

9

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

10

WASHER, SPRING

92907-06100-00

$1.49

11

WASHER(6TA)

92907-06600-00

$1.49

12

HOLDER

56A-15378-00-00

Unavailable

13

COVER, CRANKCASE 3

24Y-15431-01-00

Unavailable

14

GASKET, CRANK CASE 3

5X5-15462-01-00

$29.68

15

SCREW, PAN

98507-06065-00

$5.34

16

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

17

SCREW, PAN

98507-06040-00

Unavailable

18

WASHER(6TA)

92907-06600-00

$1.49

19

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

20

O-RING (26H)

93210-14579-00

Unavailable

21

SCREW, PAN

98517-06008-00

Unavailable

22

GASKET 838153840000

90430-06016-00

Unavailable
