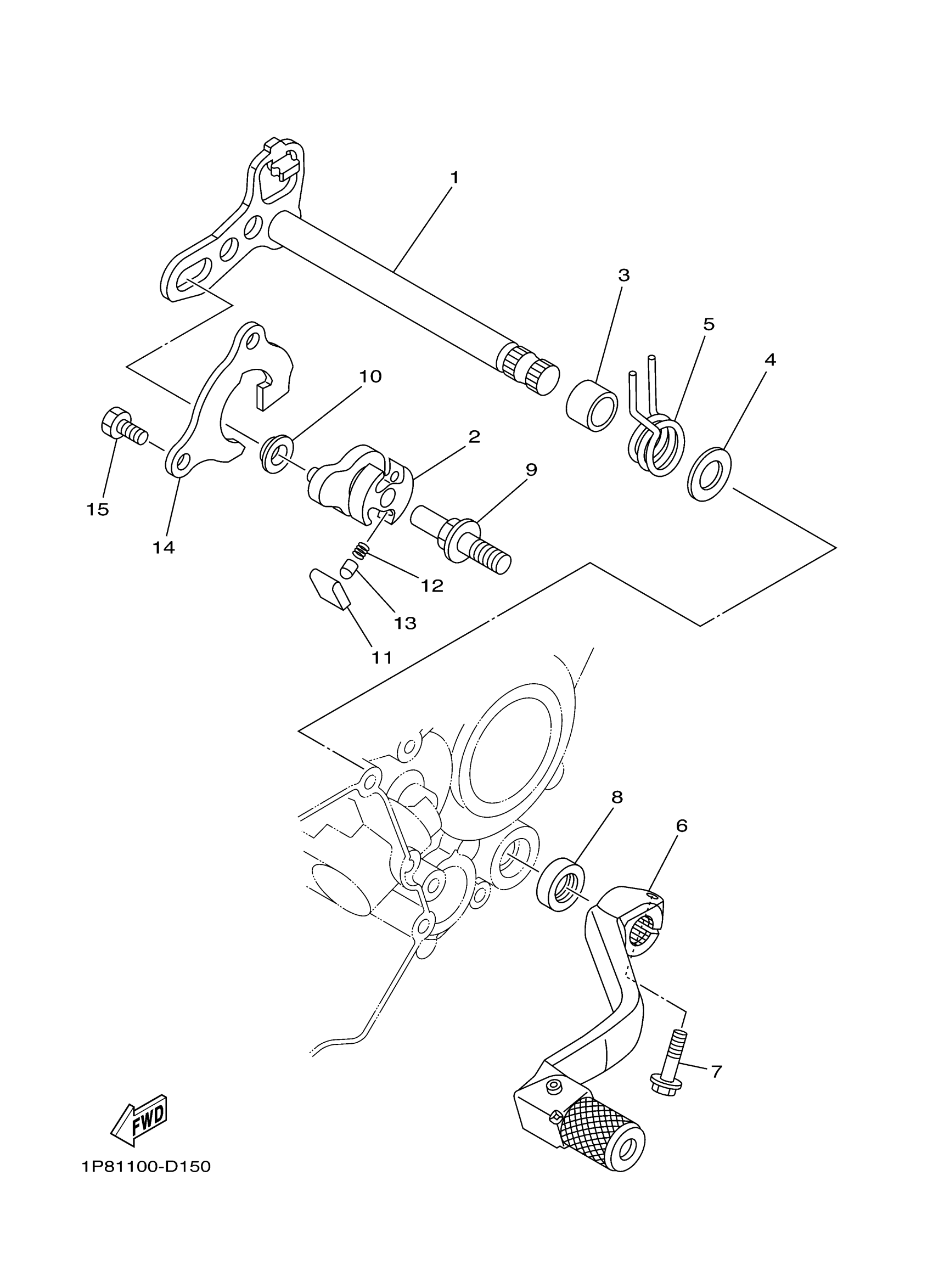

Yamaha YZ250SME (YZ250 MONSTER) D695 2025 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

5CU-18101-11-00

$55.15

2

LEVER, SHIFT 2

5MW-18122-01-00

$77.39

3

COLLAR

90387-12033-00

$6.08

4

WASHER, PLATE (353)

90201-12575-00

$5.75

5

SPRING, TORSION(4DA)

90508-291A8-00

$7.61

6

SHIFT PEDAL ASSY

1C3-18110-00-00

$46.35

7

BOLT, FLANGE

95022-06020-00

$3.11

8

OIL SEAL (4G0)

93102-12224-00

$7.79

9

PIN, SHIFT

3XJ-18173-10-00

$15.34

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$10.05

11

PAWL, SHIFTER

3XJ-18182-00-00

$12.53

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$4.89

13

PIN, PAWL

3XJ-18184-00-00

$11.85

14

GUIDE, SHIFT

5CU-18172-00-00

Unavailable

15

BOLT

90101-06042-00

$4.46
