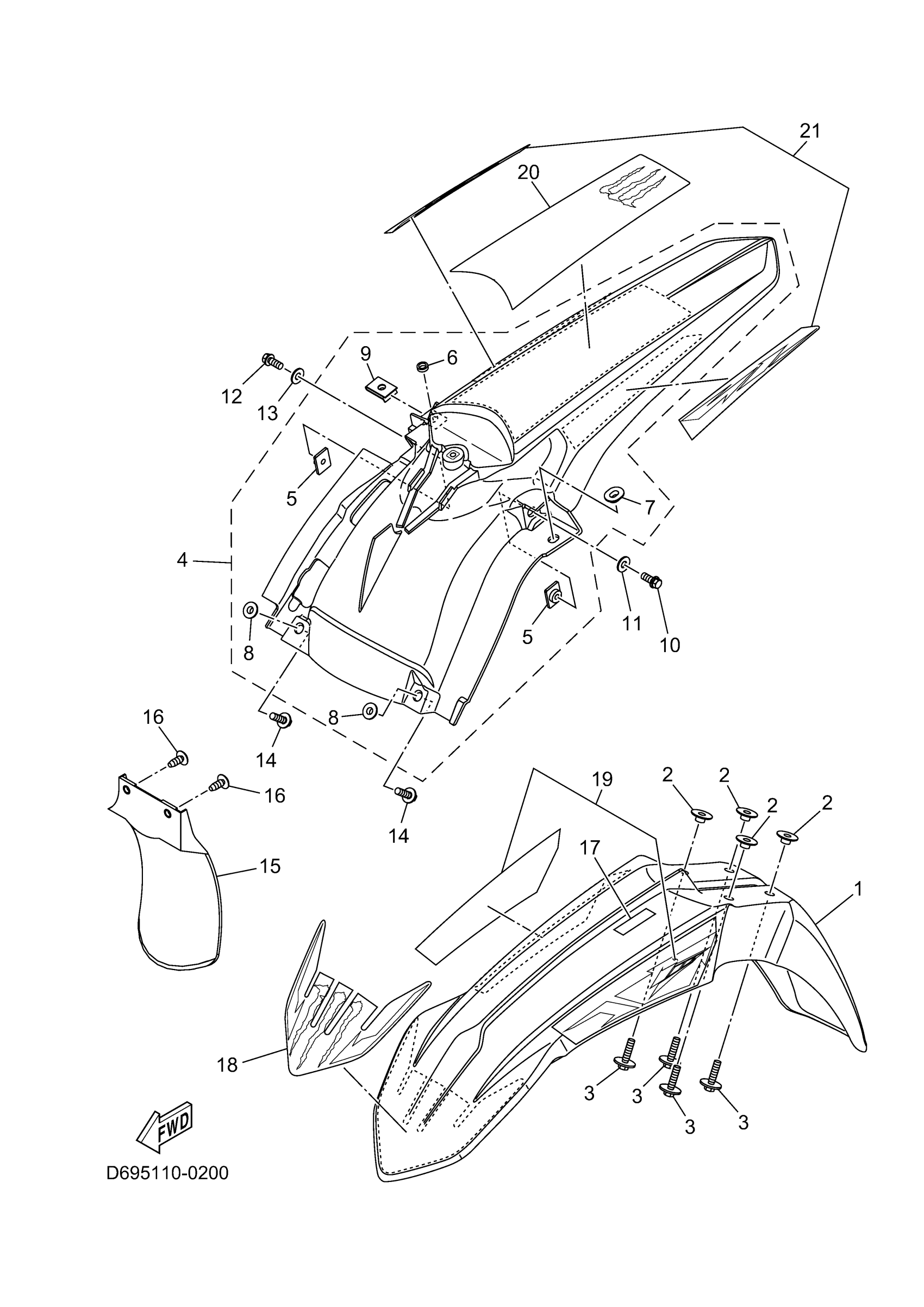

Yamaha YZ250SME (YZ250 MONSTER) D695 2025 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-30-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMPONENT

BCR-21610-11-00

$40.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

90387-06069-00

Unavailable

7

COLLAR

17D-14449-00-00

$7.99

8

COLLAR

90387-06009-00

$10.49

9

NUT, SPRING

90183-060A7-00

$8.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

WASHER, PLATE

90201-06032-00

$8.49

12

BOLT, FLANGE

90105-06102-00

$3.50

13

WASHER, PLATE

90201-06033-00

$2.97

14

BOLT, WITH WASHER

90119-06149-00

$8.49

15

GUARD, FLAP

5TA-21642-00-00

$39.99

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

LABEL, CAUTION

3XJ-2415E-A2-00

Unavailable

18

GRAPHIC 1

D68-21569-00-00

Unavailable

19

GRAPHIC SET 1

D68-2159A-00-00

Unavailable

20

GRAPHIC, 1

D68-2165C-00-00

Unavailable

21

GRAPHIC SET

D68-2167A-00-00

Unavailable
