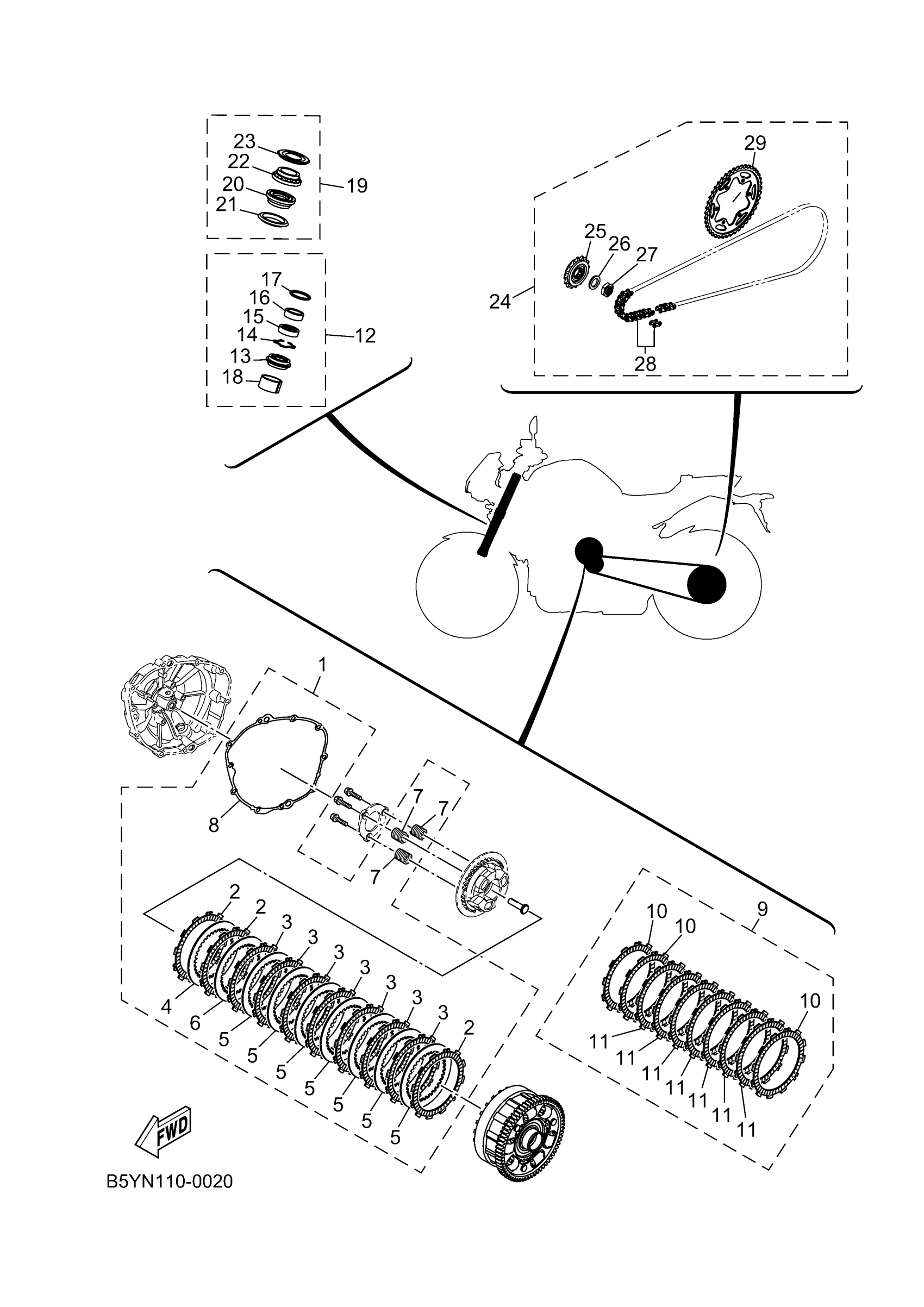

Yamaha YZ250SME (YZ250 MONSTER) D695 2025 2 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B5Y-W001G-00-00

$303.99

2

PLATE, FRICTION 2

2CR-16330-00-00

$30.99

3

PLATE, FRICTION

B5Y-16321-00-00

$21.99

4

PLATE, CLUTCH 1

2CR-16324-00-00

$7.99

5

PLATE, CLUTCH 2

2CR-16325-00-00

$13.49

6

PLATE, CLUTCH 2

2CR-16325-00-00

$13.49

6

PLATE, CLUTCH 2

2CR-16325-10-00

$7.99

6

PLATE, CLUTCH 2

2CR-16325-20-00

$7.99

7

SPRING, COMPRESSIO

B5Y-16173-00-00

$9.49

8

GASKET, CRANKCASE

2CR-15461-00-00

$24.99

9

FRICTION PLATE KIT

B5Y-W001M-00-00

$184.99

10

PLATE, FRICTION 2

2CR-16330-00-00

$30.99

11

PLATE, FRICTION

B5Y-16321-00-00

$21.99

12

FORK SEAL KIT (ONE FORK)

B67-W003B-00-00

$35.99

13

SEAL, DUST

4PU-23144-00-00

$24.99

14

RING, SNAP

4V4-23153-L0-00

Unavailable

15

OIL SEAL

4PU-23145-01-00

Unavailable

16

METAL, SLIDE 1

2CR-23125-00-00

Unavailable

17

O-RING

39P-23147-00-00

Unavailable

18

PISTON, FRONT FORK

2CR-23171-00-00

Unavailable

19

STEERING BEARING KIT

BMP-W000B-00-00

Unavailable

20

BEARING

93399-99957-00

Unavailable

21

SEAL, STEERING

3FV-23462-00-00

Unavailable

22

BEARING(3FV)

93399-99932-00

Unavailable

23

COVER, BALL RACE 1

4XV-23415-01-00

Unavailable

24

CHAIN & SPROCKET K

B5Y-W001A-00-00

Unavailable

25

SPROCKET, DRIVE

2CR-17460-00-00

Unavailable

26

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

27

NUT

90179-22018-00

Unavailable

28

CHAIN (DID525HV3 114LL)

94A40-12114-00

Unavailable

29

SPROCKET, DRIVEN (42T)

B5Y-25442-00-00

Unavailable
