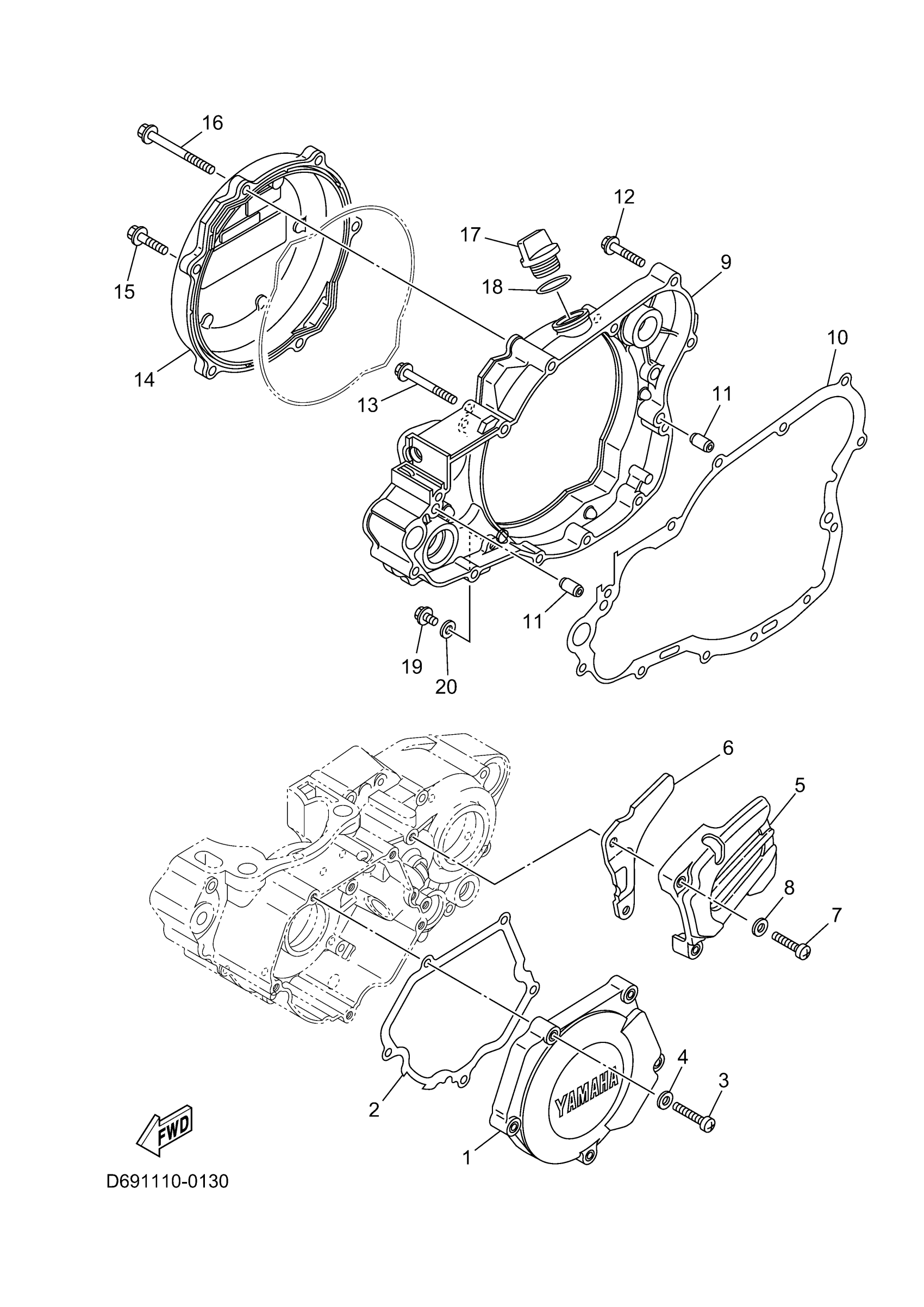

Yamaha YZ250SL (YZ250) D691 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5CU-15411-10-00

$98.99

2

GASKET, CRANKCASE COVER 1

5CU-15451-00-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

COVER, CRANKCASE 2

1P8-15421-10-00

$67.99

6

GUIDE, CHAIN

5HC-17466-00-00

$33.99

7

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

COVER, CRANKCASE 3

5NX-15431-01-00

$300.99

10

GASKET, CRANKCASE COVER 3

5CU-15462-00-00

$18.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, FLANGE

95022-06030-00

$3.72

13

BOLT, FLANGE

95022-06050-00

$3.23

14

COVER, 1

5MW-15415-20-00

$166.99

15

BOLT, FLANGE

95022-06025-00

$3.62

16

BOLT, FLANGE

95022-06065-00

Unavailable

17

PLUG, OIL

3Y1-15363-10-00

Unavailable

18

O-RING (646)

93210-19123-00

Unavailable

19

BOLT, FLANGE

95022-06010-00

Unavailable

20

GASKET 256113960000

90430-06014-00

Unavailable
