- YZ250S1 (YZ250) 5XF1 2004
FRONT FORK

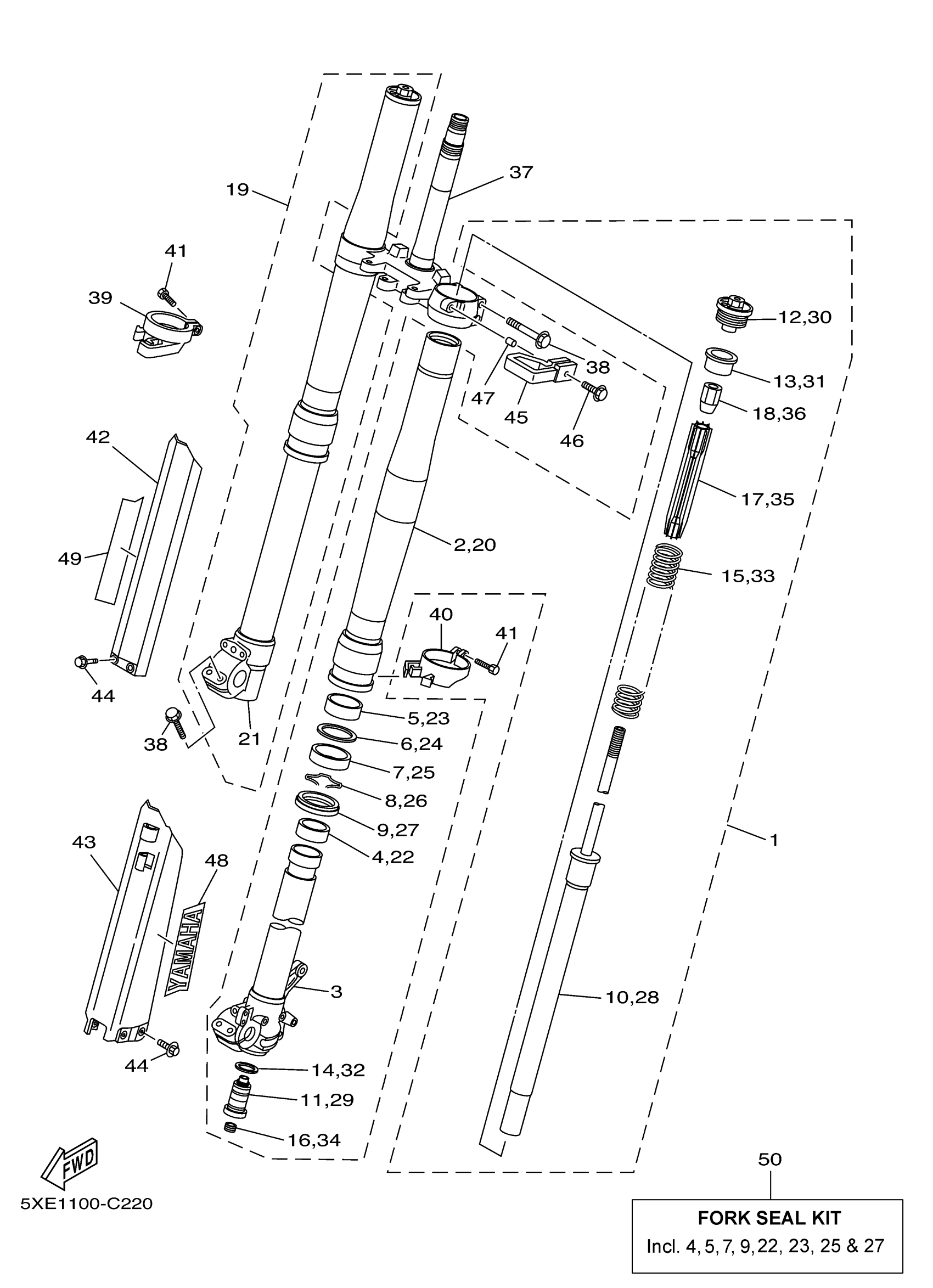

Yamaha YZ250S1 (YZ250) 5XF1 2004 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5XF-23102-00-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5XD-23136-L0-00
Unavailable
3
. INNER TUBE COMP2
5XE-23120-L0-00
Unavailable
6
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
5XF-23170-L0-00
Unavailable
11
. VALVE COMP
5XF-2316A-L0-00
Unavailable
15
. SPRING, FRONT FORK (K=43N/MM)
5XF-23141-L0-00
Unavailable
16
PLUG
3JD-2312G-L0-00
Unavailable
17
SEAT, SPRING UPPER
5XE-23142-L0-00
Unavailable
18
NUT, SPECIAL
5XE-23393-L0-00
Unavailable
19
FRONT FORK ASSY (R.H)
5XF-23103-00-00
Unavailable
20
. TUBE, OUTER (RIGHT)
5XD-23136-L0-00
Unavailable
21
. INNER TUBE COMP1
5XE-23110-L0-00
Unavailable
24
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
28
. CYLINDER COMP, FRONT FORK
5XF-23170-L0-00
Unavailable
29
. VALVE COMP
5XF-2316A-L0-00
Unavailable
33
. SPRING, FRONT FORK (K=43N/MM)
5XF-23141-L0-00
Unavailable
34
PLUG
3JD-2312G-L0-00
Unavailable
35
SEAT, SPRING UPPER
5XE-23142-L0-00
Unavailable
36
NUT, SPECIAL
5XE-23393-L0-00
Unavailable
37
UNDER BRACKET COMP.
5XF-23340-L0-00
Unavailable
38
BOLT 1
5NY-23346-L0-00
Unavailable
39
PROTECTER GUIDE COMP., 2
5XE-2314G-L0-00
Unavailable
40
PROTECTER GUIDE COMP., 1
5XE-2314F-L0-00
Unavailable
41
BOLT 1
4SS-23346-L0-00
Unavailable
42
PROTECTER COMP., 2
5TA-2314J-00-00
Unavailable
43
PROTECTER COMP., 1
5TA-2314H-00-00
Unavailable
44
BOLT 2
3SP-23356-L0-00
Unavailable
45
GUIDE, CABLE
5XE-23389-00-00
Unavailable
46
. BOLT, FLANGE
95027-06020-00
Unavailable
47
COLLAR
5XE-23113-00-00
Unavailable
48
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
49
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
50
FORK SEAL KIT (TWO FORKS)
1C3-W003B-00-00
Unavailable
