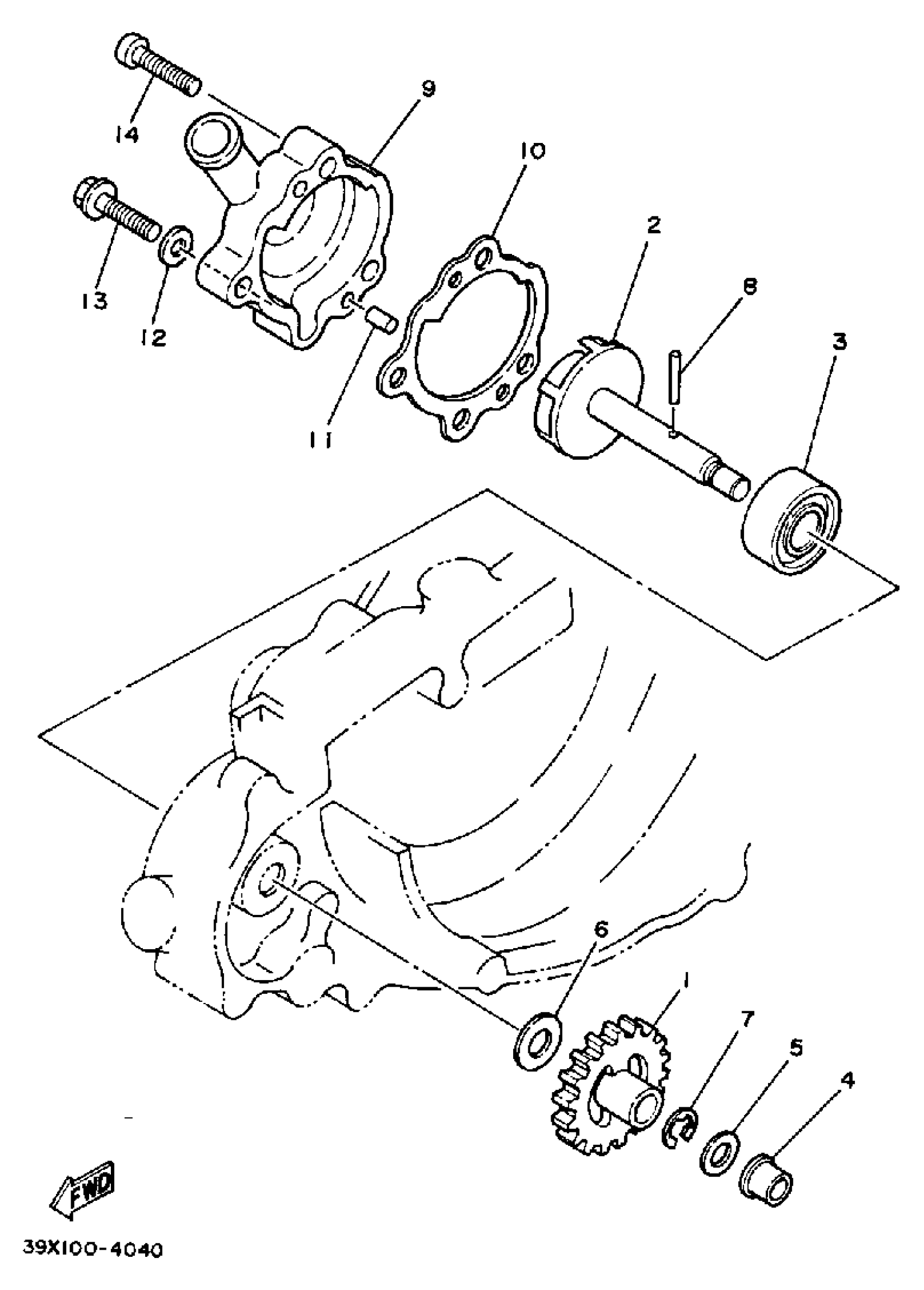

Yamaha YZ250S (YZ250) 1LU 1986 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAFT

39X-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSY

39X-12450-00-00

$53.34

3

OIL SEAL

93103-10011-00

$37.49

4

BUSH (214-17843-00)

90381-08002-00

$9.82

5

WASHER, PLATE (5F7)

90201-08512-00

$5.75

6

WASHER, PLATE(3GM)

90201-106M5-00

$6.46

7

CIRCLIP

99080-07600-00

$2.82

8

PIN,DOWEL (137)

93603-22028-00

$2.04

9

COVER, HOUSING

39X-12422-00-00

Unavailable

10

GASKET, COVER HOUSING

5X5-12428-01-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$4.89

12

GASKET (4V2)

90430-06166-00

$3.22

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90
