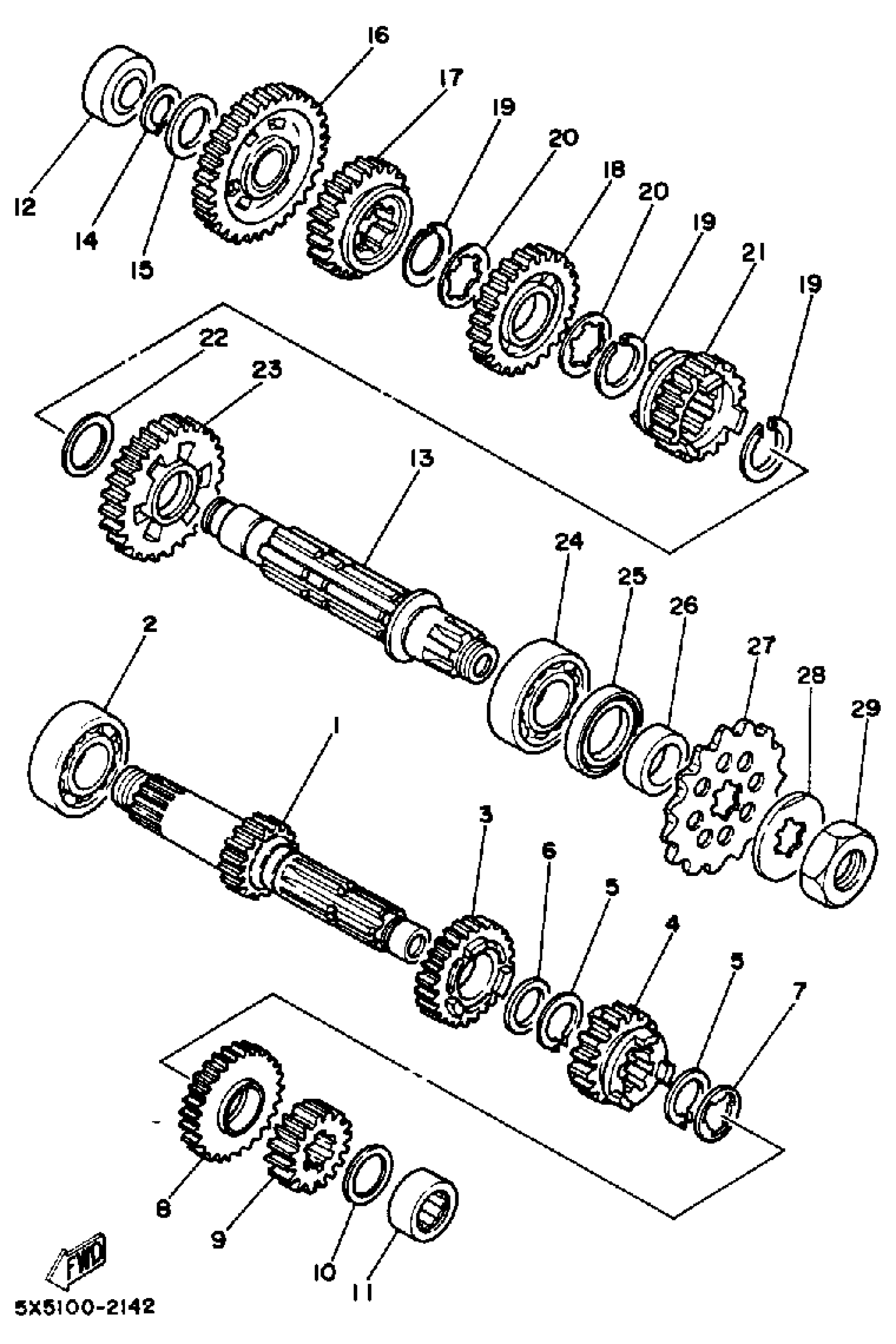

Yamaha YZ250S (YZ250) 1LU 1986 TRANSMISSION Diagram

AXLE, MAIN (14T)

24Y-17411-00-00

Unavailable

BEARING (23X)

93300-20501-00

$70.99

GEAR, 4TH PINION

1LU-17141-00-00

Unavailable

GEAR, 3RD PINION

24Y-17131-00-00

Unavailable

CIRCLIP (537)

93410-22039-00

$8.49

WASHER, PLATE (537)

90201-22555-00

$8.49

WASHER (537)

90209-18135-00

$9.49

GEAR, 5TH PINION

5X5-17151-00-00

Unavailable

GEAR, 2ND PINION

24Y-17121-00-00

Unavailable

WASHER(2HH)

90209-17311-00

$3.98

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

BEARING (2X7)

93311-62035-00

$57.99

AXLE, DRIVE

5X5-17421-00-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

WASHER PLATE 168171160000

90201-20278-00

$10.49

GEAR, 1ST WHEEL

24Y-17211-00-00

Unavailable

GEAR, 4TH WHEEL

5X5-17241-00-00

Unavailable

GEAR, 3RD WHEEL

24Y-17231-00-00

Unavailable

CIRCLIP (4L0)

93440-25084-00

Unavailable

WASHER 434172160000

90209-22082-00

Unavailable

GEAR, 5TH WHEEL

5X5-17251-00-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

GEAR, 2ND WHEEL

24Y-17221-01-00

Unavailable

BEARING (23X)

93300-20501-00

$70.99

OIL SEAL (697)

93102-32M07-00

Unavailable

COLLAR (2K7)

90387-25663-00

Unavailable

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

SPROCKET, DRIVE

93834-14051-00

Unavailable

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

WASHER, LOCK (23X)

90215-21239-00

Unavailable

NUT (2K7)

90179-20255-00

Unavailable
