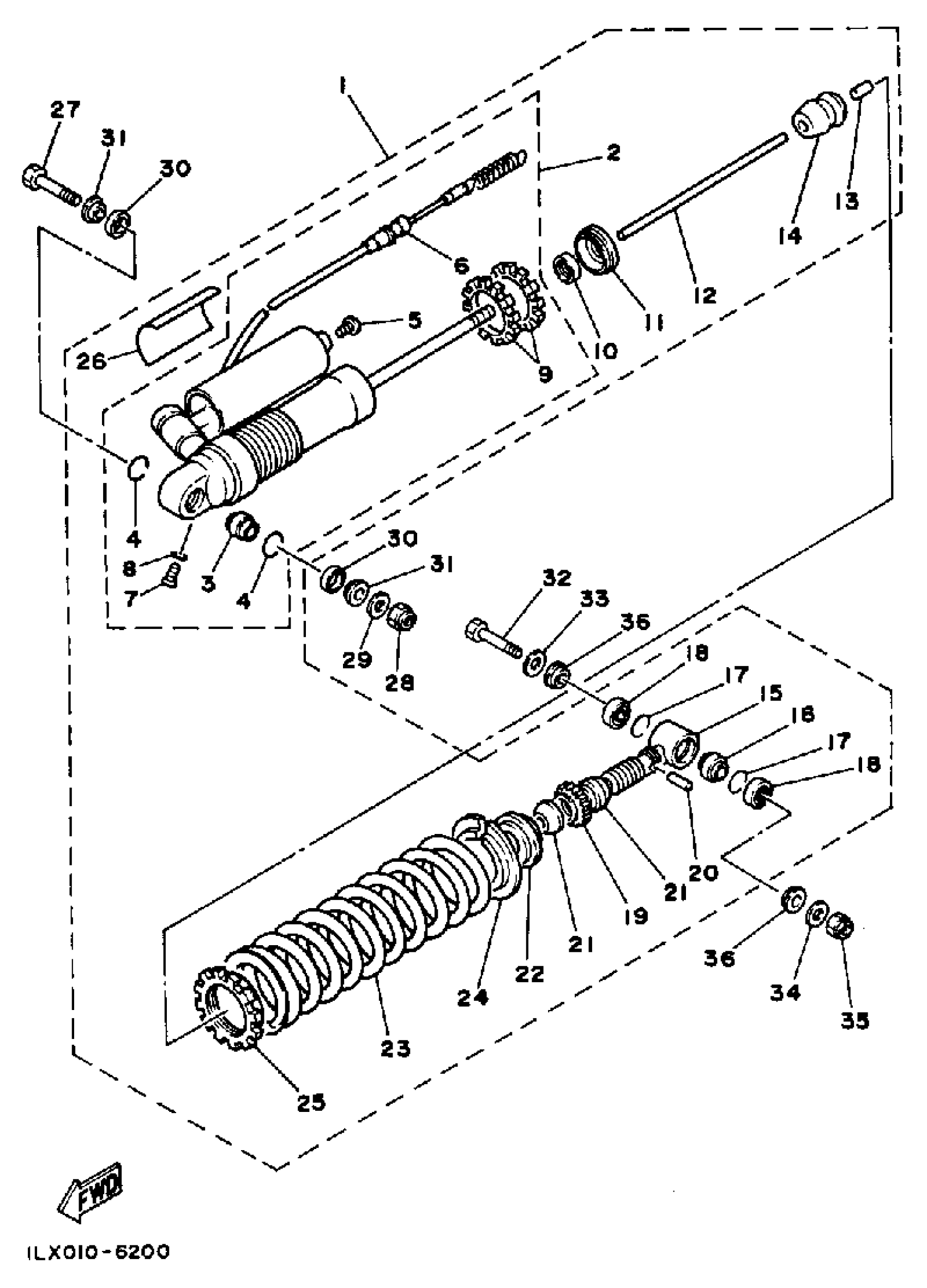

Yamaha YZ250S (YZ250) 1LU 1986 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASY,REAR

1LU-22210-00-6W

Unavailable

2

SHK/ABS ASY,REAR

1LU-22210-00-6W

Unavailable

3

BEARING(4GG)

93399-999T3-00

$62.99

4

CIRCLIP (23X)

93440-30113-00

$1.70

5

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

6

.. CABLE, CONTROL 1

1LV-22463-00-00

Unavailable

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

8

O-RING (26H)

93210-06632-00

$8.49

9

.. RING, HOLD

1LX-22225-00-00

Unavailable

10

SEAL,DUST

23X-22475-01-00

Unavailable

11

. CAP, CASE 001

26A-22472-00-00

Unavailable

12

. ROD, PUSH

1LX-22489-00-00

Unavailable

14

. BUMP, STOP

1LX-22493-00-00

Unavailable

17

CIRCLIP (23X)

93440-30113-00

$1.70

18

OIL SEAL (23X)

93104-18077-00

$11.49

19

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

20

. PIN, DOWEL

93604-26132-00

Unavailable

21

. COVER

3R4-22221-01-00

Unavailable

22

. SEAT, SPRING UPPER

1LX-22213-00-00

Unavailable

23

SPRING (K=5.25)

1LV-22212-10-6W

Unavailable

23

. SPRING (575)

1LV-22212-20-6W

Unavailable

24

. GUIDE, SPRING 1

2VN-22214-00-00

Unavailable

25

. SEAT, SPRING LOWER

1LX-22223-00-00

Unavailable

28

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

29

WASHER (7A9)

90201-100F7-00

Unavailable

30

COVER

23X-22211-00-00

Unavailable

31

COLLAR (23X)

90387-127G8-00

Unavailable

32

BOLT

90109-10700-00

Unavailable

33

WASHER, PLATE

90201-12027-00

Unavailable

34

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

35

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

36

COLLAR (23X)

90387-126H8-00

Unavailable
