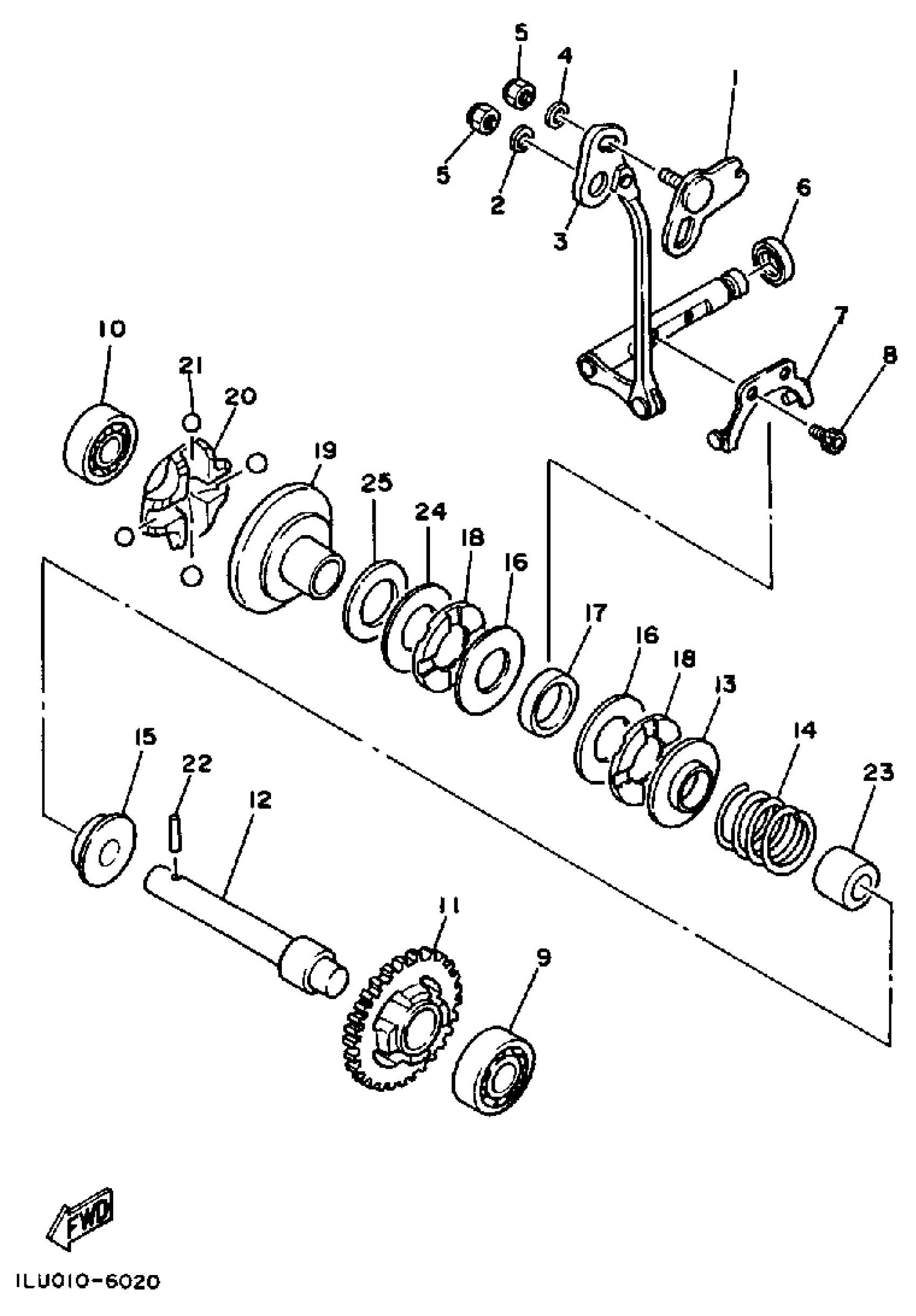

Yamaha YZ250S (YZ250) 1LU 1986 GOVERNOR Diagram

#

Description
Price

1

LEVER

1LU-11931-00-00

Unavailable

2

WASHER, PLATE(39X)

90201-057H5-00

$4.29

3

PUSH ROD ASSEMBLY

1LU-11990-00-00

Unavailable

4

WASHER, PLAIN (646)

92990-05600-00

$0.80

5

NUT, U

95617-05100-00

$9.49

6

OIL SEAL (8X12X3-371)

93104-08040-00

$14.99

7

FORK, GOVERNOR

5X5-11922-00-00

Unavailable

8

BOLT, SOCKET

91317-04006-00

$9.49

9

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

10

BEARING

93300-60801-00

$21.99

11

GEAR, GOVERNOR (29T)

5X5-11953-00-00

Unavailable

12

SHAFT, GOVERNOR

5X5-11921-00-00

Unavailable

13

PLATE

5X5-11951-00-00

Unavailable

14

SPRING, COMPRESSION

90501-24745-00

Unavailable

15

PLATE

5X5-11952-00-00

Unavailable

16

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

17

COLLAR (5X4)

90387-152F2-00

Unavailable

18

BUSH, SOLID

90380-15104-00

Unavailable

19

RETAINER, WEIGHT

5X5-11912-01-00

Unavailable

20

RETAINER

5X5-11911-01-00

Unavailable

21

BALL (5X4)

93521-64032-00

Unavailable

22

PIN, DOWEL (5X4)

93603-14179-00

Unavailable

23

COLLAR

90387-083F4-00

Unavailable

24

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

24

WASHER, PLATE (5X5)

90201-154F5-00

Unavailable

25

WASHER, PLATE

90201-154F6-00

Unavailable
