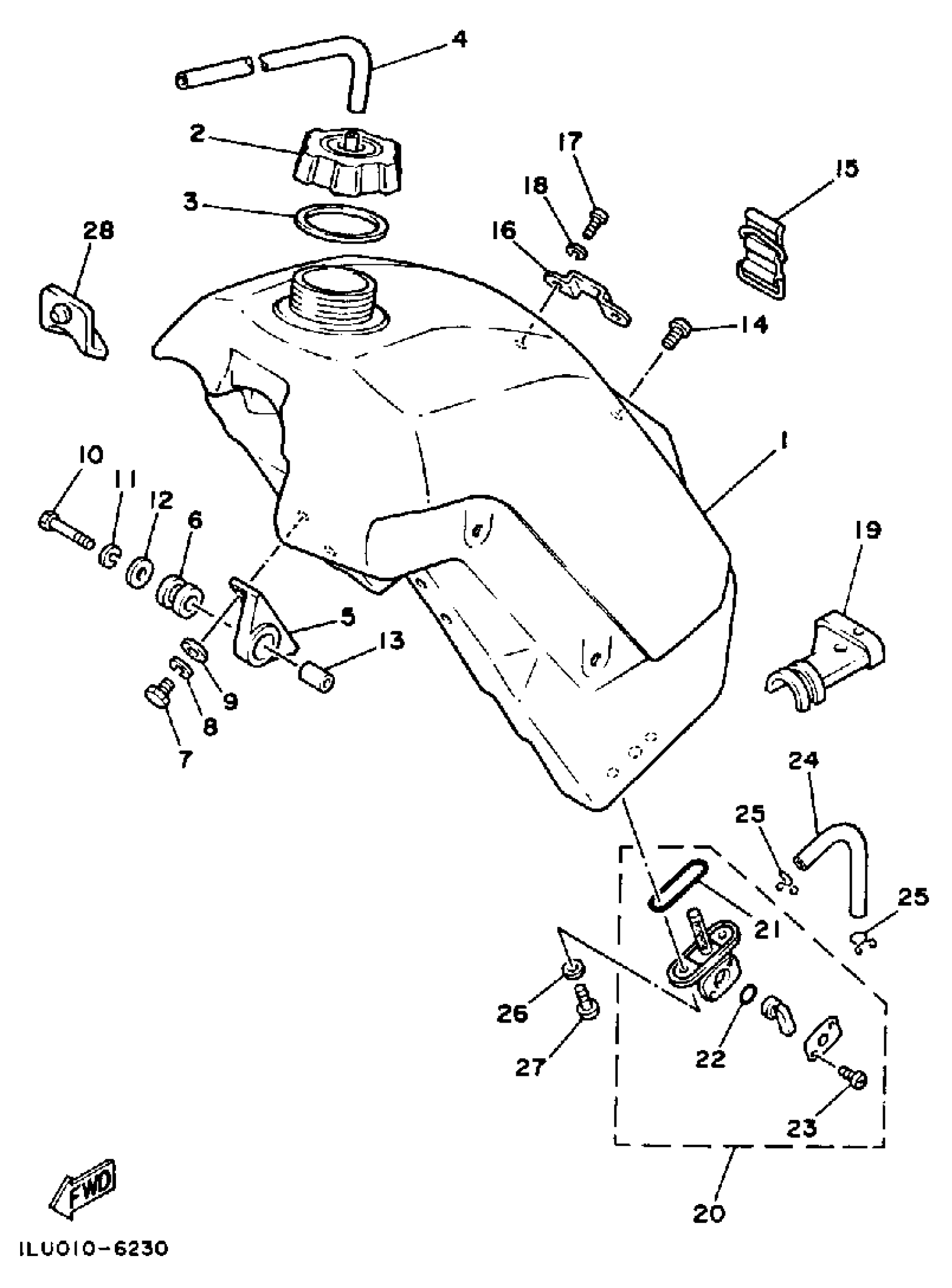

Yamaha YZ250S (YZ250) 1LU 1986 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1LU-24110-00-00

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

HOLDER, DAMPER

5XE-24144-00-00

$23.99

6

GROMMET(4AA)

90480-18549-00

$10.49

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

BOLT(3RV)

97014-06035-00

$2.75

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLATE (J10)

90201-06697-00

$8.49

13

COLLAR

90387-06387-00

Unavailable

14

SCREW(3JM)

90149-06306-00

$8.49

15

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

22

O-RING

4X8-24534-00-00

Unavailable

23

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

24

HOSE (L198)

90445-11293-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

27

SCREW 256241430000

90149-06011-00

Unavailable

28

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable
