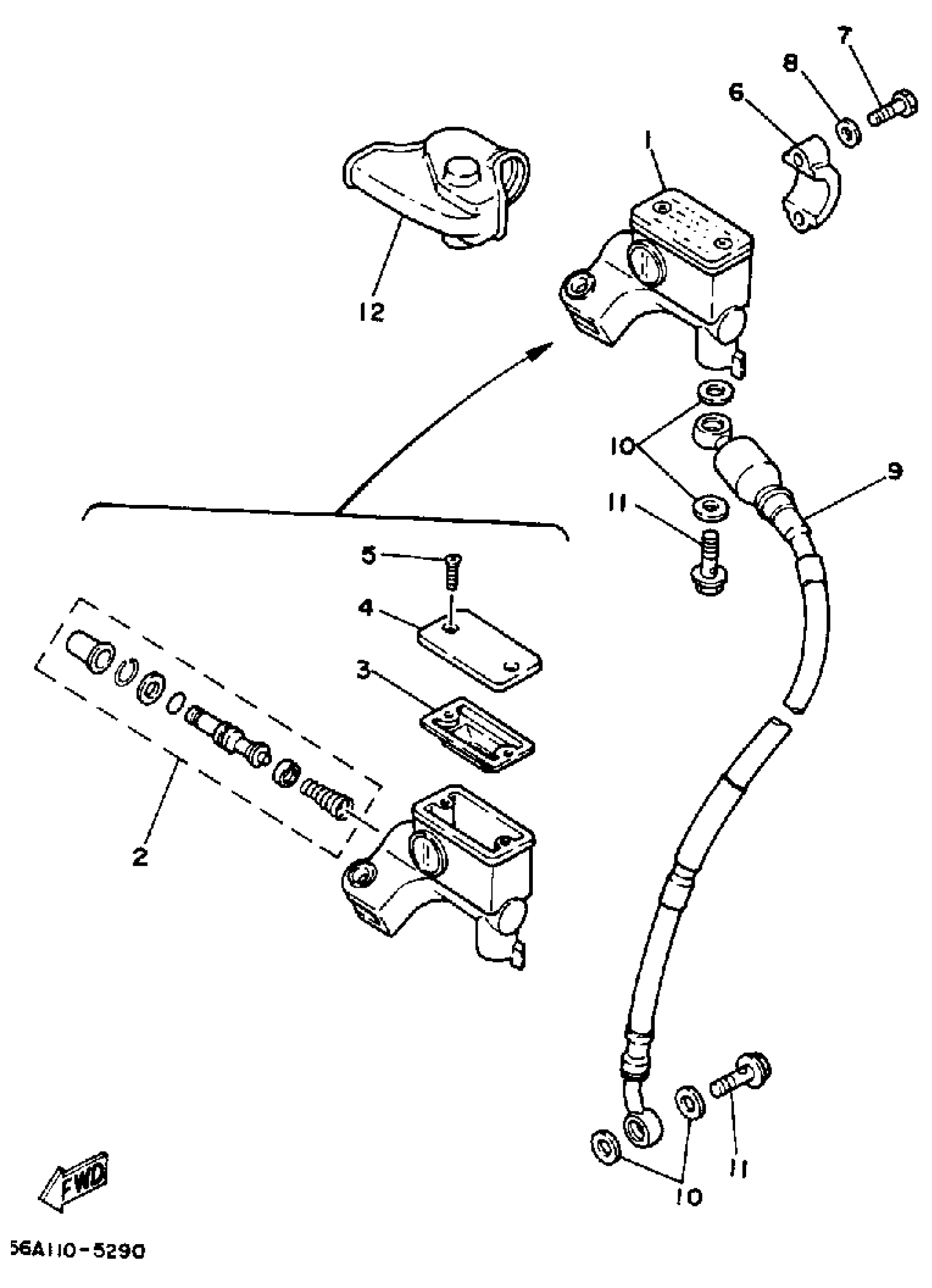

Yamaha YZ250S (YZ250) 1LU 1986 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB-ASSEMBLY

56A-25870-01-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

56A-25854-00-00

$38.99

CAP, RESERVOIR

2VN-25852-02-00

$16.49

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER(6TA)

92907-06600-00

$2.72

HOSE, BRAKE 1

56A-25872-00-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

COVER, HANDLE LEVER 1

56A-26372-01-00

$24.99
