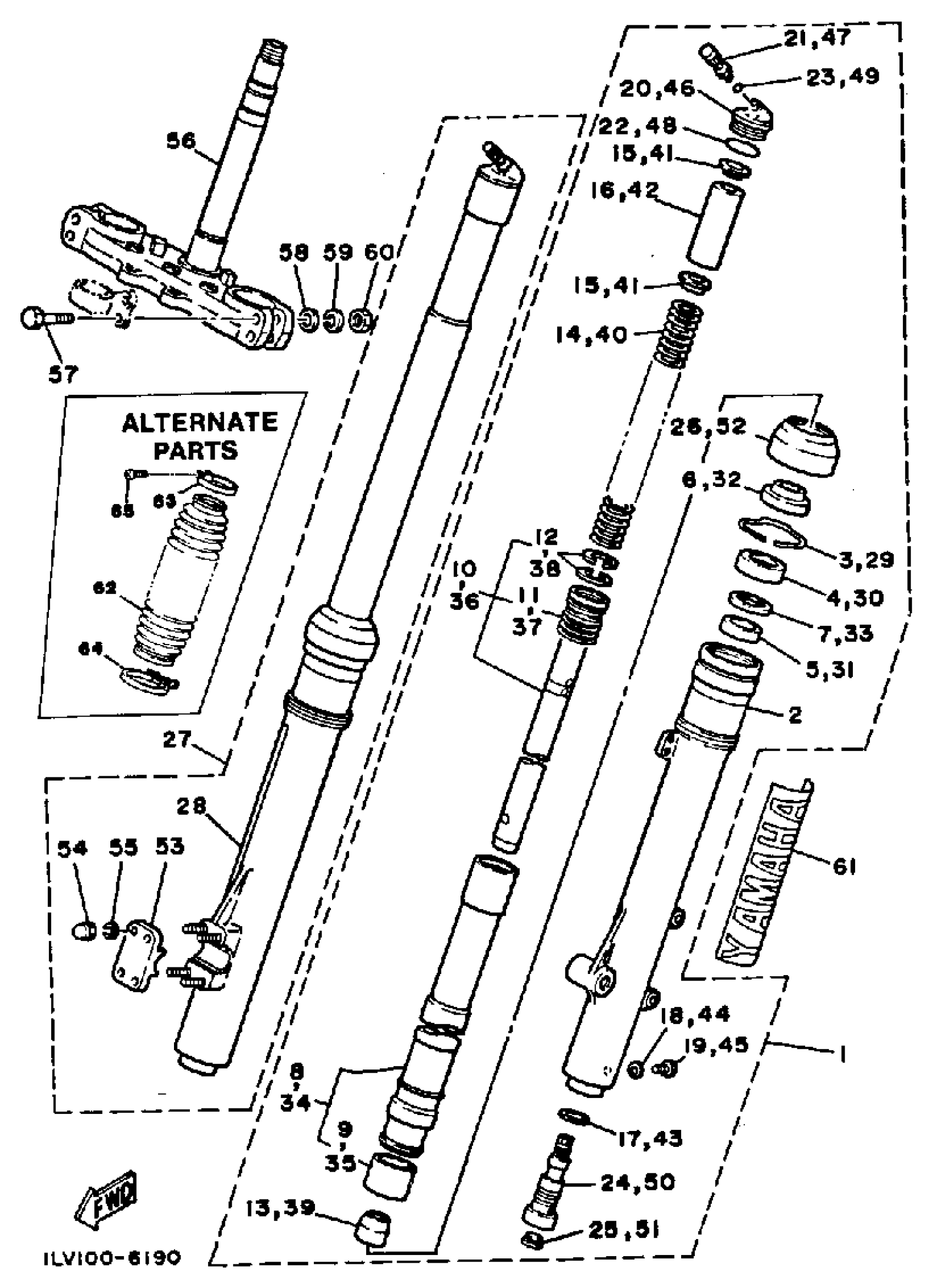

Yamaha YZ250S (YZ250) 1LU 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L)

1LU-23102-L0-00

Unavailable

2

. TUBE, OUTER 1

1LX-23126-L0-00

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

23X-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

23X-23144-L0-00

$27.99

7

WASHER

4V4-23146-L0-00

$6.99

8

. INNER TUBE 1

1LX-23110-L0-00

Unavailable

9

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

10

. CYLINDER, FRONT FORK

1LV-23170-M0-00

Unavailable

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

13

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

14

. SPRING, FRONT FORK (K=0375)

1LV-23141-L0-00

Unavailable

14

SPRING, FRONT FORK HARD (K@0.325)

39X-23141-20-00

Unavailable

14

. SPRING, FRONT FORK HARD (K@0345)

57H-23141-20-00

Unavailable

15

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

16

. SPACER

1LV-23118-L0-00

Unavailable

16

. SPACER (L=80)

5X6-23118-10-00

Unavailable

17

GASKET

23X-23158-L0-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

BOLT,CAP

43M-23111-L0-00

Unavailable

22

O-RING

4V4-23188-L1-00

Unavailable

23

O-RING

3J2-23147-00-00

Unavailable

24

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

25

PLUG

55Y-2312G-M0-00

Unavailable

26

. SEAL, DUST

1LX-23144-L0-00

Unavailable

30

OIL SEAL

23X-23145-L0-00

$32.99

31

METAL, SLIDE 1

5EB-23125-00-00

$32.99

32

SEAL, DUST

23X-23144-L0-00

$27.99

33

WASHER

4V4-23146-L0-00

$6.99

34

. INNER TUBE 1

1LX-23110-L0-00

Unavailable

36

. CYLINDER, FRONT FORK

1LV-23170-M0-00

Unavailable

38

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

39

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

40

. SPRING, FRONT FORK (K=0375)

1LV-23141-L0-00

Unavailable

40

SPRING, FRONT FORK HARD (K@0.325)

39X-23141-20-00

Unavailable

40

. SPRING, FRONT FORK HARD (K@0345)

57H-23141-20-00

Unavailable

41

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

42

. SPACER

1LV-23118-L0-00

Unavailable

42

. SPACER

1LV-23118-L0-00

Unavailable

42

. SPACER (L=80)

5X6-23118-10-00

Unavailable

43

GASKET

23X-23158-L0-00

Unavailable

44

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

45

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

46

BOLT,CAP

43M-23111-L0-00

Unavailable

47

. VALVE

56A-2316A-L0-00

Unavailable

48

O-RING

4V4-23188-L1-00

Unavailable

49

O-RING

3J2-23147-00-00

Unavailable

50

. VALVE

56A-2316A-L0-00

Unavailable

51

PLUG

55Y-2312G-M0-00

Unavailable

52

. SEAL, DUST

1LX-23144-L0-00

Unavailable

54

NUT

5Y3-23393-00-00

Unavailable

56

UNDER BRACKET

1LX-23340-L0-00

Unavailable

58

.. WASHER, PLATE

92990-08600-00

Unavailable

59

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

60

NUT(6L2)

95333-08600-00

Unavailable

61

EMBLEM

1LX-23108-00-00

Unavailable

63

BAND

43M-23192-L0-00

Unavailable

64

BAND

3LD-23489-00-00

Unavailable

65

SCREW, PAN HEAD

98507-04018-00

Unavailable
