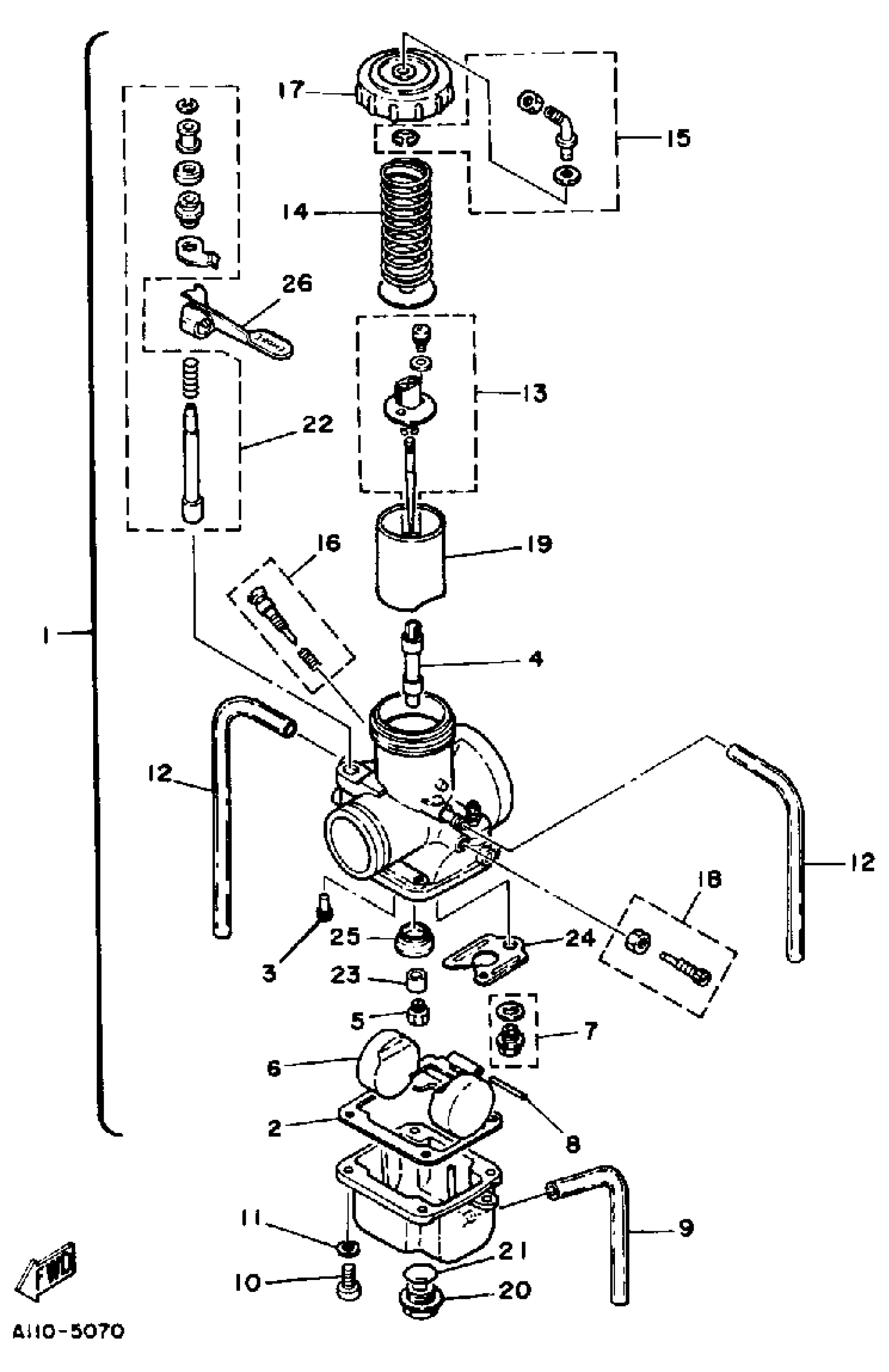

Yamaha YZ250S (YZ250) 1LU 1986 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

1LU-14101-00-00

Unavailable

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

3

JET, PIL0T(# 35)

193-14142-35-00

$9.99

3

. JET, PILOT #40

193-14142-40-A1

Unavailable

3

. JET, PILOT (#45)

193-14142-45-A1

Unavailable

4

. NOZZLE, MAIN

510-14141-52-00

Unavailable

4

. NOZZLE, MAIN

510-14141-54-00

Unavailable

4

. NOZZLE, MAIN

510-14141-56-00

Unavailable

5

JET, MAIN #320

137-14143-64-00

Unavailable

5

JET, MAIN #330

137-14143-66-A1

Unavailable

5

JET,MAIN #340

137-14143-68-00

$9.99

5

JET,MAIN #350

137-14143-70-00

$6.99

5

JET,MAIN #360

137-14143-72-00

$6.99

6

FLOAT

2N7-14185-00-00

$85.99

7

NEEDLE VALVE SET

23X-14107-35-00

$45.99

8

PIN, FLOAT

537-14186-00-00

Unavailable

9

HOSE

88R-14987-00-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

HOSE

89A-14987-00-00

Unavailable

13

. NEEDLE SET

23X-1490J-00-00

Unavailable

14

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

15

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

16

AIR SCREW SET

23X-14104-00-00

Unavailable

17

. TOP, MIXING CHAMBER

5Y9-14158-00-00

Unavailable

18

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-25-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-30-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-35-00

Unavailable

20

. PLUG, SCREW

510-14115-00-00

Unavailable

21

O-RING (541)

558-14147-00-00

Unavailable

22

. STARTER SET

26A-1410A-00-00

Unavailable

23

. WASHER, MAIN JET

5X5-14153-00-00

Unavailable

24

. PLATE

3R4-14146-00-00

Unavailable

25

. SETTER, NEEDLE JET

509-14145-00-00

Unavailable

26

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

Unavailable
