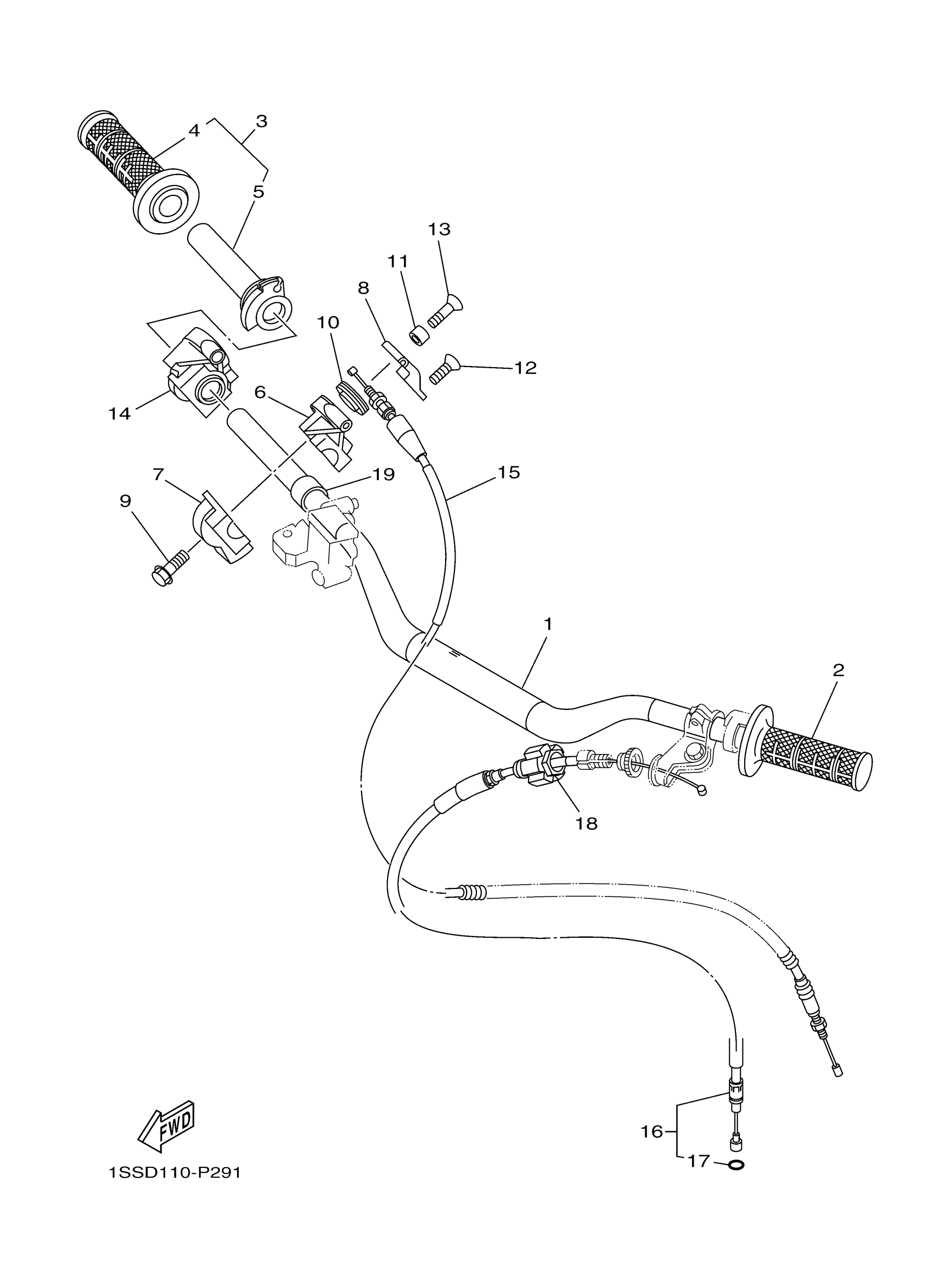

Yamaha YZ250RSE (YZ250 50TH) BCRK 2024 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

BR9-26111-20-00

$180.99

2

GRIP (LEFT)

4GY-26241-00-00

$29.99

3

GRIP ASSY

4XM-26240-00-00

$64.99

4

GRIP (RIGHT)

4GY-26242-00-00

$29.99

5

TUBE, THROTTLE GUIDE

4XM-26243-00-00

$30.99

6

CAP, GRIP UPPER

1C3-26281-90-00

$76.99

7

CAP, GRIP LOWER

1C3-26282-90-00

$50.99

8

CAP, WIRE

1C3-2628H-90-00

$16.49

9

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

10

ROTOR

1C3-26273-90-00

$11.99

11

COLLAR

90387-04003-00

$8.49

12

SCREW, OVAL HEAD

98680-04510-00

$2.13

13

SCREW, OVAL HEAD

98680-04516-00

$1.66

14

COVER, CAP GRIP

4SS-26287-01-00

$20.99

15

CABLE, THROTTLE 1

1P8-26311-90-00

$39.99

16

CABLE, CLUTCH

1SS-26335-00-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable

18

BOOT, CABLE

34P-26342-00-00

Unavailable

19

COLLAR(34X)

90387-227H7-00

Unavailable
