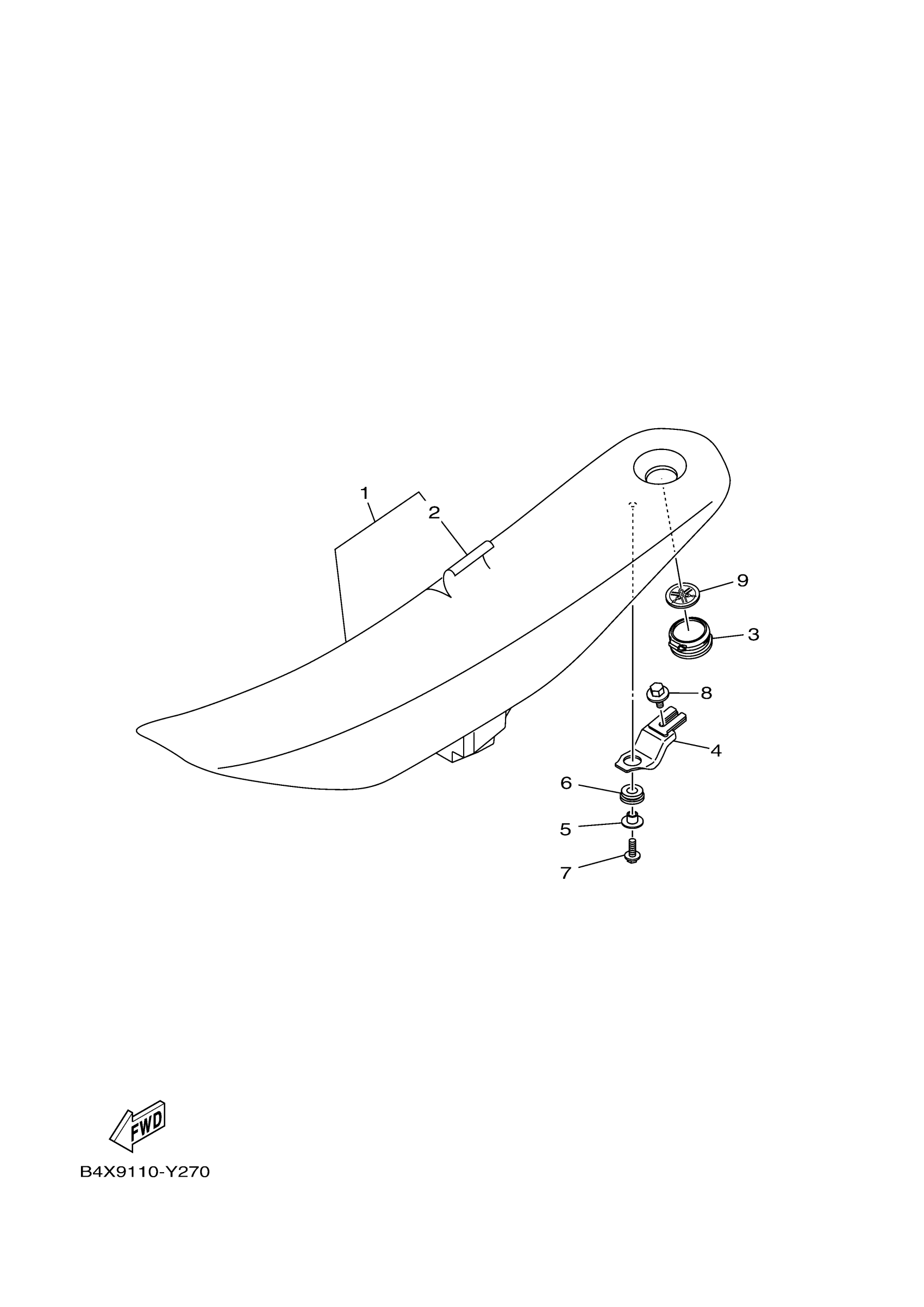

Yamaha YZ250RSE (YZ250 50TH) BCRK 2024 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

BCR-24710-30-00

$167.46

2

SEAT COVER COMP.

BCR-2470F-30-00

$78.94

3

CAP,CASING

BCR-2476M-00-00

$14.44

4

BRACKET, SEAT

BCR-24718-10-00

$22.73

5

COLLAR (4N0)

90387-071E0-00

$5.73

6

GROMMET

90480-16016-00

$5.25

7

BOLT, FLANGE

90105-06170-00

$3.95

8

BOLT, FLANGE

90105-06234-00

$6.52

9

TUNING FORK MARK

4KN-2836B-10-00

$17.89
